Schneider Electric NSYS3CM404020
HMI encl. PanelSeT S3CM. H400xW400xD200IP54 IK10, RAL7035.Rear door.
- MPN
- NSYS3CM404020
- EAN
- 3606480212925
- Category
- PanelSet S3CM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3CM404020?

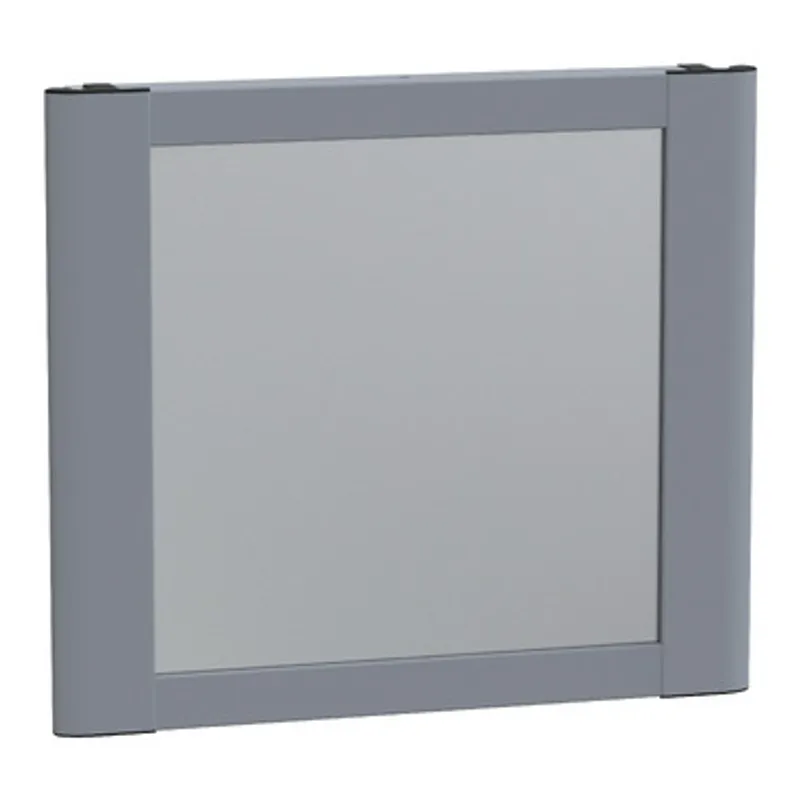

Spacial S3CM suspension system steel enclosure with trim frame aluminium. 400 x 400 x 200 mm. Human-machine dialogue application. Single piece body, without mounting plate included. 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Protection IP 54, IK10, Enclosure grey RAL 7035, front face grey RAL 7040.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3CM |
| Application | Human-machine dialogue application |
| Category | Control enclosure |

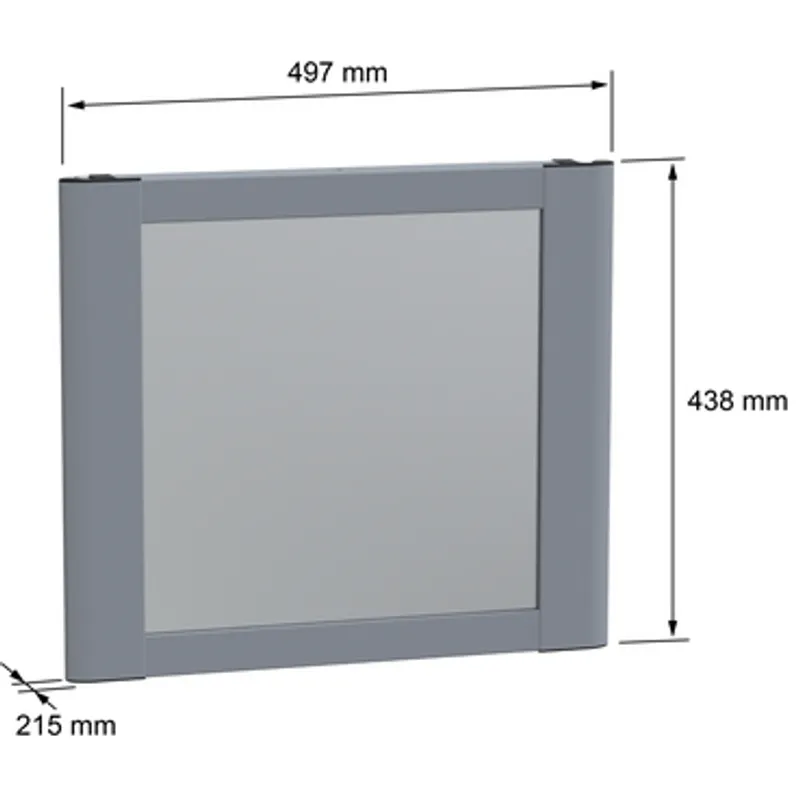

| Enclosure nominal height | 400 mm |
| Enclosure nominal width | 400 mm |
| Enclosure nominal depth | 200 mm |
| Installation accessory type | Suspension system |
| Product destination | Interface |
| Device composition | 1 body, 1 door with lock, 2 rail, 1 reinforcement plate, 1 front trim frame |
| Body type | Single piece body |
| Door type | Plain |
| Number of doors | Rear: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Accessibility for operation | Rear |
| Removable parts | Door by hinges, Trim frame by screws, 2 rails by screws |
| Material | Enclosure and front face: steel, Trim frame: aluminium |
| Surface finish | Epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035), Front face: grey (RAL 7040) |
| Standards | UL |
| Net weight | 10.394 kg |
| IP degree of protection | IP54 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
Packaging
| Package 1 | 1 PCE, 41.500 cm × 22.000 cm × 41.500 cm (L × W × H), 10.160 kg |
| Package 2 | 8 PAM, 120.000 cm × 100.000 cm × 57.000 cm (L × W × H), 96.000 kg |
