Schneider Electric NSYRCKP12
PanelSeT SF/SM partial 19" fixed rack - 600 mm
- MPN
- NSYRCKP12
- EAN
- 3606480066948
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

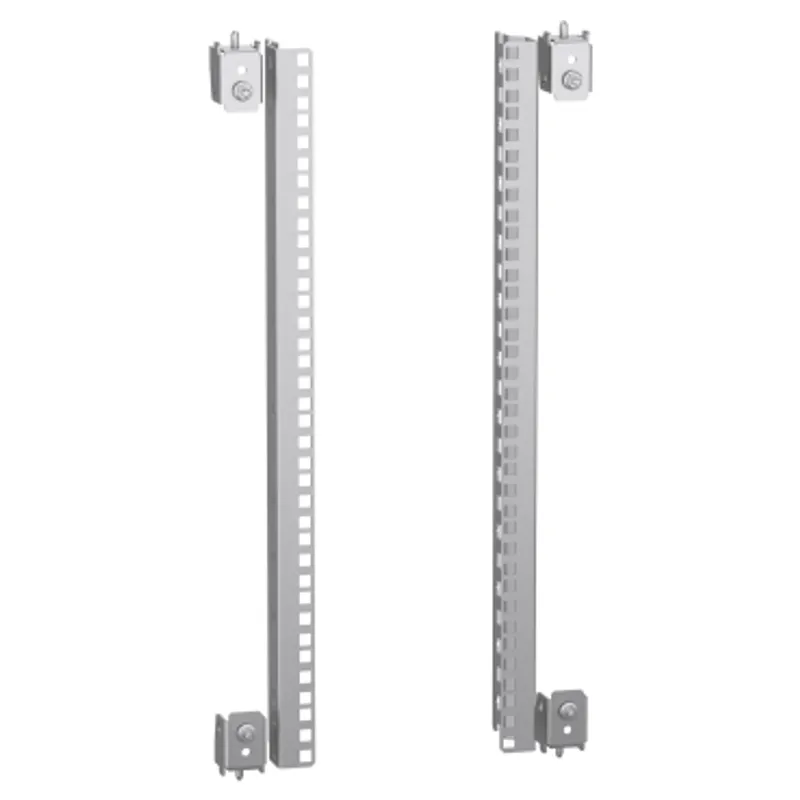

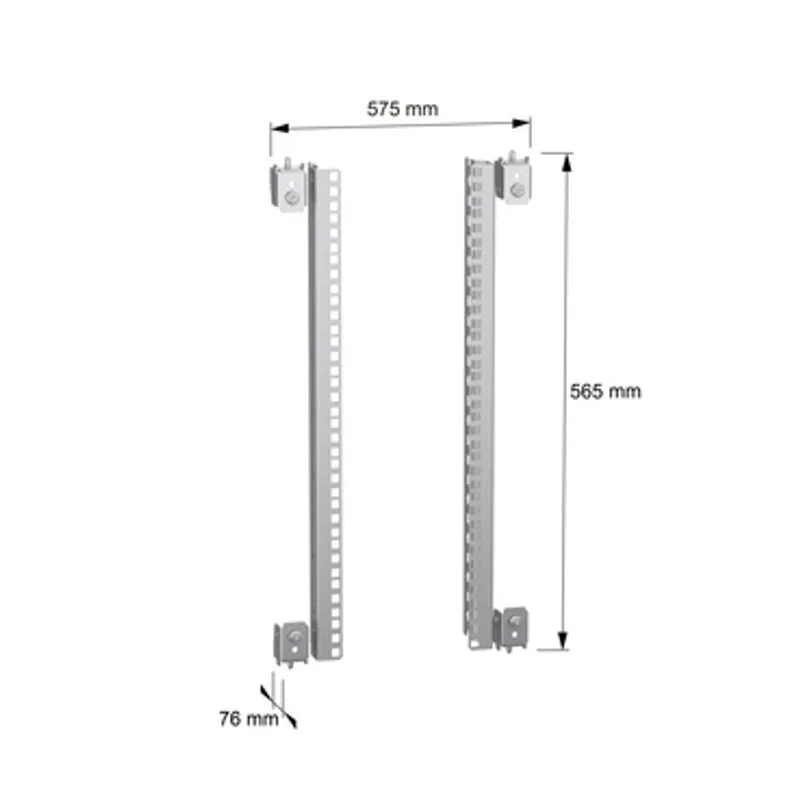

What is the Schneider Electric NSYRCKP12?
Partial fixed racks allow mounting rackable electronic equipment with 19" server racks in PanelSeT SF and PanelSeT SM enclosures The height is 600mm The depth is 60mm Supports mounting of 12 units It is possible to fasten cross rails Depth adjustable in steps of 25mm The kit supplied with fixing elements and 2 uprights The strips are manufactured from steel The product is be mounted on top front of enclosure Anti-corrosion protection is ensured by zinc coating The permanent permissible load is 2kg per unit
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | 19" rack |
| Application | Electronic application |
| For enclosure nominal dimensions | - H: 600 mm |
| Rack type | Fixed |
| Mounting location | Top front of enclosure |
| Mounting support | Cross rails |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM |
| Device composition | Fixing elements, 2 upright |
| Quantity per set | Set of 1 |
| Number of units 19" | 12 |
| Rack coverage | Partial |
| Material | Steel |
| Enclosure/cubicle description | Floor-standing enclosure |
| Surface finish | Zinc coated |
| fixing mode | By fixing element |
| Adjustment | Adjustable in depth every 25 mm |
| Permanent permissible load | 2 kg per unit |
| Height | 600 mm |
| Width | Nominal: 600 mm, Nominal: 800 mm |
| Depth | 60 mm |
Packaging
| Package 1 | 1 PCE, 54.500 cm × 11.000 cm × 5.000 cm (L × W × H), 1.770 kg |
| Package 2 | 20 PAL, 120.000 cm × 37.500 cm × 29.000 cm (L × W × H), 35.400 kg |
