Schneider Electric NSYRCK42

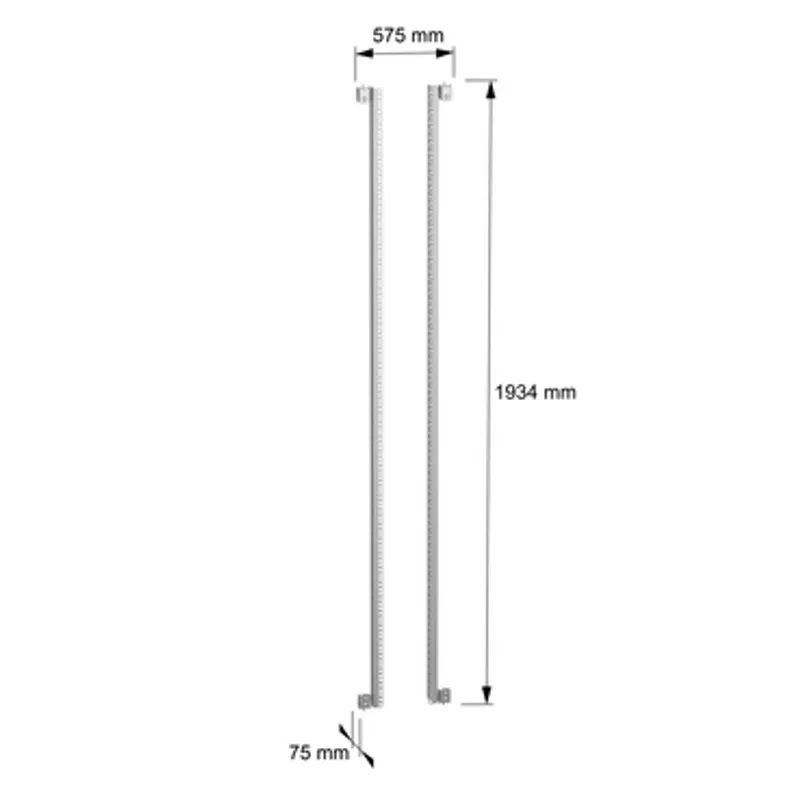

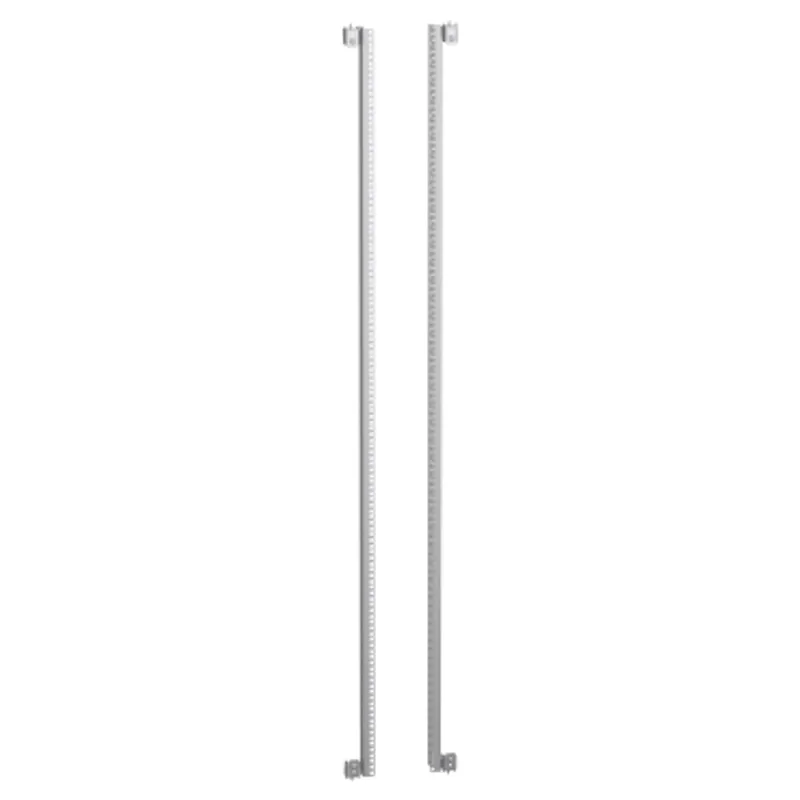

PanelSeT SF/SM 19" fixed rack - 2000 mm
- MPN
- NSYRCK42
- EAN
- 3606480066887
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYRCK42?
Fixed racks allow mounting rackable electronic equipment with 19" server racks in PanelSeT SF 5G, PanelSeT SF and PanelSeT SM enclosures The height is 2000mm The depth is 45mm Supports mounting of 42 units It is possible to fasten 19" fixed support bracket Depth adjustable in steps of 25mm The kit supplied with fixing elements and 2 uprights The strips are manufactured from steel The product is be mounted on structure of enclosure Anti-corrosion protection is ensured by zinc coating The permanent permissible load is 400kg
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | 19" rack |
| Application | Electronic application |
| For enclosure nominal dimensions | - H: 2000 mm |
| Rack type | Fixed |
| Mounting location | On structure of enclosure |
| Mounting support | 19" fixed support bracket |
| Range compatibility | PanelSeT PanelSeT SF 5G, PanelSeT PanelSeT SF, PanelSeT PanelSeT SM |
| Device composition | Fixing elements, 2 upright |
| Quantity per set | Set of 1 |
| Number of units 19" | 42 |
| Rack coverage | Complete |
| Material | Steel |
| Enclosure/cubicle description | Floor-standing enclosure |
| Surface finish | Zinc coated |
| fixing mode | By fixing element |
| Adjustment | Adjustable in depth every 25 mm |
| Permanent permissible load | 400 kg |
| Height | 2000 mm |
| Width | Nominal: 600 mm, Nominal: 800 mm |
| Depth | 45 mm |
Packaging
| Package 1 | 1 PCE, 190.000 cm × 11.500 cm × 6.000 cm (L × W × H), 5.472 kg |
| Package 2 | 40 P2M, 200.000 cm × 120.000 cm × 36.000 cm (L × W × H), 251.000 kg |
