Schneider Electric NSYRCK47
PanelSeT SF 19" fixed rack - 2200 mm
- MPN
- NSYRCK47
- EAN
- 3606480066894
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYRCK47?

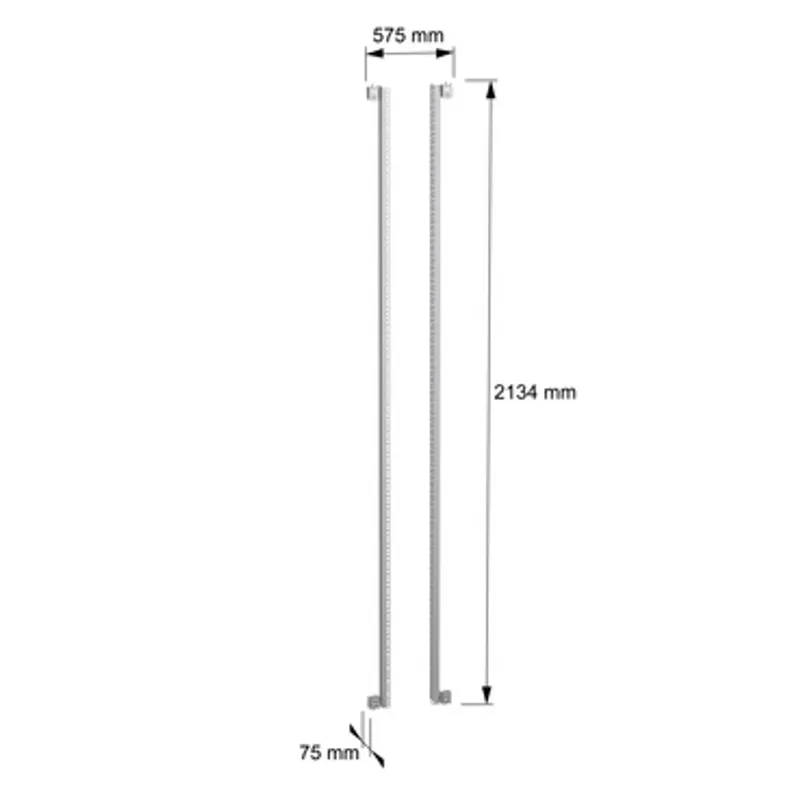

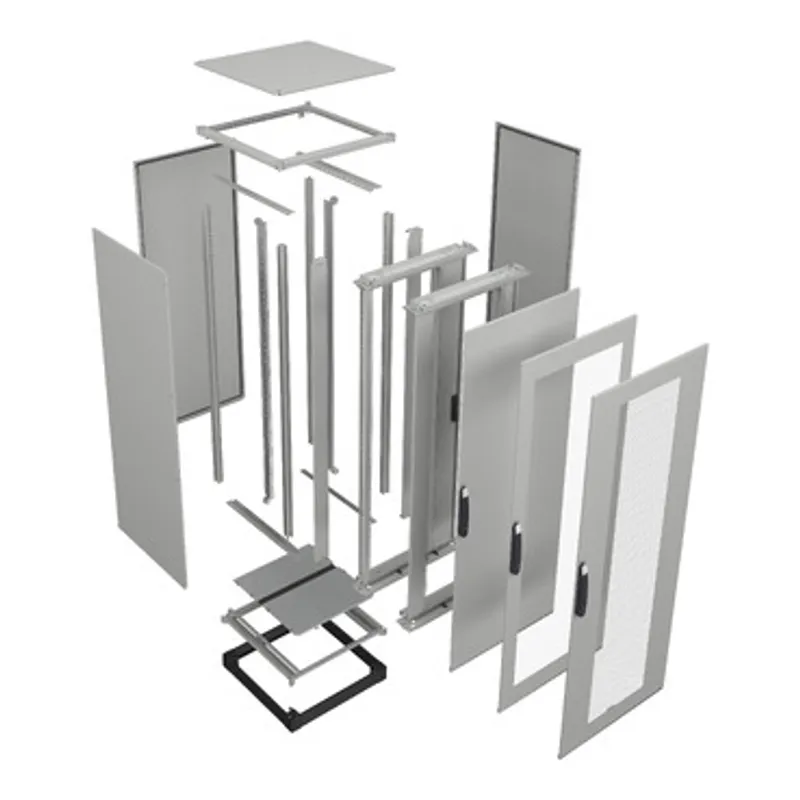

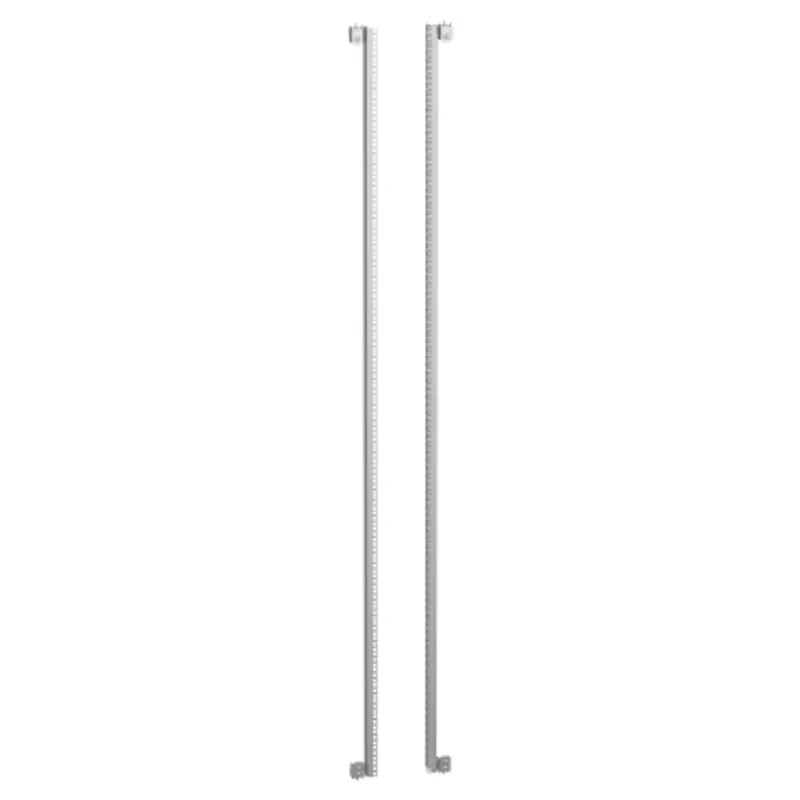

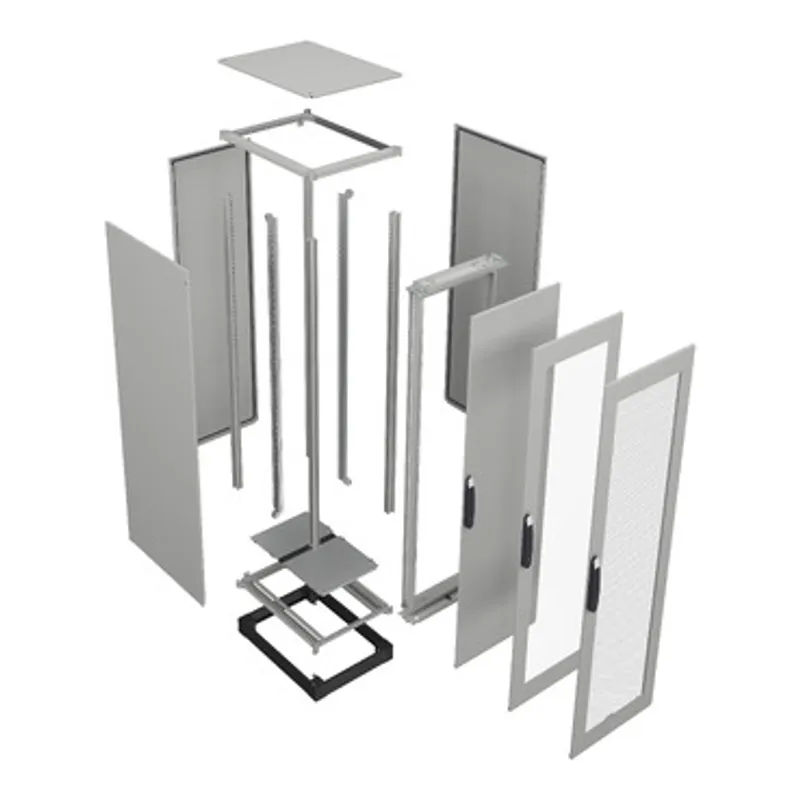

Fixed racks allow mounting rackable electronic equipment with 19" server racks in PanelSeT SF and PanelSeT SM enclosures The height is 2200mm The depth is 45mm Supports mounting of 47 units It is possible to fasten 19" fixed support bracket Depth adjustable in steps of 25mm The kit supplied with fixing elements and 2 uprights The strips are manufactured from steel The product is be mounted on structure of enclosure Anti-corrosion protection is ensured by zinc coating The permanent permissible load is 400kg
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | 19" rack |
| Application | Electronic application |
| For enclosure nominal dimensions | - H: 2200 mm |
| Rack type | Fixed |
| Mounting location | On structure of enclosure |
| Mounting support | 19" fixed support bracket |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM |
| Device composition | Fixing elements, 2 upright |
| Quantity per set | Set of 1 |
| Number of units 19" | 47 |
| Rack coverage | Complete |
| Material | Steel |
| Enclosure/cubicle description | Floor-standing enclosure |
| Surface finish | Zinc coated |
| fixing mode | By fixing element |
| Adjustment | Adjustable in depth every 25 mm |
| Permanent permissible load | 400 kg |
| Height | 2200 mm |
| Width | Nominal: 800 mm, Nominal: 600 mm |
| Depth | 45 mm |
Packaging
| Package 1 | 1 PCE, 4.500 cm × 11.000 cm × 210.000 cm (L × W × H), 5.000 kg |
| Package 2 | 42 PAL, 120.000 cm × 210.000 cm × 40.000 cm (L × W × H), 244.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYRCK47: frequently asked questions
When can NSYRCK47 be shipped?
NSYRCK47 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYRCK47 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYRCK47 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYRCK47, subject to availability and destination.
