Schneider Electric NSYPMB75

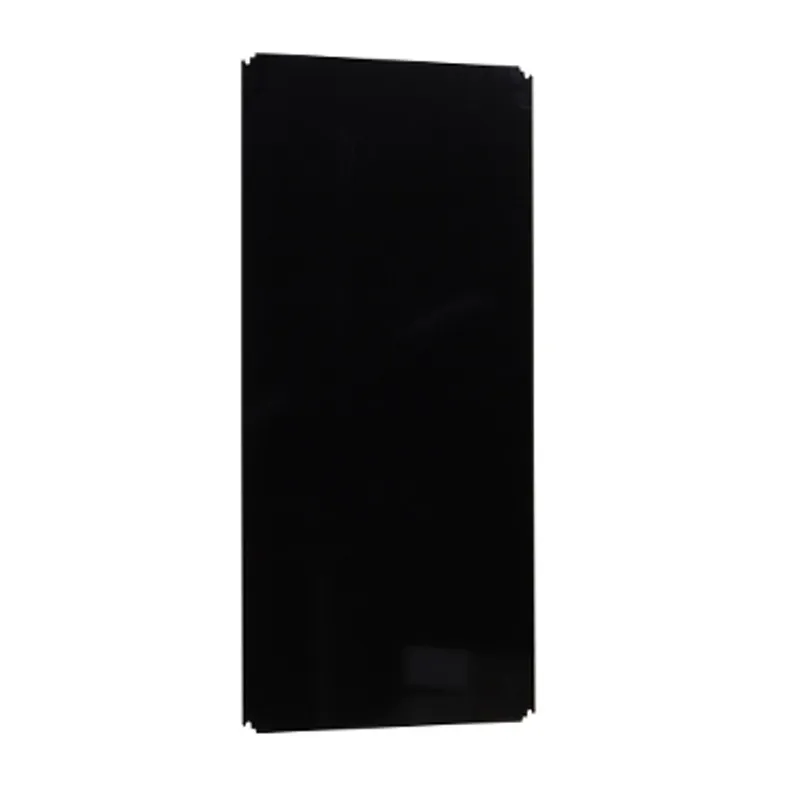

Bakelite insulating mounting plate for PLA enclosure H500xW750mm or H750xW500mm
- MPN
- NSYPMB75
- EAN
- 3606480194108
- Category
- PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYPMB75?
Thalassa PLA Bakelite insulating mounting plate. For enclosure H is500 x W is750 mm. Step slides mounting location or on back inserts location (fixing by screw type M8). 150 Kg permanent permissible load. Bakelite material. Black RAL 9005. Can be installed in enclosure with inverted dimensions.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - |
| Mounting location | Back inserts, Step slide |
| Mounting plate description | Insulating |
| Range compatibility | PanelSeT PLA |
| Device composition | 1 mounting plate |
| Material | Bakelite |
| Colour | Black (RAL 9005) |
| Fixing mode | By screws - screw type M8 - on back inserts location |
| Permanent permissible load | 150 kg |
| Height | Nominal: 750 mm, Real: 640 mm |
| Width | Nominal: 500 mm, Real: 375 mm |
| Depth | Real : 125 mm |
| thickness | 4 mm |
Packaging
| Package 1 | 1 PCE, 64.500 cm × 37.500 cm × 1.000 cm (L × W × H), 1.862 kg |
| Package 2 | 200 PAM, 120.000 cm × 100.000 cm × 45.000 cm (L × W × H), 372.400 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYPMB75: frequently asked questions
When can NSYPMB75 be shipped?
NSYPMB75 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYPMB75 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYPMB75 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPMB75, subject to availability and destination.
