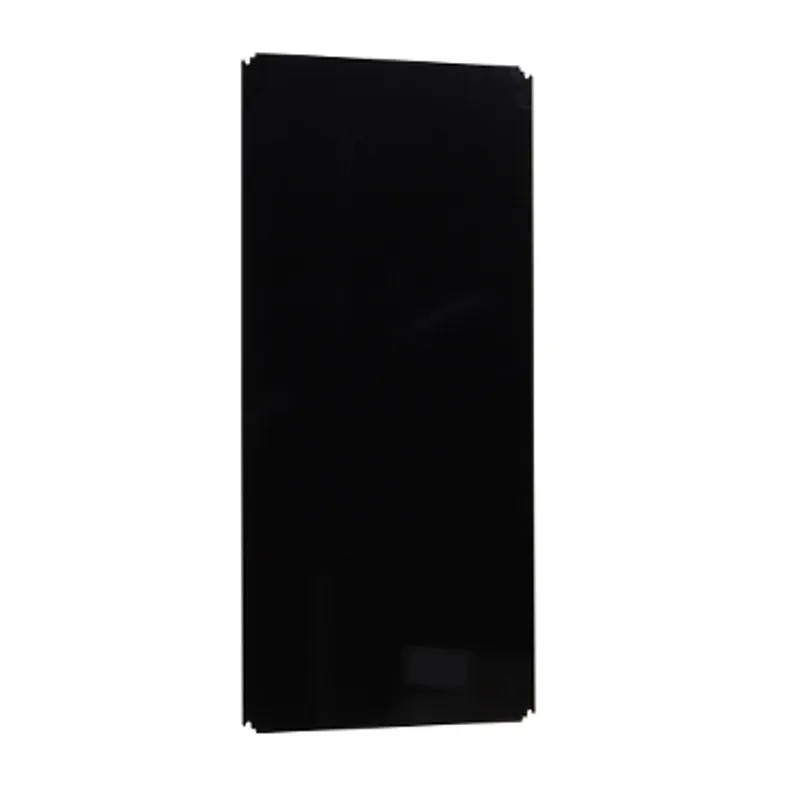

Schneider Electric NSYPMB77
Bakelite insulating mounting plate for PLA enclosure H750xW750mm
- MPN
- NSYPMB77
- EAN
- 3606480194122
- Category
- PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYPMB77?
Thalassa PLA Bakelite insulating mounting plate. For enclosure H is750 x W is750 mm. Step slides mounting location or on back inserts location (fixing by screw type M8). 150 Kg permanent permissible load. Bakelite material. Black RAL 9005.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - |
| Mounting location | Back inserts, Step slide |
| Mounting plate description | Insulating |
| Range compatibility | PanelSeT PLA |
| Device composition | 1 mounting plate |
| Material | Bakelite |
| Colour | Black (RAL 9005) |
| Fixing mode | By screws - screw type M8 - on back inserts location |
| Permanent permissible load | 150 kg |
| Height | Nominal: 750 mm, Real: 640 mm |
| Width | Nominal: 750 mm, Real: 625 mm |
| Depth | Real : 125 mm |
| thickness | 5 mm |
Packaging
| Package 1 | 1 PCE, 64.000 cm × 63.000 cm × 1.000 cm (L × W × H), 2.938 kg |
| Package 2 | 30 PAM, 120.000 cm × 100.000 cm × 51.000 cm (L × W × H), 101.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYPMB77: frequently asked questions
When can NSYPMB77 be shipped?
NSYPMB77 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYPMB77 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYPMB77 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPMB77, subject to availability and destination.
