Schneider Electric NSYPMB510

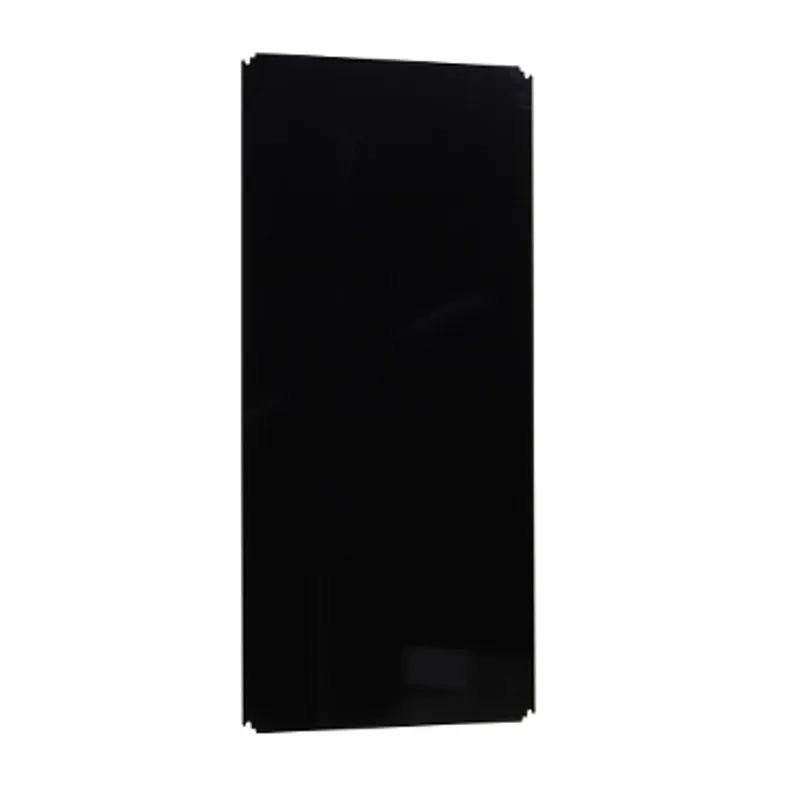

Bakelite insulating mounting plate for PLA enclosure H500xW1000mm

MPN
NSYPMB510
EAN
3606480194115
Category
PanelSeT PLA
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original NSYPMB510 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPMB510?

Schneider Electric Bakelite insulating mounting plate for PLA enclosure H500xW1000mm, manufacturer part number NSYPMB510. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

RangePanelSeT
Accessory / separate part categoryMounting accessory
Product or component typeMounting plate
Device applicationMulti-purpose
Enclosure nominal dimensions-
Mounting locationBack inserts, Step slide
Mounting plate descriptionInsulating
Range compatibilityPanelSeT PLA
Device composition1 mounting plate
MaterialBakelite
ColourBlack (RAL 9005)
Fixing modeBy screws - screw type M8 - on back inserts location
Permanent permissible load150 kg
HeightNominal: 500 mm, Real: 390 mm
WidthNominal: 1000 mm, Real: 875 mm
DepthReal : 125 mm
thickness5 mm

Packaging

Package 11 PCE, 88.000 cm × 40.500 cm × 0.700 cm (L × W × H), 2.446 kg
Package 250 PAM, 120.000 cm × 100.000 cm × 40.000 cm (L × W × H), 135.300 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYPMB510: frequently asked questions

Can I still buy the NSYPMB510 now that it is discontinued?

Yes. Schneider Electric has discontinued the NSYPMB510, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can NSYPMB510 be shipped?

NSYPMB510 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYPMB510 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYPMB510 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPMB510, subject to availability and destination.
