Schneider Electric NSYPMB1012

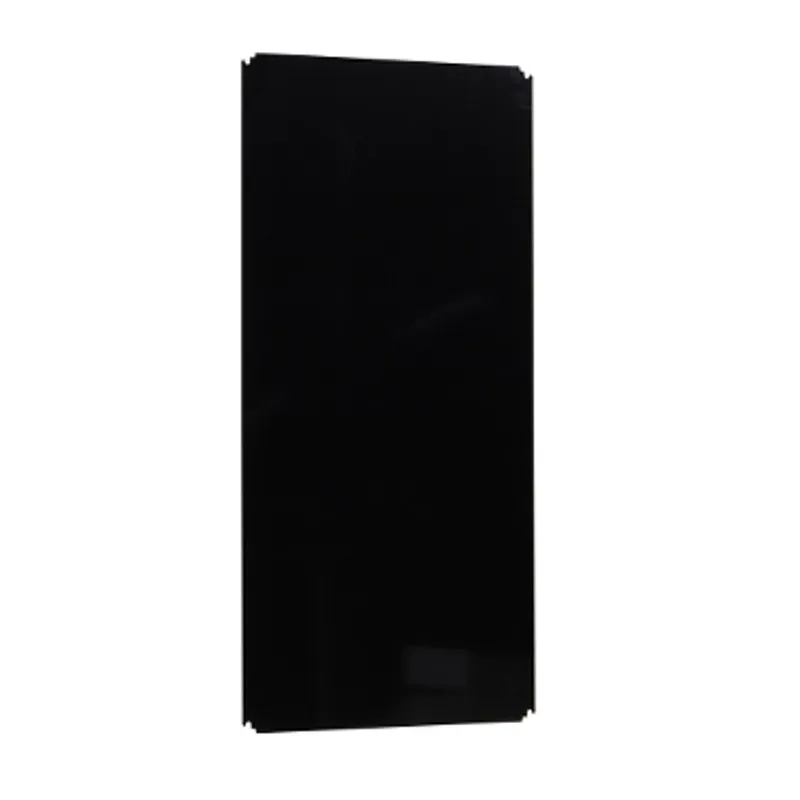

Bakelite insulating mounting plate for PLA enclosure H1000xW1250mm

MPN
NSYPMB1012
EAN
3606480194184
Category
PanelSeT PLA
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original NSYPMB1012 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPMB1012?

Schneider Electric Bakelite insulating mounting plate for PLA enclosure H1000xW1250mm, manufacturer part number NSYPMB1012. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

RangePanelSeT
Accessory / separate part categoryMounting accessory
Product or component typeMounting plate
Device applicationMulti-purpose
Enclosure nominal dimensions-
Mounting locationStep slide, Back inserts
Mounting plate descriptionInsulating
Range compatibilityPanelSeT PLA
Device composition1 mounting plate
MaterialBakelite
ColourBlack (RAL 9005)
Fixing modeBy screws - screw type M8 - on back inserts location
Permanent permissible load150 kg
HeightNominal: 1000 mm, Real: 890 mm
WidthNominal: 1250 mm, Real: 1125 mm
DepthReal : 125 mm
thickness5 mm

Packaging

Package 11 PCE, 113.000 cm × 90.000 cm × 0.500 cm (L × W × H), 7.974 kg
Package 210 P2M, 200.000 cm × 120.000 cm × 30.000 cm (L × W × H), 112.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYPMB1012: frequently asked questions

Can I still buy the NSYPMB1012 now that it is discontinued?

Yes. Schneider Electric has discontinued the NSYPMB1012, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can NSYPMB1012 be shipped?

NSYPMB1012 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYPMB1012 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYPMB1012 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPMB1012, subject to availability and destination.
