Schneider Electric NSYPMA75

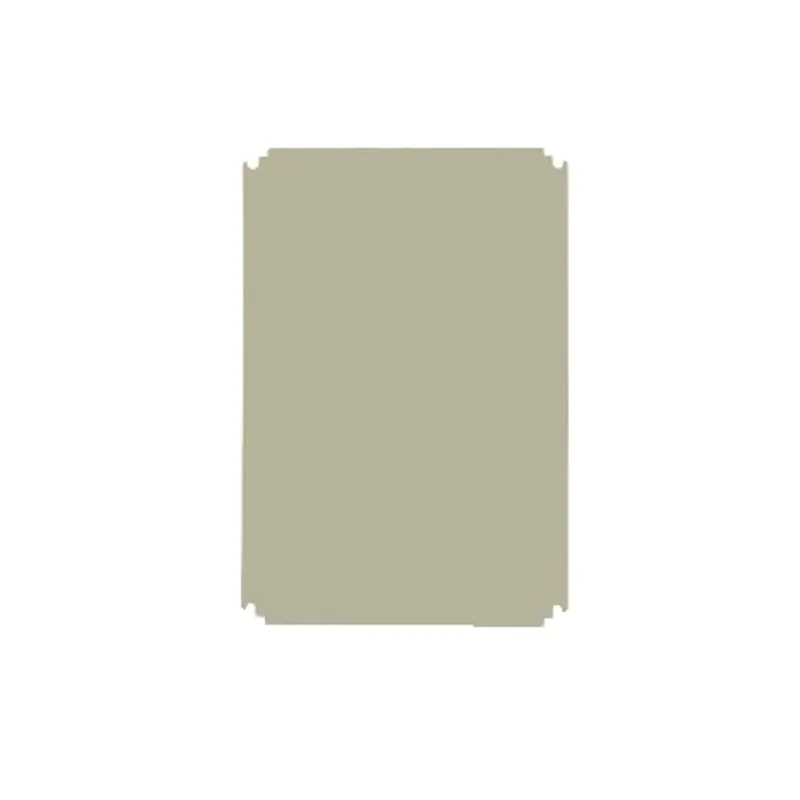

Polyester insulating mounting plate for PLA enclosure H500xW750mm or H750xW500mm

MPN
NSYPMA75
EAN
3606480193965
Category
PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPMA75?

Schneider Electric Polyester insulating mounting plate for PLA enclosure H500xW750mm or H750xW500mm, manufacturer part number NSYPMA75. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

RangePanelSeT
Accessory / separate part categoryMounting accessory
Product or component typeMounting plate
Device applicationMulti-purpose
Enclosure nominal dimensions-
Mounting locationBack inserts, Step slide
Mounting plate descriptionInsulating
Range compatibilityPanelSeT PLA
Device composition1 mounting plate
MaterialPolyester
ColourGrey (RAL 7035)
Fixing modeBy screws - screw type M8 - on back inserts location
Permanent permissible load150 kg
HeightNominal: 750 mm, Real: 640 mm
WidthNominal: 500 mm, Real: 375 mm
DepthReal : 125 mm
thickness4 mm

Packaging

Package 11 PCE, 63.000 cm × 37.500 cm × 0.500 cm (L × W × H), 1.716 kg
Package 2150 PAM, 120.000 cm × 100.000 cm × 50.000 cm (L × W × H), 268.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYPMA75: frequently asked questions

When can NSYPMA75 be shipped?

NSYPMA75 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYPMA75 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYPMA75 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPMA75, subject to availability and destination.
