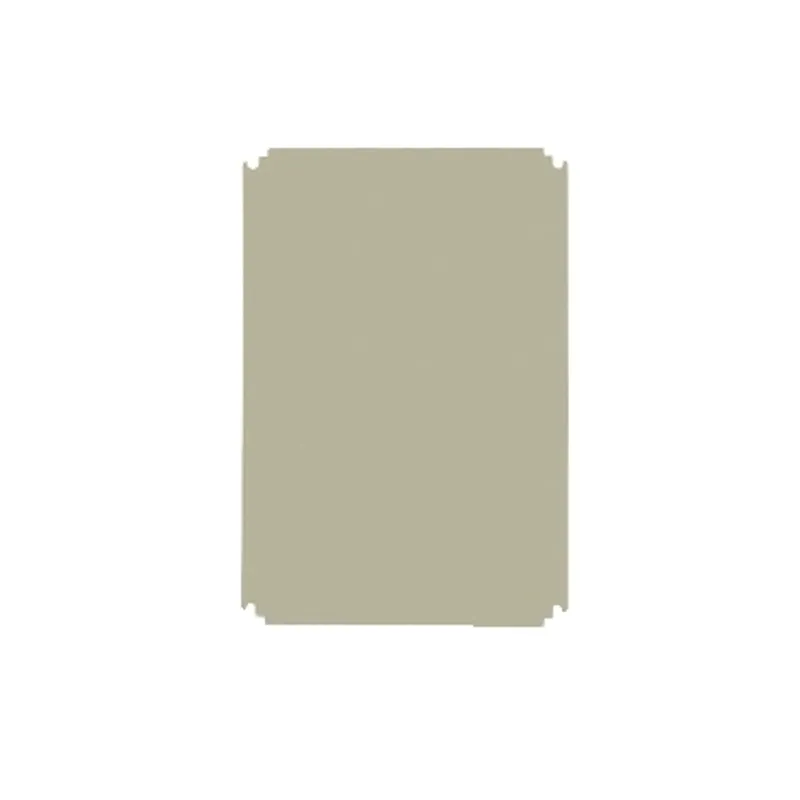

Schneider Electric NSYPMA77

Polyester insulating mounting plate for PLA enclosure H750xW750mm

MPN
NSYPMA77
EAN
3606480193989
Category
PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPMA77?

Thalassa PLA polyester insulating mounting plate. For enclosure H is750 x W is750 mm. Step slides mounting location or on back inserts location (fixing by screw type M8). 150 Kg permanent permissible load. Polyester made. Grey RAL 7035.

Specifications

Specifications

RangePanelSeT
Accessory / separate part categoryMounting accessory
Product or component typeMounting plate
Device applicationMulti-purpose
Enclosure nominal dimensions-
Mounting locationBack inserts, Step slide
Mounting plate descriptionInsulating
Range compatibilityPanelSeT PLA
Device composition1 mounting plate
MaterialPolyester
ColourGrey (RAL 7035)
Fixing modeBy screws - screw type M8 - on back inserts location
Permanent permissible load150 kg
HeightNominal: 750 mm, Real: 640 mm
WidthNominal: 750 mm, Real: 625 mm
DepthReal : 125 mm
thickness5 mm

Packaging

Package 11 PCE, 63.000 cm × 62.500 cm × 0.600 cm (L × W × H), 3.352 kg
Package 230 PAM, 120.000 cm × 100.000 cm × 40.000 cm (L × W × H), 115.000 kg
