Discontinued by Schneider Electric — we can still source the original NSYPLAZT12123G (new, used or refurbished, subject to availability). Request a quote below.

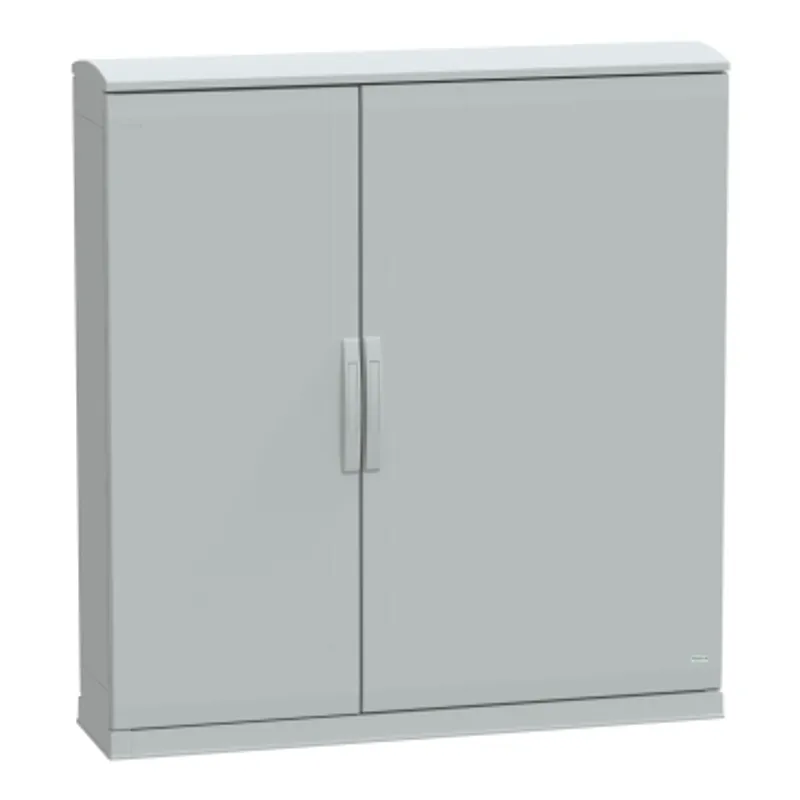

This PLAZT version of the PLA is a versatile, floor-standing enclosure that is suitable for various applications It has a nominal size of 1250mm in height, 1250mm in width, and 320mm in depth The enclosure is made of polyester reinforced with fiberglass, providing it with strength and resistance to harsh environments, both indoor and outdoor It is available in grey (RAL 7035) color and comprises two side parts, two plain front doors, two rear panels, one canopy, and one plinth The doors can be opened from both the right and left sides, up to 180°, and feature a four-point lock with a handle that has a 5mm double-bar insert The doors, rear panels, and canopy are removable for maintenance purposes The enclosure offers robust protection against various hazards, including fire, impact, dust, and water It can withstand fire up to 960°C in accordance with the IEC 62208 standard The enclosure also has an IK10 rating (IEC 62262), indicating high resistance to impacts It is rated IP44 (IEC 60529), offering high protection against dust and water Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance
| Range | PanelSeT |
| Product name | PanelSeT PLA |
| Enclosure type | Multi-purpose |
| Product or component type | Suitable enclosure |
| Version | PLAZT |
| Nominal height | 1250 mm |
| Nominal width | 1250 mm |
| Nominal depth | 320 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 top part, 1 bottom part, 2 side part, 2 door, 2 rear panel, 1 canopy, 1 plinth |
| Body type | Open top and bottom part assembled with side parts |
| Door type | Plain front |
| Number of doors | 2 door(s) |
| Door opening side | Right and left (180 °) |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Accessibility for operation | Bottom, Front, Rear, Top |
| Removable parts | Door by hinges, Rear panel by fixing element, Canopy by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | Veritas |
| Electrical insulation class | Class II |
| IP degree of protection | IP44 conforming to IEC 60529 (with plinth type open bottom part and ventilated canopy) |
| IK degree of protection | IK10 conforming to IEC 62262 (plain door) |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for storage | -35…90 °C |
| Package 1 | 1 PCE, 134.000 cm × 127.000 cm × 40.000 cm (L × W × H), 63.000 kg |
| Package 2 | 2 PAL, 127.000 cm × 100.000 cm × 153.000 cm (L × W × H), 138.000 kg |
No matching specifications
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Yes. Schneider Electric has discontinued the NSYPLAZT12123G, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
NSYPLAZT12123G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Yes — mention it when you request a quote for NSYPLAZT12123G and we'll include express shipping options in our reply.
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLAZT12123G, subject to availability and destination.
