Schneider Electric NSYPLAZT1073G

Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1000x750x320mm, IP44, IK10

MPN
NSYPLAZT1073G
EAN
3606480776014
Category
PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPLAZT1073G?

"This PLAZT version of the PLA is a versatile, floor-standing enclosure that is suitable for various applications" "The enclosure measures 1000mm in height, 750mm in width, and 320mm in depth, and is made of polyester reinforced with fiberglass" "This material provides the enclosure with durability and resistance to harsh environments, both indoor and outdoor" "The enclosure is available in grey (RAL 7035) color and comprises two side parts, one plain front door, one rear panel, and one canopy" "The front door is designed to open up to 180° from either the right or left side, providing easy access to the equipment inside" "The door features a four-point lock with a handle that has a 5mm double-bar insert" "The rear panel and door can be removed for maintenance purposes, and the canopy can also be removed by fixing elements to provide access to the top of the enclosure" "The enclosure can withstand fire up to 960°C, in accordance with the IEC 62208 standard" "It is highly resistant to impacts, with an IK10 rating according to IEC 62262, and provides excellent protection against dust and water, with an IP44 rating as per IEC 60529" "Furthermore, the enclosure has Class II electrical insulation, which prevents electric shocks and allows for the construction of completely insulated solutions" "The enclosure is UL certified and can be stored in ambient air temperatures ranging from -35 to 90°C without affecting its performance"

Specifications

Specifications

RangePanelSeT
Product namePanelSeT PLA
Enclosure typeMulti-purpose
Product or component typeSuitable enclosure
VersionPLAZT
Nominal height1000 mm
Nominal width750 mm
Nominal depth320 mm
Enclosure mountingFloor-standing
Device composition1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door, 1 canopy, 1 plinth
Body typeOpen top and bottom part assembled with side parts
Door typePlain front
Number of doors1 door(s)
Door opening sideReversible (180 °)
Lock type4 points lock, handle with 5 mm double bar insert
Accessibility for operationFront, Top, Bottom, Rear
Removable partsDoor by hinges, Rear panel by fixing element, Canopy by fixing element
MaterialPolyester reinforced with fibreglass
ColourGrey (RAL 7035)
StandardsIEC 62208
Product certificationsVeritas
Electrical insulation classClass II
IP degree of protectionIP44 conforming to IEC 60529 (with plinth type open bottom part and ventilated canopy)
IK degree of protectionIK10 conforming to IEC 62262 (plain door)
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for storage-35…90 °C

Packaging

Package 11 PCE, 109.000 cm × 78.000 cm × 37.500 cm (L × W × H), 31.300 kg
Package 23 PAM, 120.000 cm × 100.000 cm × 122.000 cm (L × W × H), 107.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYPLAZT1073G: frequently asked questions

When can NSYPLAZT1073G be shipped?

NSYPLAZT1073G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYPLAZT1073G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYPLAZT1073G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLAZT1073G, subject to availability and destination.

More Schneider Electric parts

Schneider Electric NSYPLAZT10123G – Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1000x1250x320mm, IP44, IK10
Schneider Electric
NSYPLAZT10123G

Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1000x1250x320mm, IP44, IK10

Schneider Electric NSYPLAZT10124G – Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1000x1250x420mm, IP44, IK10
Schneider Electric
NSYPLAZT10124G

Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1000x1250x420mm, IP44, IK10

Schneider Electric NSYPLAZT1053G – Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1000x500x320mm, IP44, IK10
Schneider Electric
NSYPLAZT1053G

Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1000x500x320mm, IP44, IK10

Schneider Electric NSYPLAZT1054G – Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1000x500x420mm, IP44, IK10
Schneider Electric
NSYPLAZT1054G

Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1000x500x420mm, IP44, IK10

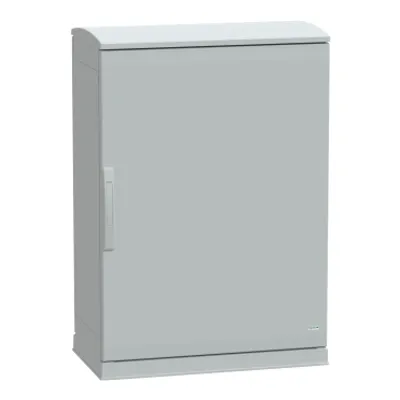

Schneider Electric NSYPLAZT1074G – Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1000x750x420mm, IP44, IK10
Schneider Electric
NSYPLAZT1074G

Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1000x750x420mm, IP44, IK10

Schneider Electric NSYPLAZT12103G – Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1250x1000x320mm, IP44, IK10
Schneider Electric
NSYPLAZT12103G

Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1250x1000x320mm, IP44, IK10

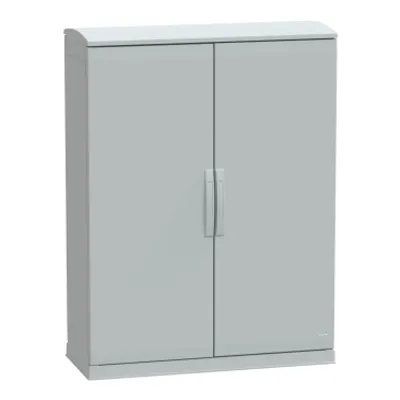

Schneider Electric NSYPLAZT12104G – Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1250x1000x420mm, IP44, IK10
Schneider Electric
NSYPLAZT12104G

Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1250x1000x420mm, IP44, IK10

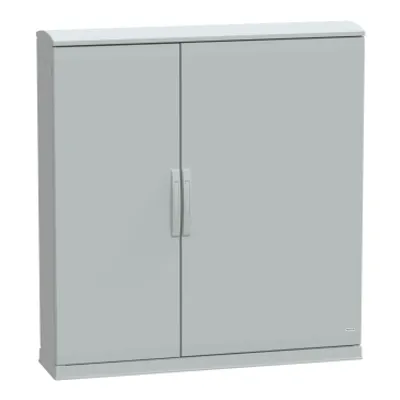

Schneider Electric NSYPLAZT12123G – Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1250x1250x320mm, IP44, IK10
