Schneider Electric NSYPLAZT12104G

Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1250x1000x420mm, IP44, IK10

MPN
NSYPLAZT12104G
EAN
3606480776045
Category
PanelSeT PLA
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original NSYPLAZT12104G (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPLAZT12104G?

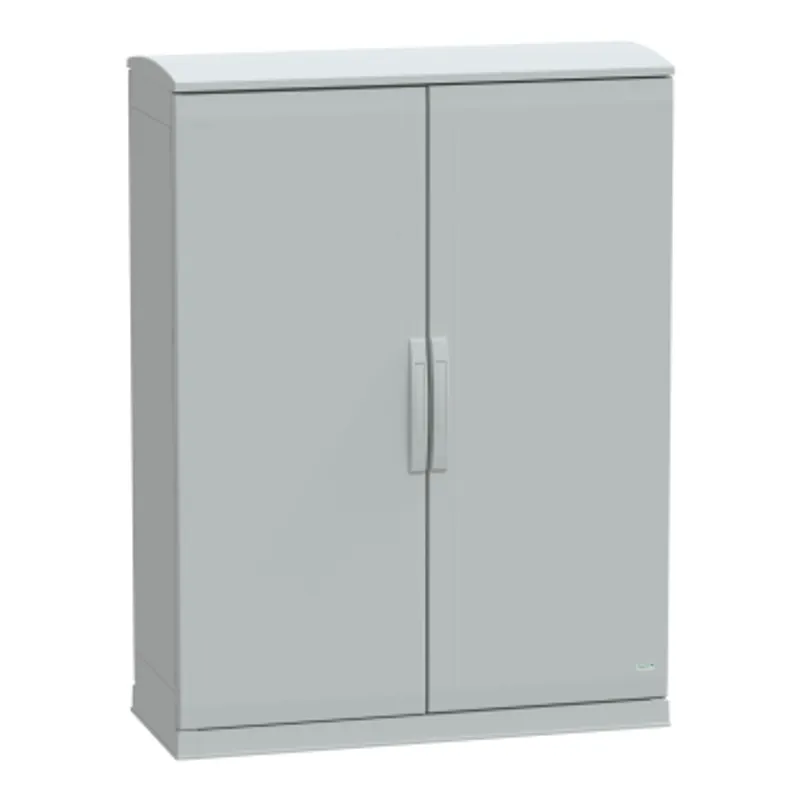

This PLAZT version of the PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications The enclosure has a nominal height of 1250mm, a width of 1000mm, and a depth of 420mm It is made of polyester reinforced with fiberglass, offering durability and resistance to harsh environments, both indoor and outdoor The enclosure is available in grey (RAL 7035) color and consists of two side parts, two plain front doors, two rear panels, one canopy, and one plinth The doors can be opened from both the right and left sides, up to 180°, and feature a four-point lock with a handle that has a 5mm double-bar insert The doors, rear panels, and canopy can be removed for maintenance purposes

Specifications

Specifications

RangePanelSeT
Product namePanelSeT PLA
Enclosure typeMulti-purpose
Product or component typeSuitable enclosure
VersionPLAZT
Nominal height1250 mm
Nominal width1000 mm
Nominal depth420 mm
Enclosure mountingFloor-standing
Device composition1 top part, 1 bottom part, 2 side part, 2 door, 2 rear panel, 1 canopy, 1 plinth
Body typeOpen top and bottom part assembled with side parts
Door typePlain front
Number of doors2 door(s)
Door opening sideRight and left (180 °)
Lock type4 points lock, handle with 5 mm double bar insert
Accessibility for operationRear, Bottom, Front, Top
Removable partsDoor by hinges, Rear panel by fixing element, Canopy by fixing element
MaterialPolyester reinforced with fibreglass
ColourGrey (RAL 7035)
StandardsIEC 62208
Product certificationsVeritas
Electrical insulation classClass II
IP degree of protectionIP44 conforming to IEC 60529 (with plinth type open bottom part and ventilated canopy)
IK degree of protectionIK10 conforming to IEC 62262 (plain door)
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for storage-35…90 °C

Packaging

Package 11 PCE, 134.000 cm × 104.000 cm × 48.000 cm (L × W × H), 60.500 kg
Package 22 PAL, 120.000 cm × 104.000 cm × 151.000 cm (L × W × H), 141.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYPLAZT12104G: frequently asked questions

Can I still buy the NSYPLAZT12104G now that it is discontinued?

Yes. Schneider Electric has discontinued the NSYPLAZT12104G, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can NSYPLAZT12104G be shipped?

NSYPLAZT12104G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYPLAZT12104G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYPLAZT12104G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLAZT12104G, subject to availability and destination.
