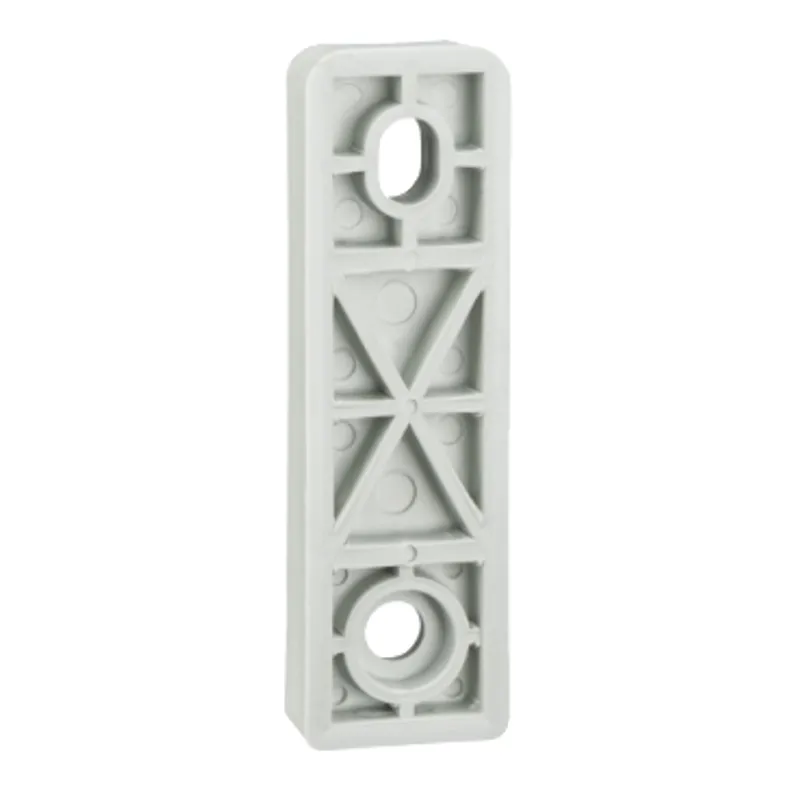

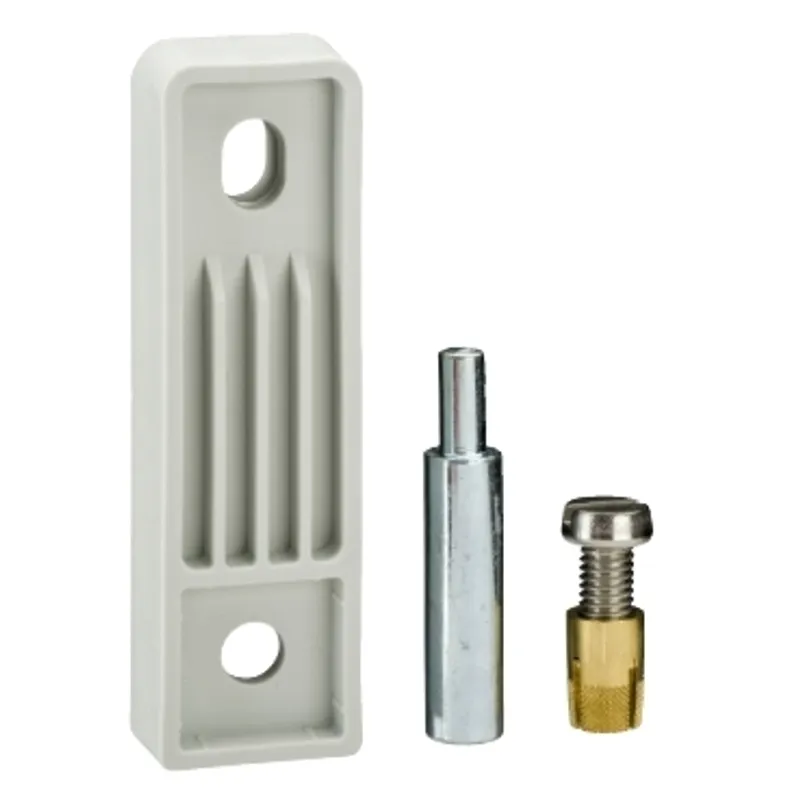

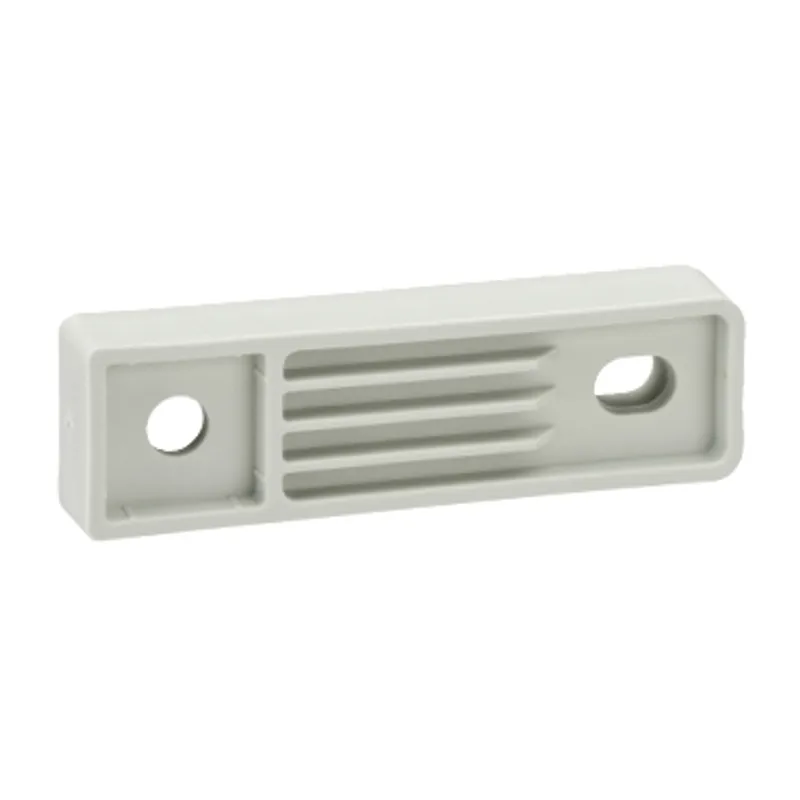

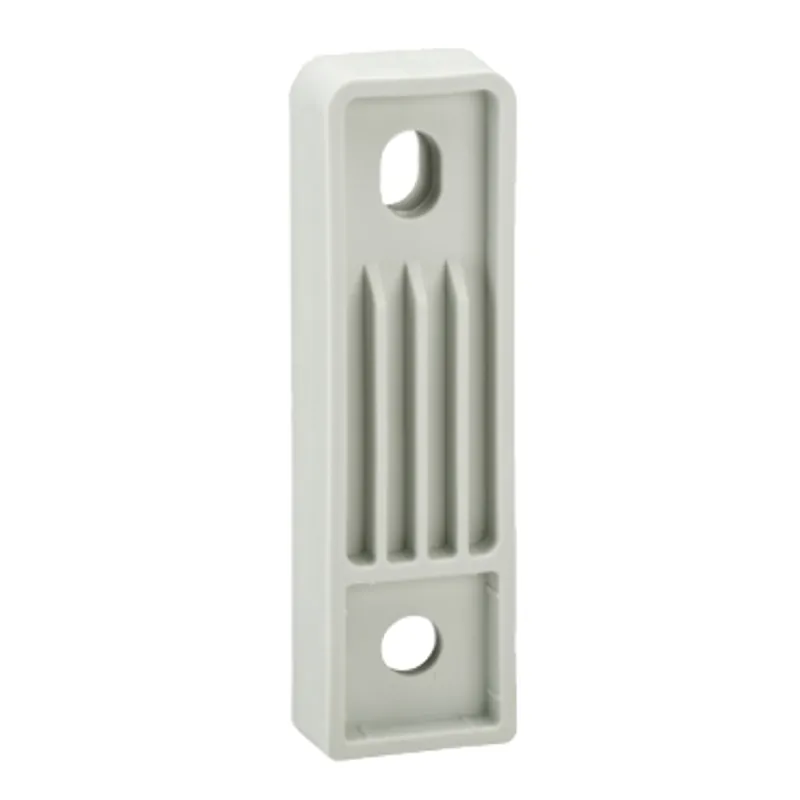

Schneider Electric NSYPFPLMG
Set of 4 polyamid wall mounting lugs for PLM3025 to 108
- MPN
- NSYPFPLMG
- EAN
- 3606480774331
- Category
- PanelSeT PLM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYPFPLMG?
Set of 4 polyamide wall mounting lugs for Thalassa PLM3025, PLM43, PLM54, PLM64, PLM75, PLM86 and PLM108. This accessory have multi-purpose application : top, bottom and rear mounting are possible. Permanent permissible load is 200 kg in vertical position and 100 kg in horizontal position. The lugs are made from polyamide 6 with 30 % fiber glass. This product is qualified as a green premium, with minimal use of hazardous substances. The color is grey RAL 7035. Fixings are delivered with the lugs.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Fixing accessory |
| Product or component type | Wall fixing support |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - |
| Mounting location | Top and bottom, on rear of the enclosure |
| Range compatibility | PanelSeT PLM |
| Device composition | Fixing screws, 4 lug |
| Material | Polyamide 6 with 30 % fibre glass |
| Colour | Grey (RAL 7035) |
| Fixing mode | Screwed - from the outside location |
| Permanent permissible load | 100 kg horizontal position, 200 kg vertical position |
| Height | 308 mm, 430 mm, 530 mm, 647 mm, 747 mm, 847 mm, 1056 mm |
| Width | 255 mm, 330 mm, 430 mm, 436 mm, 536 mm, 636 mm, 852 mm |
Packaging
| Package 1 | 1 PCE, 12.000 cm × 10.000 cm × 3.000 cm (L × W × H), 226.000 g |
| Package 2 | 75 CAR, 52.000 cm × 31.000 cm × 36.000 cm (L × W × H), 17.000 kg |
| Package 3 | 900 P12, 120.000 cm × 80.000 cm × 85.000 cm (L × W × H), 220.000 kg |
