Schneider Electric NSYPFPLM32G
Set of 4 polyamid wall mounting lugs for PLM32
- MPN
- NSYPFPLM32G
- EAN
- 3606480774348
- Category
- PanelSeT PLM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYPFPLM32G?

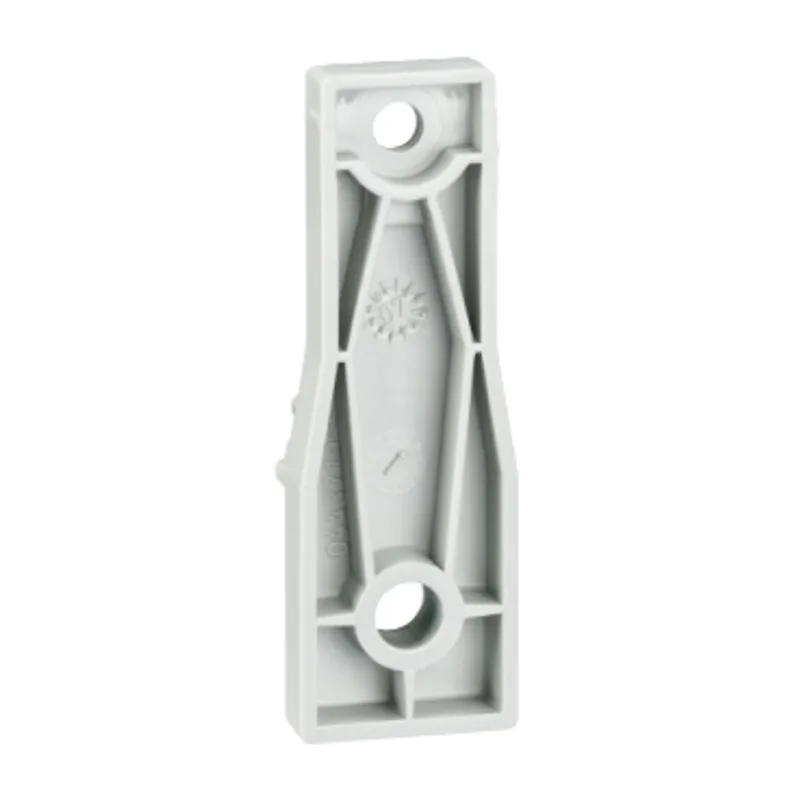

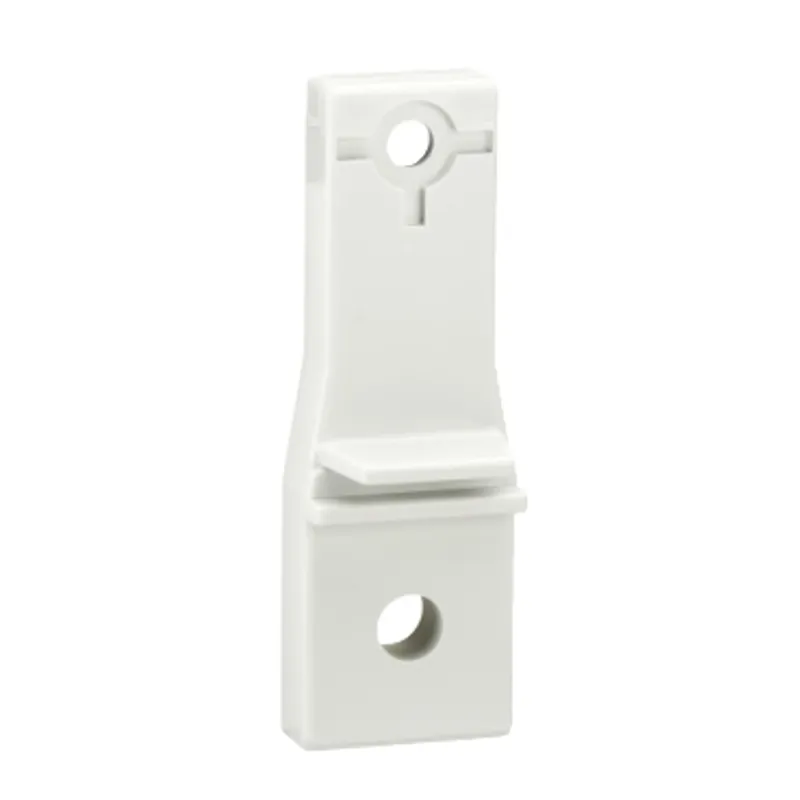

Set of 4 polyamide wall mounting lugs for Thalassa PLM32. This accessory have multi-purpose application : top, bottom and rear mounting are possible. Permanent permissible load is 10 kg vertical and horizontal position. The lugs are made from polyamide 6 with 30 % fiber glass. This product is qualified as a green premium, with minimal use of hazardous substances. The color is grey RAL 7035. Fixings are delivered with the lugs.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Fixing accessory |
| Product or component type | Wall fixing support |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - |
| Mounting location | Top and bottom, on rear of the enclosure |
| Range compatibility | PanelSeT PLM |
| Device composition | Fixing screws, 4 lug |
| Material | Polyamide 6 with 30 % fibre glass |
| Colour | Grey (RAL 7035) |
| Fixing mode | Screwed - from the outside location |
| Permanent permissible load | 100 kg horizontal position, 200 kg vertical position |
| Length | 160 mm |
| Height | 310 mm |
| Width | 215 mm |
Packaging
| Package 1 | 1 PCE, 12.000 cm × 10.000 cm × 2.000 cm (L × W × H), 12.000 g |
| Package 2 | 50 CAR, 32.000 cm × 19.000 cm × 23.000 cm (L × W × H), 648.000 g |
| Package 3 | 3000 PAM, 120.000 cm × 100.000 cm × 105.000 cm (L × W × H), 56.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYPFPLM32G: frequently asked questions
When can NSYPFPLM32G be shipped?
NSYPFPLM32G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYPFPLM32G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYPFPLM32G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPFPLM32G, subject to availability and destination.
