Schneider Electric NSYPCVDN126
Ventilated single door;PanelSeT SFN;for 19" electronic enclosure H1200 W600mm
- MPN
- NSYPCVDN126
- EAN
- 3606487084839
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYPCVDN126?

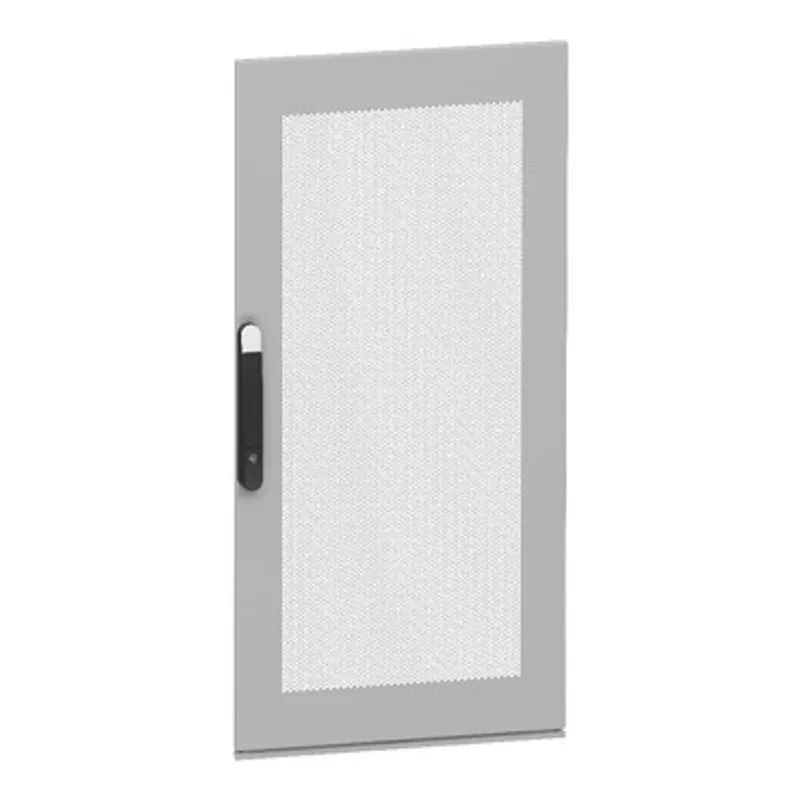

This is a ventilated door for 19" rack designed to achieve natural airing of the enclosure. It is purpose-built to assemble a PanelSeT SFN electrical enclosure with dimensions of 1200mm height and 600mm width for Electronic applications. The nominal height and width are 1200 mm and 600 mm, respectively. It is made of steel sheets, while the handle is made of polyamide 6 with 30% fiberglass. An epoxy-polyester powder finish provides a smooth appearance. It has a grey (RAL 7035) color. The kit contains the door and handle. This product is qualified as a green premium, with minimal use of hazardous substances.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | 19" door |
| Application | Electronic application, Multi-purpose |
| For enclosure nominal dimensions | - |
| Mounting location | Front |
| Range compatibility | PanelSeT SFN |
| Device composition | 1 door, 1 lock with handle and 5 mm double bar insert, 1 locking bar system 4 points |
| Quantity per set | Set of 1 |
| Material | Sheet steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Lock type | Lock 5 mm double bar |
| Number of locks | 1 |
| Door type | Ventilated |
| Door opening side | Reversible (120 °) |
| Height | Nominal: 1200 mm |
| Width | Nominal: 600 mm |
Packaging
| Package 1 | 1 PCE, 128.500 cm × 58.000 cm × 7.000 cm (L × W × H), 10.540 kg |
| Package 2 | 5 PAL, 129.500 cm × 100.000 cm × 50.000 cm (L × W × H), 68.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYPCVDN126: frequently asked questions
When can NSYPCVDN126 be shipped?
NSYPCVDN126 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYPCVDN126 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYPCVDN126 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPCVDN126, subject to availability and destination.
