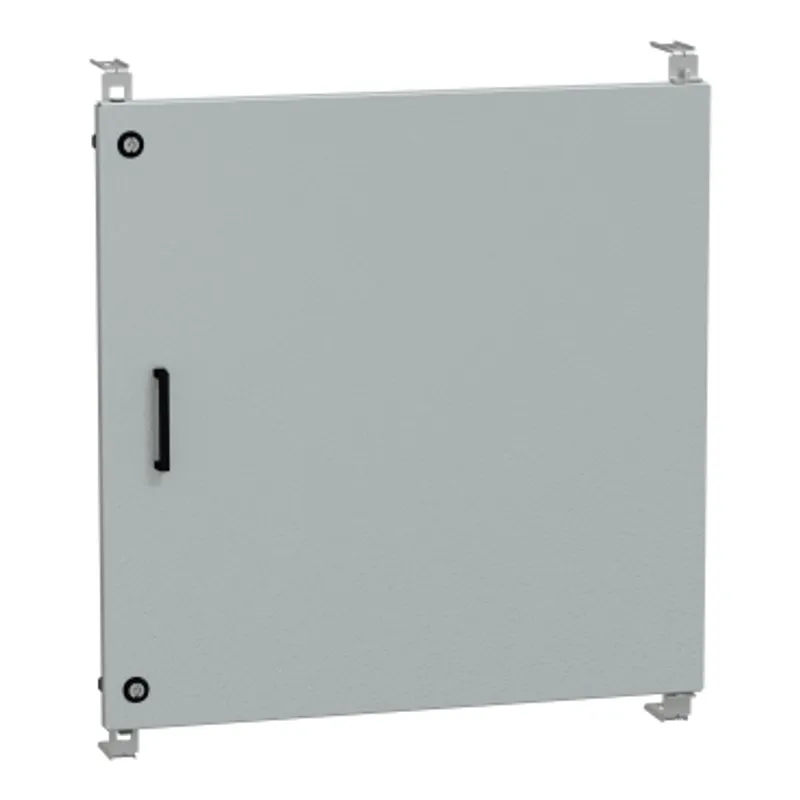

internal door for PLA enclosure H 750xW750 mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT PLA |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 3.93 kg |
Shipping & availability
When can NSYPAPLA77G be shipped?
NSYPAPLA77G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYPAPLA77G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYPAPLA77G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPAPLA77G, subject to availability and destination.
Schneider Electric internal door for PLA enclosure H 750xW750 mm, manufacturer part number NSYPAPLA77G. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Door |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - |
| Mounting location | Front side |
| Range compatibility | PanelSeT PLM |
| Device composition | 1 door, fixing elements, M8 brass inserts |
| Material | Aluminium |
| Colour | Grey (RAL 7035) |
| Lock type | Lock 5 mm double bar |
| Number of locks | 2 |
| Door type | Internal plain |
| Door opening side | Left (110 °) |
| Height | 648 mm |
| Width | 648 mm |
| Depth | Available depth between enclosure door : 30 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 66.500 cm |
| Package 1 Width | 66.000 cm |
| Package 1 Length | 4.500 cm |
| Package 1 Weight | 3.926 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 57.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 92.000 kg |
| Warranty | 18 months |
