Schneider Electric NSYPAP54G
Reversible internal door polyester 2 locks grid pattern forPLM54
- MPN
- NSYPAP54G
- EAN
- 3606480774195
- Category
- PanelSeT PLM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYPAP54G?

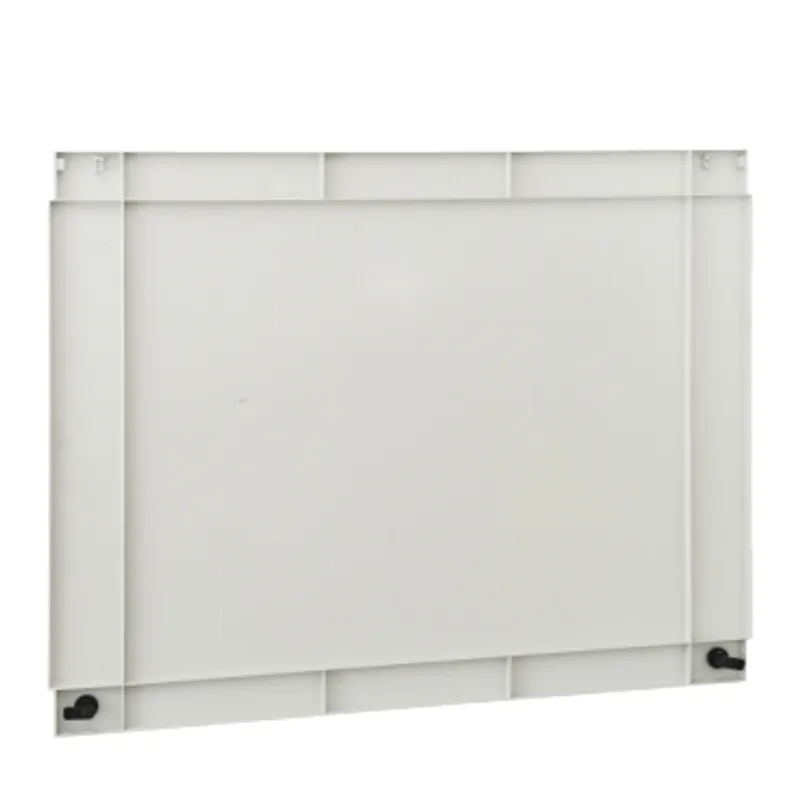

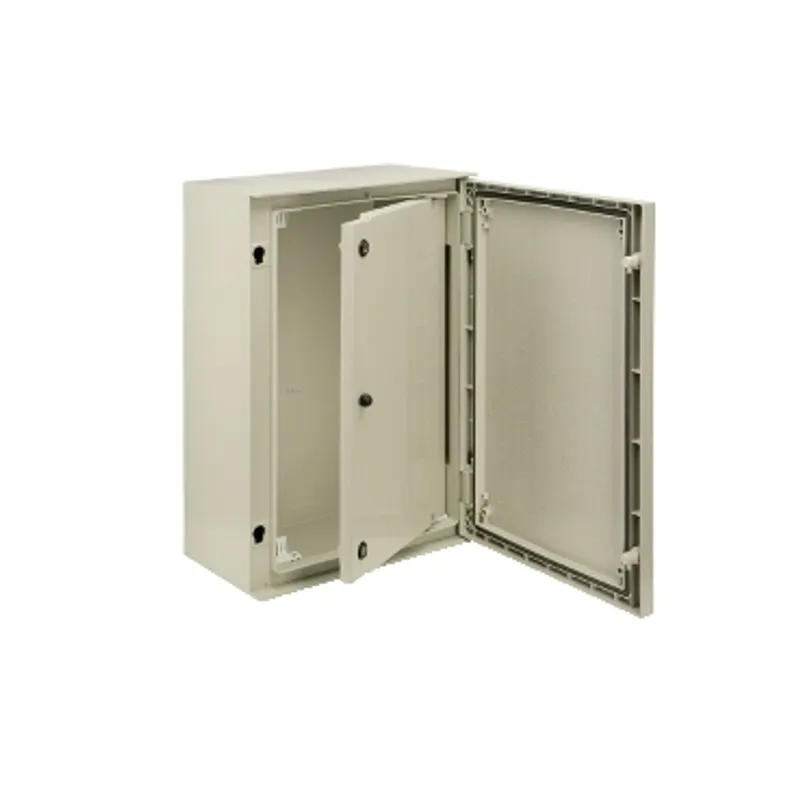

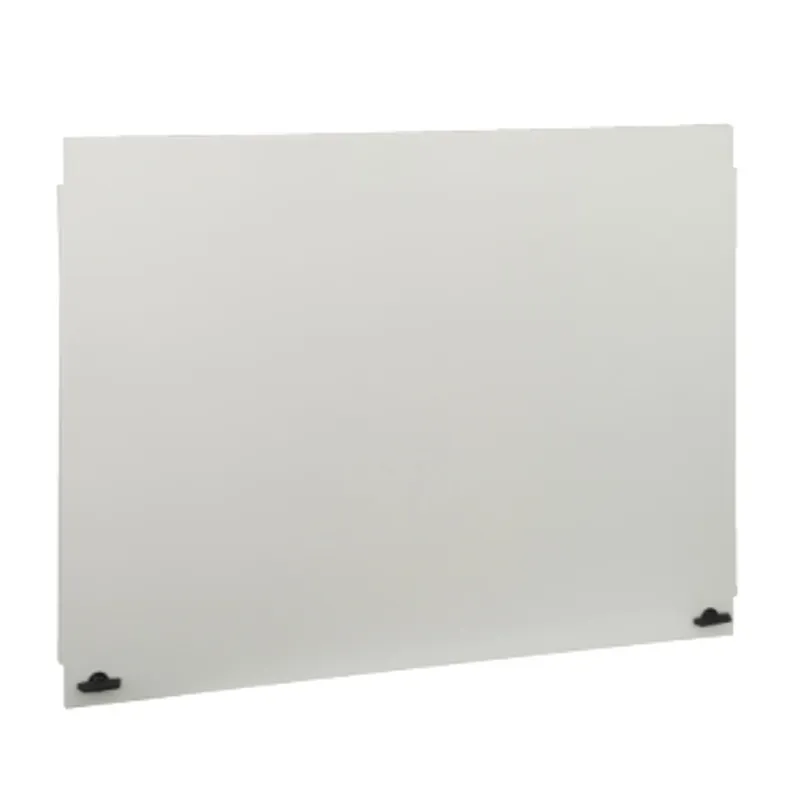

Internal plain door for PanelSeT PLM. The product is to be mounted on front side of the enclosure. The grid pattern width is 305mm. The grid pattern height is 415mm. The available depth between enclosure door depth is 26mm and available depth between rear depth is 152mm. The door is made of polyester charged with fibreglass (RAL 7035) and has a degree of IP protection IP20. Hinges left or right (110 ° opening angle). The door has 2 locks with 5mm double bar.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Door |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - |
| Mounting location | Front side |
| Range compatibility | PanelSeT PLM |
| Device composition | 1 door, 1 handle, 4 fixing brackets |
| Material | Polyester charged with fibreglass |
| Colour | Grey (RAL 7035) |
| Lock type | Lock 5 mm double bar |
| Number of locks | 2 |
| Door type | Internal plain |
| Door opening side | Reversible (110 °) |
| Height | Grid pattern: 415 mm |
| Width | Grid pattern: 305 mm |
| Depth | Available depth between enclosure door : 26 mm, Available depth between rear : 152 mm |
Packaging
| Package 1 | 1 PCE, 50.000 cm × 37.000 cm × 5.000 cm (L × W × H), 1.700 kg |
| Package 2 | 80 PAM, 120.000 cm × 100.000 cm × 90.000 cm (L × W × H), 153.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYPAP54G: frequently asked questions
When can NSYPAP54G be shipped?
NSYPAP54G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYPAP54G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYPAP54G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPAP54G, subject to availability and destination.
