Schneider Electric NSYPA3025PLMG

Reversible internal door polyester 2 locks grid pattern forPLM3025

MPN
NSYPA3025PLMG
EAN
3606480774164
Category
PanelSeT PLM
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

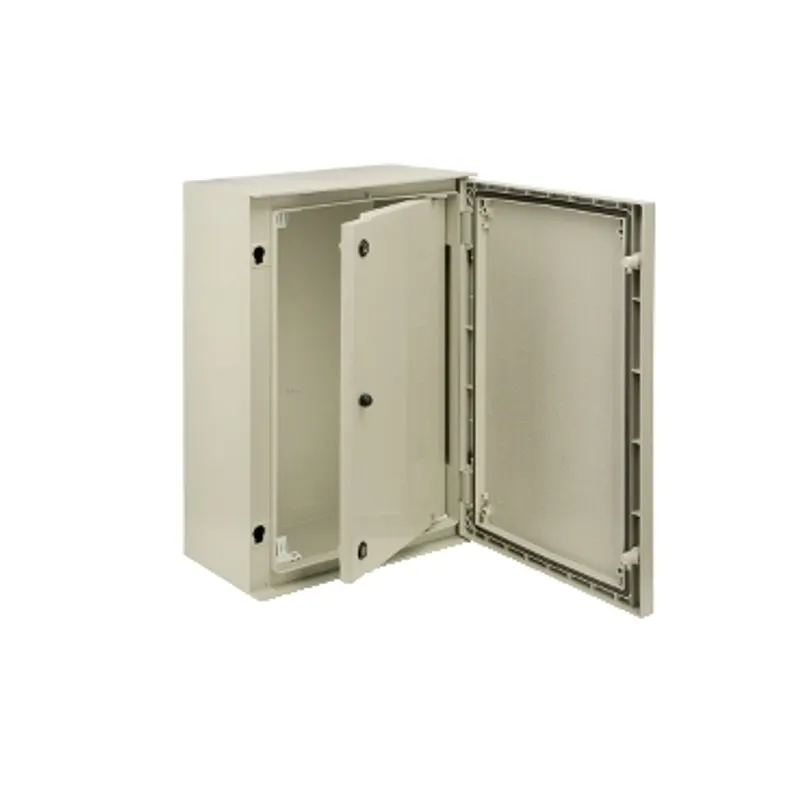

What is the Schneider Electric NSYPA3025PLMG?

Internal plain door for PanelSeT PLM. The product is to be mounted on front side of the enclosure. The grid pattern width is 165mm. The grid pattern height is 248mm. The available depth between enclosure door depth is 26mm and available depth between rear depth is 62mm. The door is made of sheet steel (RAL 7035) and has a degree of IP protection IP20. Hinges left or right (110 ° opening angle). The door has 2 by screws.

Specifications

Specifications

RangePanelSeT
Accessory / separate part categoryEnclosure accessory
Product or component typeDoor
ApplicationMulti-purpose
For enclosure nominal dimensions-
Mounting locationFront side
Range compatibilityPanelSeT PLM
Device composition1 door, 1 handle, 4 fixing brackets
MaterialSheet steel
ColourGrey (RAL 7035)
Surface finishPolyester powder
Lock typeBy screws
Number of locks2
Door typeInternal plain
Door opening sideReversible (110 °)
HeightGrid pattern: 248 mm
WidthGrid pattern: 165 mm
DepthAvailable depth between enclosure door : 26 mm, Available depth between rear : 62 mm

Packaging

Package 11 PCE, 29.500 cm × 22.500 cm × 5.000 cm (L × W × H), 1.322 kg
Package 220 PAL, 120.000 cm × 45.000 cm × 29.000 cm (L × W × H), 26.440 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYPA3025PLMG: frequently asked questions

When can NSYPA3025PLMG be shipped?

NSYPA3025PLMG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYPA3025PLMG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYPA3025PLMG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPA3025PLMG, subject to availability and destination.
