Schneider Electric NSYPAP86G
Reversible internal door polyester 2 locks grid pattern forPLM86
- MPN
- NSYPAP86G
- EAN
- 3606480774225
- Category
- PanelSeT PLM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYPAP86G?

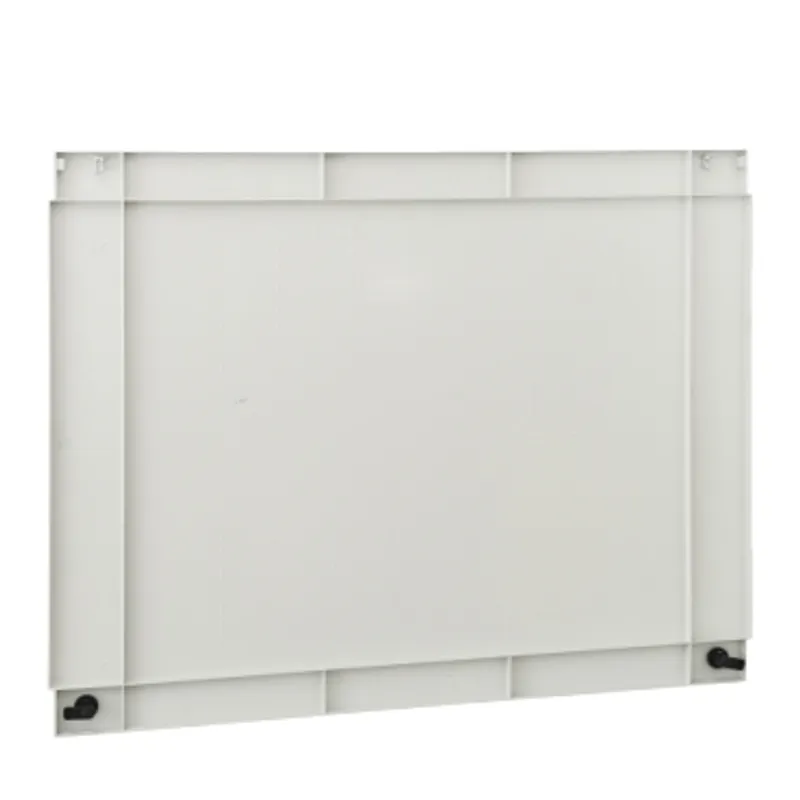

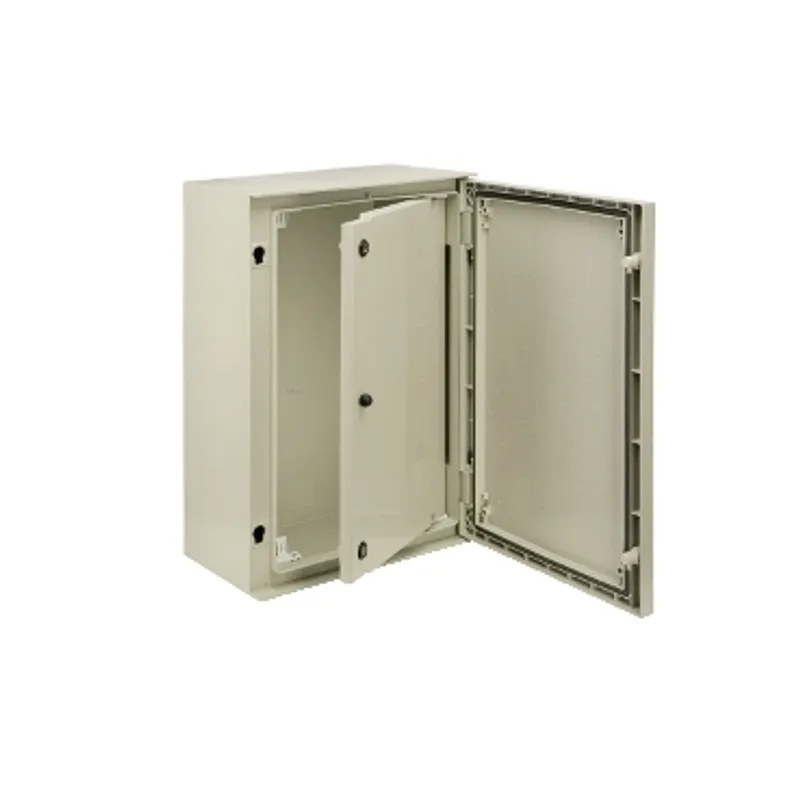

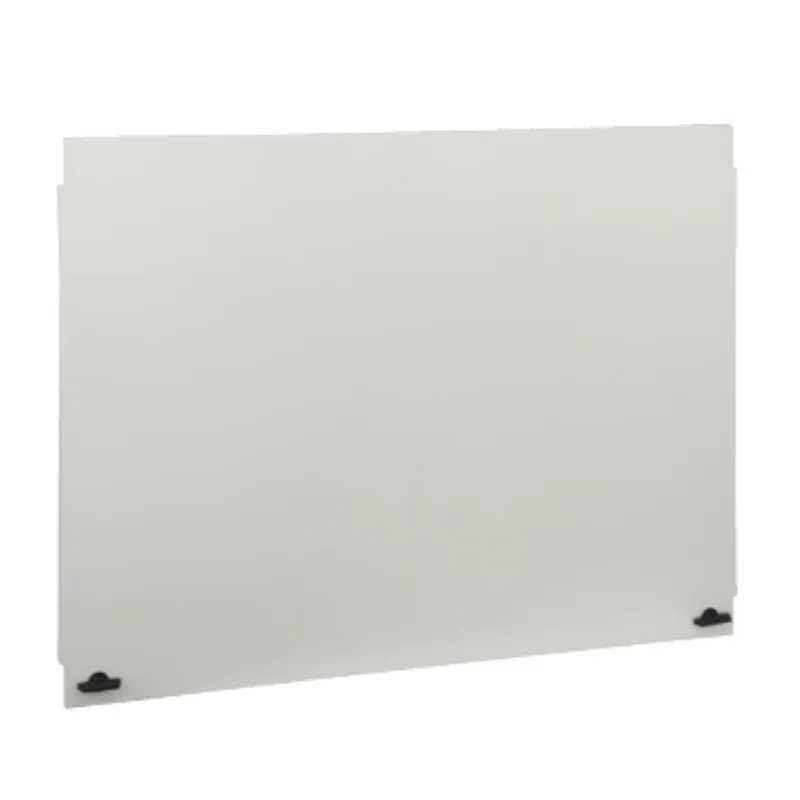

Internal plain door for PanelSeT PLM. The product is to be mounted on front side of the enclosure. The grid pattern width is 505mm. The grid pattern height is 715mm. The available depth between enclosure door depth is 32mm and available depth between rear depth is 244mm. The door is made of polyester charged with fibreglass (RAL 7035) and has a degree of IP protection IP20. Hinges left or right (110 ° opening angle). The door has 2 locks with 5mm double bar.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Door |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - |
| Mounting location | Front side |
| Range compatibility | PanelSeT PLM |
| Device composition | 1 door, 1 handle, 4 fixing brackets |
| Material | Polyester charged with fibreglass |
| Colour | Grey (RAL 7035) |
| Lock type | Lock 5 mm double bar |
| Number of locks | 2 |
| Door type | Internal plain |
| Door opening side | Reversible (110 °) |
| Height | Grid pattern: 715 mm |
| Width | Grid pattern: 505 mm |
| Depth | Available depth between enclosure door : 32 mm, Available depth between rear : 244 mm |
Packaging
| Package 1 | 1 PCE, 80.500 cm × 57.000 cm × 5.000 cm (L × W × H), 4.174 kg |
| Package 2 | 60 PAM, 120.000 cm × 100.000 cm × 157.500 cm (L × W × H), 268.000 kg |
