Schneider Electric NSYMUCH406
Hinges cut-out cover plate;PanelSeT SFN;SF;SM;for electrical enclosure W600mm;2 cut outs;H400mm
- MPN
- NSYMUCH406
- EAN
- 3606480066399
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

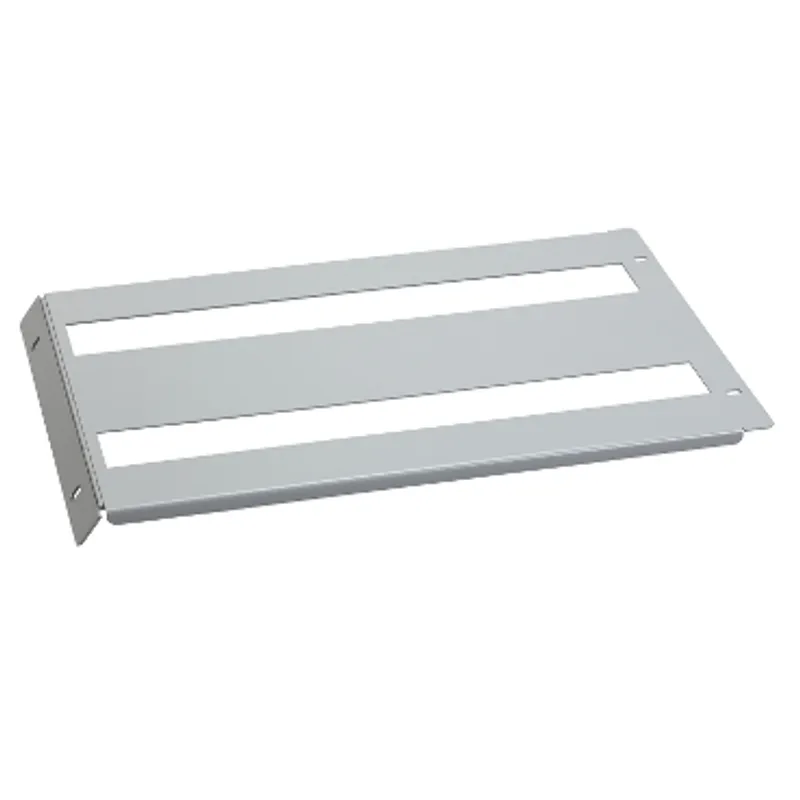

What is the Schneider Electric NSYMUCH406?
This is a hinged cut-out cover plate for modular switchgear (1 module = 18 mm) suitable for PanelSeT SFN, PanelSeT SF and PanelSeT SM electrical enclosures. It is compatible with enclosures that have a width of 600mm. Suitable by modules of 150 or 200 mm. The nominal height and width are 400mm and 600mm respectively. The real height, width and depth are 502mm, 399.5mm and 12mm respectively. It is made of steel. The color is grey RAL7035. Anti-corrosion protection is ensured by an epoxy-polyester zinc coated coating. The kit contains 1 cut-out cover plate and fixing elements.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Cover plate |
| Anwendung | Multi-purpose |
| Range compatibility | PanelSeT SF, PanelSeT SM |
| Nominal dimensions of the housing | - H: 400 mm W: 600 mm |
| Mounting location | On chassis coupling set |
| Device composition | Fixing elements, 1 cover plate |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By screws |
| Number of horizontal rows | 2 |
| Total number of 18 mm modules | 48 |
| Type of front plate | Hinged with cut-out |
| Number of cut-out | 2 cut-outs |
| Height | Nominal: 400 mm, Real: 399.5 mm |
| Width | Nominal: 600 mm, Fixing centers: 478 mm, Real: 502 mm |
| Depth | Real : 12 mm |
Packaging
| Package 1 | 1 PCE, 1.500 cm × 40.000 cm × 50.500 cm (L × W × H), 2.784 kg |
| Package 2 | 30 PAM, 120.000 cm × 100.000 cm × 30.000 cm (L × W × H), 97.000 kg |
