Schneider Electric

Schneider Electric NSYMUCH208

Hinges cut-out cover plate;PanelSeT SFN;PanelSeT SF;PanelSeT SM;for electrical enclosure W800mm;1 cut out;H200mm

MPN
NSYMUCH208
EAN
3606480066368
Category
PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYMUCH208?

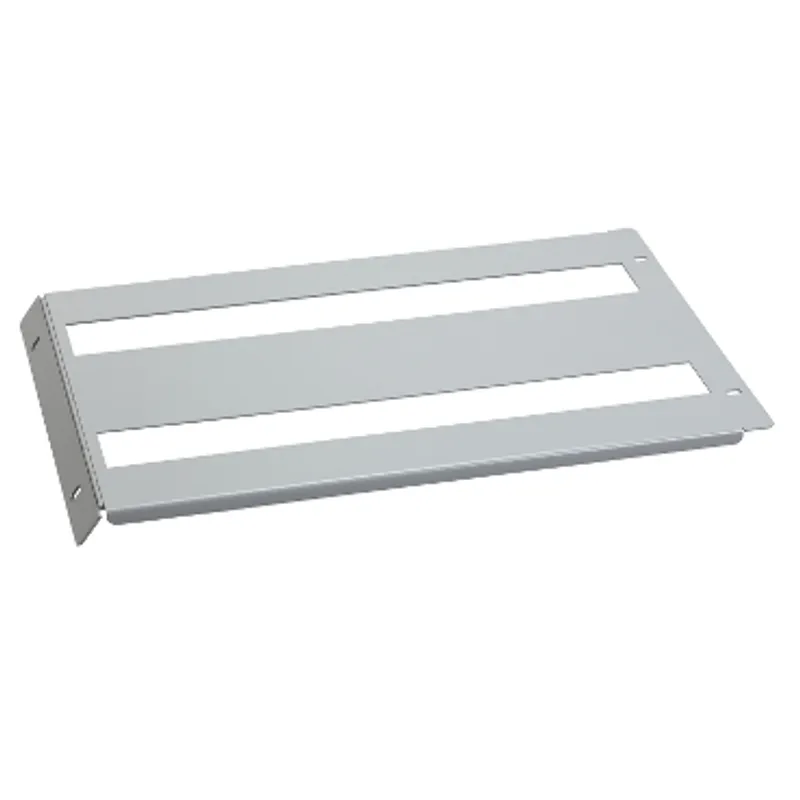

This is a hinged cut-out cover plate for modular switchgear (1 module = 18 mm) suitable for PanelSeT SFN, PanelSeT SF and PanelSeT SM electrical enclosures. It is compatible with enclosures that have a width of 800mm. Suitable by modules of 150 or 200 mm. The nominal height and width are 200mm and 800mm respectively. The real height, width and depth are 702mm, 199.5mm and 12mm respectively. It is made of steel. The color is grey RAL7035. Anti-corrosion protection is ensured by an epoxy-polyester zinc coated coating. The kit contains 1 cut-out cover plate and fixing elements.

Specifications

Specifications

RangePanelSeT
Accessory / separate part categoryEnclosure accessory
Product or component typeCover plate
AnwendungMulti-purpose
Range compatibilityPanelSeT SF, PanelSeT SM
Nominal dimensions of the housing- H: 200 mm W: 800 mm
Mounting locationOn chassis coupling set
Device compositionFixing elements, 1 cover plate
Quantity per setSet of 1
MaterialSteel
ColourGrey (RAL 7035)
Surface finishEpoxy-polyester powder
Fixing modeBy screws
Number of horizontal rows1
Total number of 18 mm modules36
Type of front plateHinged with cut-out
Number of cut-out1 cut-out
HeightNominal: 200 mm, Real: 199.5 mm
WidthNominal: 800 mm, Fixing centers: 678 mm, Real: 702 mm
DepthReal : 12 mm

Packaging

Package 11 PCE, 1.500 cm × 20.500 cm × 70.500 cm (L × W × H), 2.078 kg
Package 2100 PAM, 120.000 cm × 100.000 cm × 38.000 cm (L × W × H), 210.000 kg
