Schneider Electric NSYMP2212

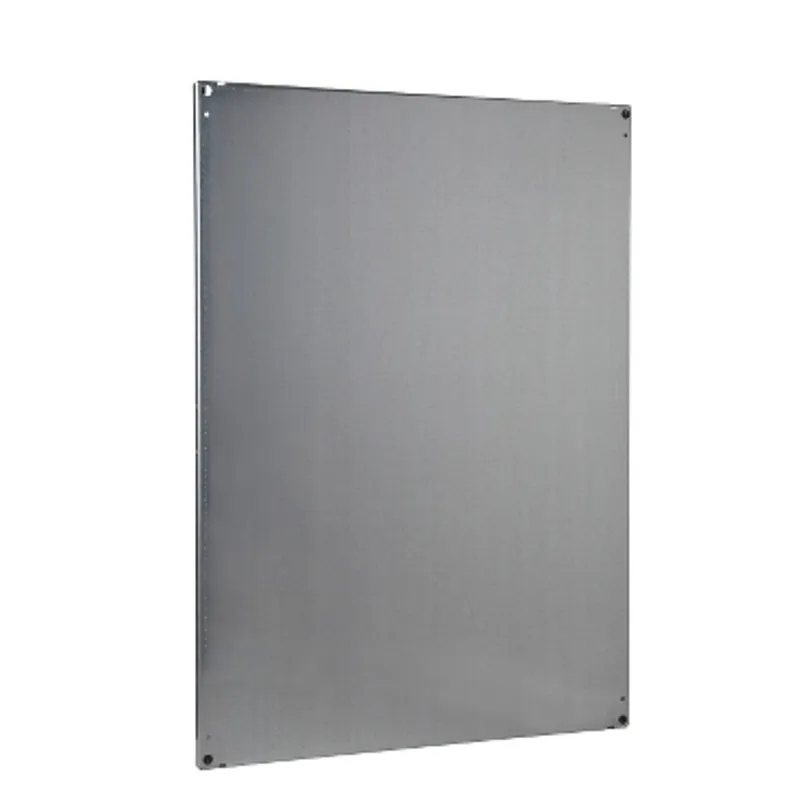

Plain mounting plate, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure H2200 W1200mm, galvanized steel
- MPN
- NSYMP2212
- EAN
- 3606485126982
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYMP2212?
This mounting plate is suitable for PanelSeT SFN and PanelSeT floor-standing electrical enclosures. It can be installed in enclosures with nomial height and depth of 2200 and 1200 mm respectively. It is made of galvanized steel. It can be adjusted in depth with a pitch of 25 mm. The mounting plate is provided with plastic shoes to ease the installation.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT PanelSeT SF SF, PanelSeT SM PanelSeT SM, PanelSeT SFX PanelSeT SFX, PanelSeT SMX PanelSeT SMX |
| Device composition | 1 mounting plate, 2 sliding shoes |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | By fixing brackets |
| Maximum load | 300 kg/m² |
| Permanent permissible load | 500 kg intermediate position, 600 kg back of the enclosure |
| Height | Fixing centers: 2050 mm, Nominal: 2200 mm, Real: 2097 mm |
| Width | Fixing centers: 1050 mm, Nominal: 1200 mm, Real: 1096 mm |
| Depth | 27 mm |
Packaging
| Package 1 | 1 PCE, 3.500 cm × 110.000 cm × 211.000 cm (L × W × H), 46.200 kg |
| Package 2 | 15 PAL, 120.000 cm × 211.000 cm × 67.500 cm (L × W × H), 727.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYMP2212: frequently asked questions
When can NSYMP2212 be shipped?
NSYMP2212 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMP2212 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMP2212 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMP2212, subject to availability and destination.
