Schneider Electric NSYMP224

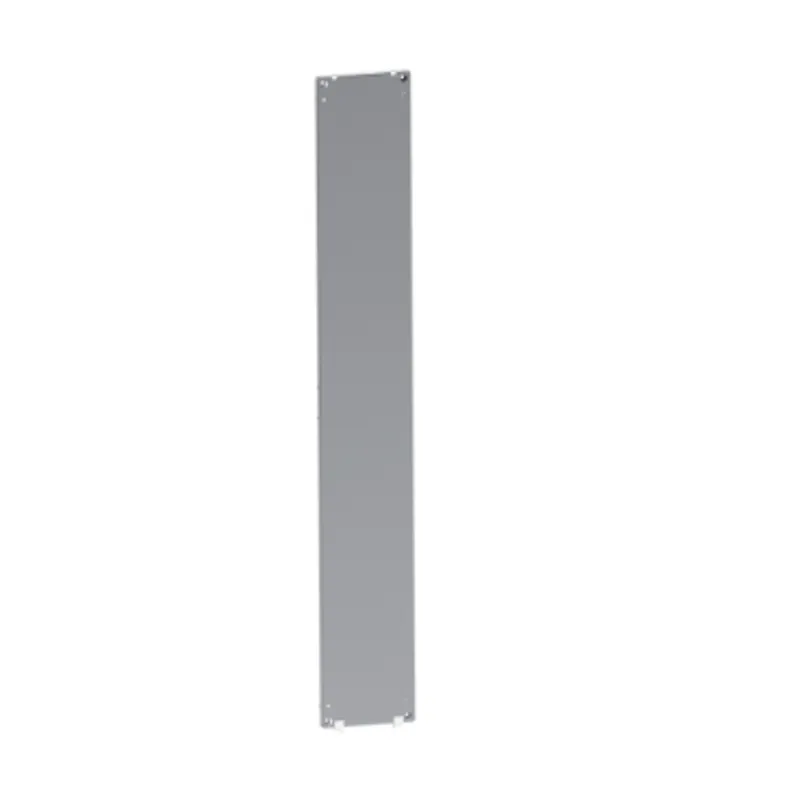

Plain mounting plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure H2200 W400mm, galvanized steel
- MPN
- NSYMP224
- EAN
- 3606489807689
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYMP224?
This mounting accessory is a multi-purpose mounting plate with dimensions H2097xW296xD27. It is compatible with the Spacial SF enclosure with dimensions H2200mmxW400mm (any depth). It is made of galvanized steel and can be mounted in the back of the enclosure or in an intermediate position. The depth is adjustable with a pitch of 25 mm, provided with plastic shoes for easier sliding. It holds loads up to 300 kg/m2, with a maximum of 600 kg if mounted in the back of the enclosure and 500 kg in the intermediate position. Compliant with RoHs and REACH directives.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 2200 mm W: 400 mm |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT PanelSeT SF SF |
| Device composition | 1 mounting plate, 2 sliding shoes |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | By fixing brackets |
| Permanent permissible load | 500 kg intermediate position, 600 kg back of the enclosure |
| Height | Fixing centers: 2050 mm, Nominal: 2200 mm, Real: 2097 mm |
| Width | Fixing centers: 250 mm, Nominal: 400 mm, Real: 296 mm |
| Depth | 27 mm |
Packaging
| Package 1 | 1 PCE, 220.000 cm × 30.000 cm × 4.000 cm (L × W × H), 16.430 kg |
| Package 2 | 10 PAL, 220.000 cm × 120.000 cm × 50.000 cm (L × W × H), 195.000 kg |
