Schneider Electric
NSYMP2012Plain mounting plate, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure H2000 W1200mm, galvanized steel
Schneider Electric NSYMP206
Plain mounting plate, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure H2000 W600mm, galvanized steel
- MPN
- NSYMP206
- EAN
- 3606485126890
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

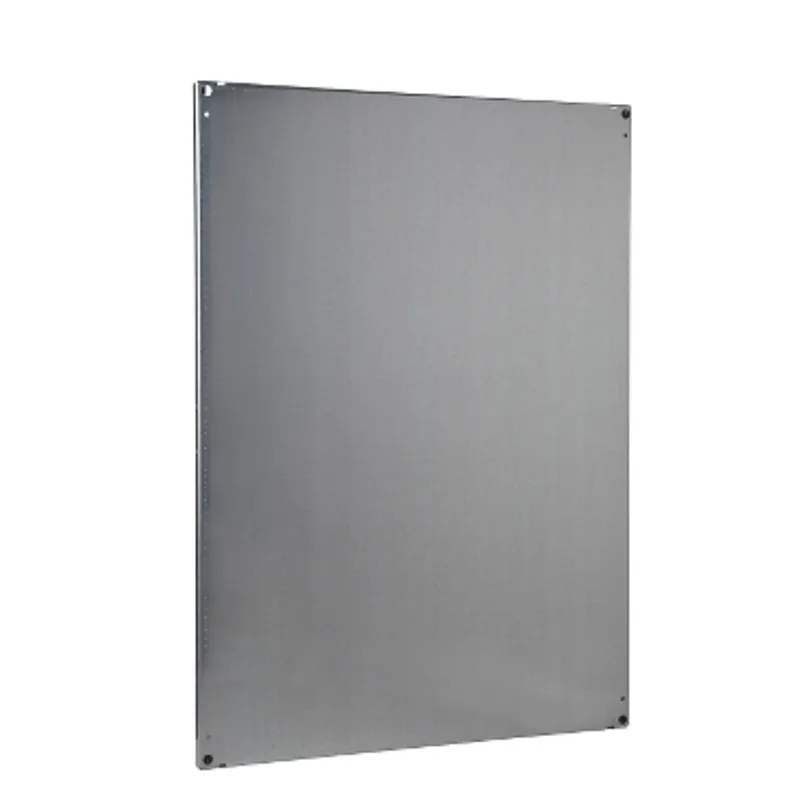

What is the Schneider Electric NSYMP206?
This mounting plate is suitable for PanelSeT SFN and PanelSeT floor-standing electrical enclosures. It can be installed in enclosures with nomial height and depth of 2000 and 600 mm respectively. It is made of galvanized steel. It can be adjusted in depth with a pitch of 25 mm. The mounting plate is provided with plastic shoes to ease the installation.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 2000 mm W: 600 mm |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT SF, PanelSeT SM, PanelSeT SFX, PanelSeT SMX |
| Device composition | 1 mounting plate, 2 sliding shoes |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | By fixing brackets |
| Maximum load | 300 kg/m² |
| Permanent permissible load | 500 kg intermediate position, 600 kg back of the enclosure |
| Height | Fixing centers: 1850 mm, Nominal: 2000 mm, Real: 1897 mm |
| Width | Nominal: 600 mm, Fixing centers: 450 mm, Real: 496 mm |
Packaging
| Package 1 | 1 PCE, 191.000 cm × 52.000 cm × 3.500 cm (L × W × H), 23.000 kg |
| Package 2 | 20 P2M, 200.000 cm × 120.000 cm × 51.000 cm (L × W × H), 494.500 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYMP206: frequently asked questions
When can NSYMP206 be shipped?
NSYMP206 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMP206 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMP206 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMP206, subject to availability and destination.
