Schneider Electric NSYMP1412

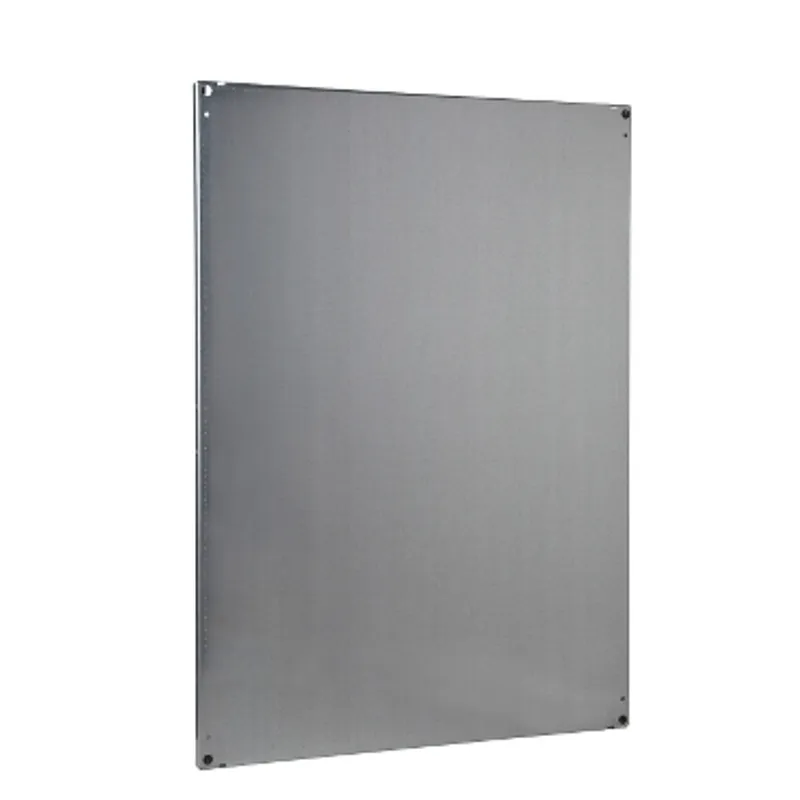

PanelSeT SF/SM mounting plate - 1400x1200 mm
- MPN
- NSYMP1412
- EAN
- 3606485130699
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYMP1412?
Spacial SF/SM mounting plate. H is1400 x W is1200 mm. Depth is 27 mm. Multi-purpose mounting accessory. Fixing mode by brackets. Permanent permissible load is 500 kg intermediate position, 600 kg on back. Galvanised steel. 1 mounting plate, 2 sliding shoes incl.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 1400 mm W: 1200 mm |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT PanelSeT SF SF, PanelSeT SM PanelSeT SM, PanelSeT SFX PanelSeT SFX, PanelSeT SMX PanelSeT SMX |
| Device composition | 1 mounting plate, 2 sliding shoes |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | By fixing brackets |
| Maximum load | 300 kg/m² |
| Permanent permissible load | 500 kg intermediate position, 600 kg back of the enclosure |
| Height | Fixing centers: 1250 mm, Nominal: 1400 mm, Real: 1297 mm |
| Width | Fixing centers: 1050 mm, Nominal: 1200 mm, Real: 1096 mm |
| Depth | 27 mm |
Packaging
| Package 1 | 1 PCE, 131.000 cm × 111.000 cm × 4.000 cm (L × W × H), 38.000 kg |
| Package 2 | 20 PAL, 210.000 cm × 120.000 cm × 83.000 cm (L × W × H), 792.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYMP1412: frequently asked questions
When can NSYMP1412 be shipped?
NSYMP1412 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMP1412 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMP1412 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMP1412, subject to availability and destination.
