Schneider Electric NSYMP1212

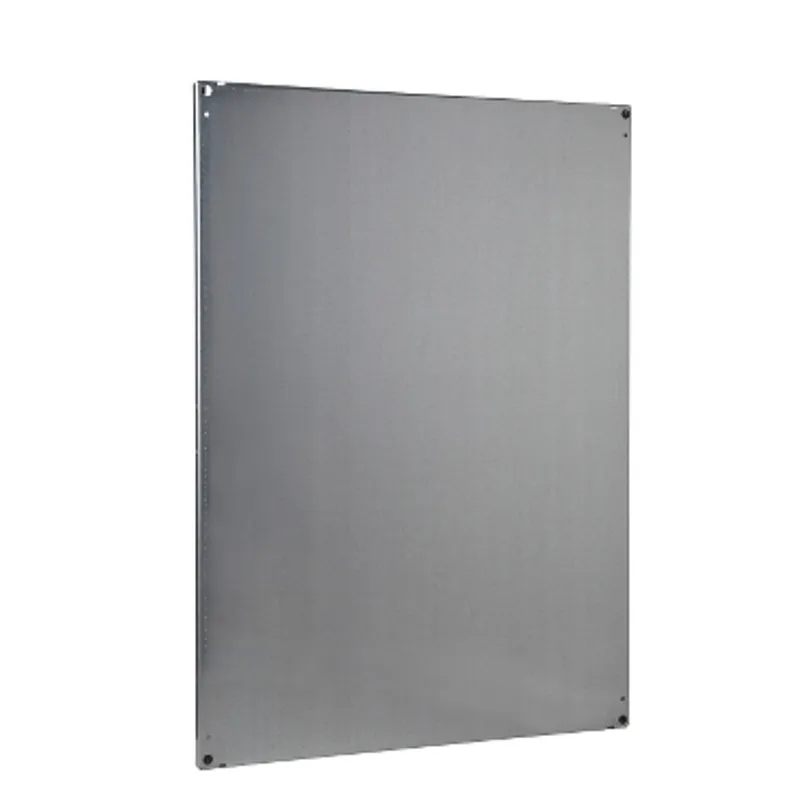

PanelSeT SF/SM mounting plate - 1200x1200 mm
- MPN
- NSYMP1212
- EAN
- 3606485130675
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYMP1212?
Spacial SF/SM standard mounting plate. 1199 x 1200 mm. Equipped with a perimeter reinforcement rib. Max. Load 600 kg if positioned in the rear, 500 kg if positioned in the middle of Enclosure. Galvanized sheet steel. Fixing mode by brackets.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 1200 mm W: 1200 mm |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT PanelSeT SF SF, PanelSeT SM PanelSeT SM, PanelSeT SFX PanelSeT SFX, PanelSeT SMX PanelSeT SMX |
| Device composition | 1 mounting plate, 2 sliding shoes |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | By fixing brackets |
| Maximum load | 300 kg/m² |
| Permanent permissible load | 500 kg intermediate position, 600 kg back of the enclosure |
| Height | Fixing centers: 1050 mm, Nominal: 1200 mm, Real: 1097 mm |
| Width | Fixing centers: 1050 mm, Nominal: 1200 mm, Real: 1096 mm |
| Depth | 27 mm |
Packaging
| Package 1 | 1 PCE, 111.000 cm × 110.000 cm × 3.500 cm (L × W × H), 31.000 kg |
| Package 2 | 20 P2M, 200.000 cm × 120.000 cm × 87.000 cm (L × W × H), 652.000 kg |
