Schneider Electric NSYMFSC80D

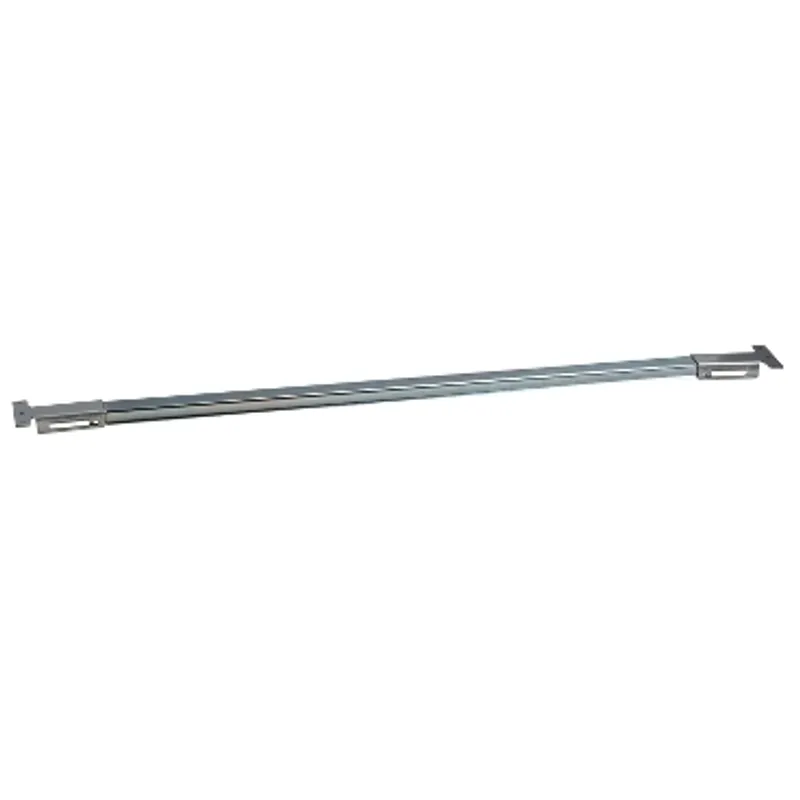

Depth-adjustable rail with supports, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W800mm , steel
- MPN
- NSYMFSC80D
- EAN
- 3606480065569
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYMFSC80D?
This is a set made up of a galvanized symmetric DIN rail and depth adjustable mounting supports, for the installation of modular devices or not. The product is suitable for PanelSeT SFN, PanelSeT SF and PanelSeT SM electrical enclosures. It is designed to be affixed using screws directly onto the uprights of the modular chassis-coupling set, with an adjustable depth of 52 mm The real depth and height are 695mm and 26mm repectively. The support is made of zinc-coated steel and the DIN is made of galvanized steel. The color is grey RAL7035. The kit contains 1 DIN rail, 2 adjustable supports and fixing elements.
Specifications
Specifications
| Anwendung | Multi-purpose |
| Range | PanelSeT |
| Product or component type | Din rail support |
| Accessory / separate part category | Mounting accessory |
| Type of rail | Adjustable symmetrical DIN rail |
| Enclosure nominal dimensions | - W: 800 mm |
| Mounting support | Uprights of the chassis coupling set |
| Range compatibility | PanelSeT |
| Device composition | Fixing elements, 1 DIN rail, 2 adjustable support |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | By screws |
| Adjustment | Adjustable in depth 52 mm |
| Height | Real: 26 mm |
| Depth | Real : 695 mm |
Packaging
| Package 1 | 1 PCE, 69.000 cm × 6.500 cm × 2.000 cm (L × W × H), 620.000 g |
| Package 2 | 150 PAM, 120.000 cm × 100.000 cm × 45.000 cm (L × W × H), 106.000 kg |
