Schneider Electric NSYMFSC80

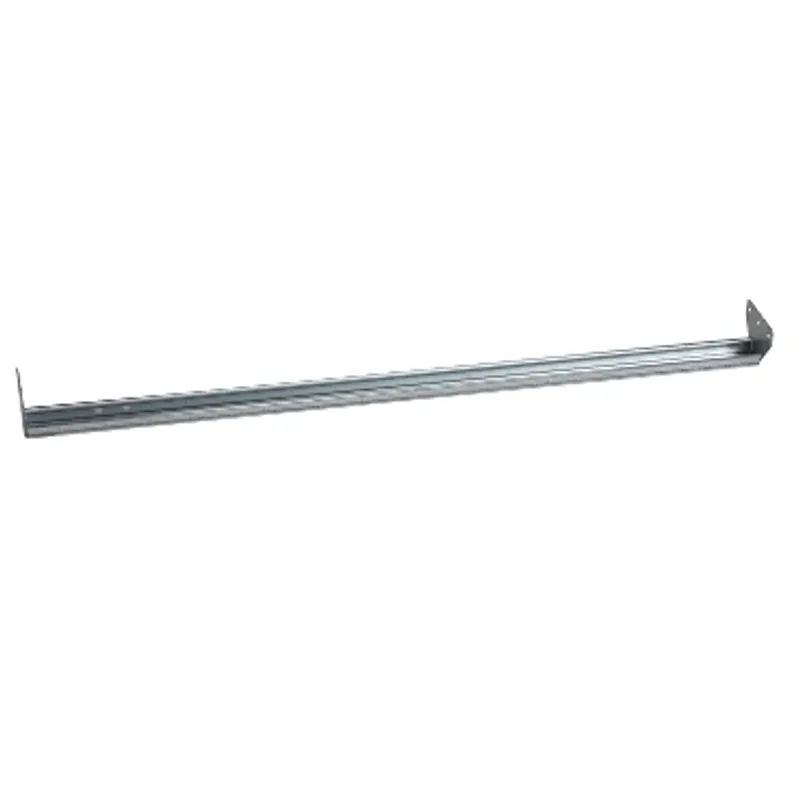

LOT 2 SUP. FIXES AV/RAIL L800
- MPN
- NSYMFSC80
- EAN
- 3606480065552
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYMFSC80?
This is a set of fixed rail with supports suitable for PanelSeT SFN, PanelSeT SF and PanelSeT SM electrical enclosures. It is compatible with enclosures that have a width of 800mm. The real depth and height are 690mm and 40mm respectively. It is made of steel. The color is grey RAL7035. Anti-corrosion protection is ensured by an epoxy-polyester zinc coated coating. The kit contains 1 DIN rail, 2 fixed supports and fixing elements.
Specifications
Specifications
| Anwendung | Multi-purpose |
| Range | PanelSeT |
| Product or component type | Din rail support |
| Accessory / separate part category | Mounting accessory |
| Type of rail | Fixed symmetrical DIN rail |
| Enclosure nominal dimensions | - W: 800 mm |
| Mounting support | Uprights of the chassis coupling set |
| Range compatibility | PanelSeT |
| Device composition | Fixing elements, 1 DIN rail, 2 fixed support |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | By screws |
| Height | Real: 40 mm |
| Depth | Real : 690 mm |
Packaging
| Package 1 | 1 PCE, 69.000 cm × 6.000 cm × 4.500 cm (L × W × H), 580.000 g |
| Package 2 | 150 PAM, 120.000 cm × 100.000 cm × 50.000 cm (L × W × H), 101.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYMFSC80: frequently asked questions
When can NSYMFSC80 be shipped?
NSYMFSC80 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMFSC80 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMFSC80 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMFSC80, subject to availability and destination.
