Schneider Electric NSYID2010

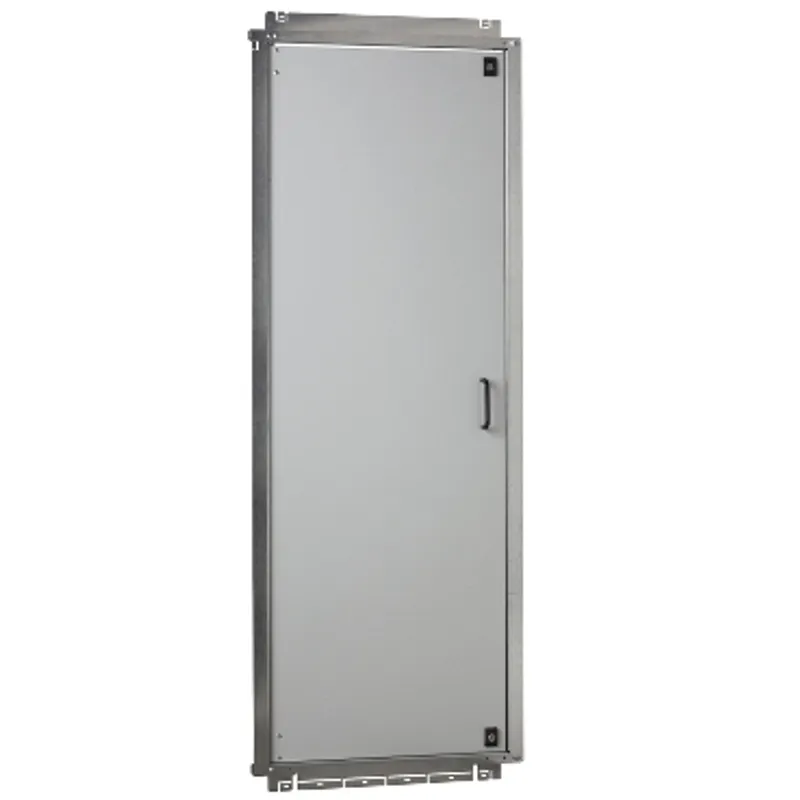

Inner door, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure H2000 W1000mm
- MPN
- NSYID2010
- EAN
- 3606485127064
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYID2010?
This is an internal door for additional protection suitable with PanelSeT SFN, PanelSeT SF, PanelSeT SM, PanelSeT SFX and PanelSeT SMX electrical enclosures. It is made of steel. Anti-corrosion protection is ensured by an epoxy-polyester zinc coated coating. The color is grey RAL7035. It can be opened to right or left, with two locks, 3-mm double-bar, with central handle. The nominal width and height are 1000mm and 2000mm respectively. The real width and height are 900mm and 1865mm respectively. The depth measures 19,5mm. The maximun acceptable load is 15 Kg. The maximun acceptable load is 15 Kg.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Door |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - |
| Mounting location | Front |
| Range compatibility | PanelSeT SFX, PanelSeT SF, PanelSeT SM |
| Device composition | 1 door, 2 lock with 3 mm double bar insert, 1 handle, fixing elements |
| Quantity per set | Set of 1 |
| Material | Sheet steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Lock type | Lock 3 mm double bar |
| Number of locks | 2 |
| Adjustment | Adjustable in depth every 25 mm |
| Door type | Internal plain |
| Door opening side | Reversible |
| Maximum load | 15 kg/m² |
| Height | Nominal: 2000 mm, Real: 1865 mm |
| Width | Nominal: 1000 mm, Real: 900 mm |
| Depth | 19.5 mm |
Packaging
| Package 1 | 1 PCE, 195.000 cm × 100.000 cm × 4.500 cm (L × W × H), 36.600 kg |
| Package 2 | 10 P2M, 200.000 cm × 120.000 cm × 63.000 cm (L × W × H), 398.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYID2010: frequently asked questions
When can NSYID2010 be shipped?
NSYID2010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYID2010 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYID2010 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYID2010, subject to availability and destination.
