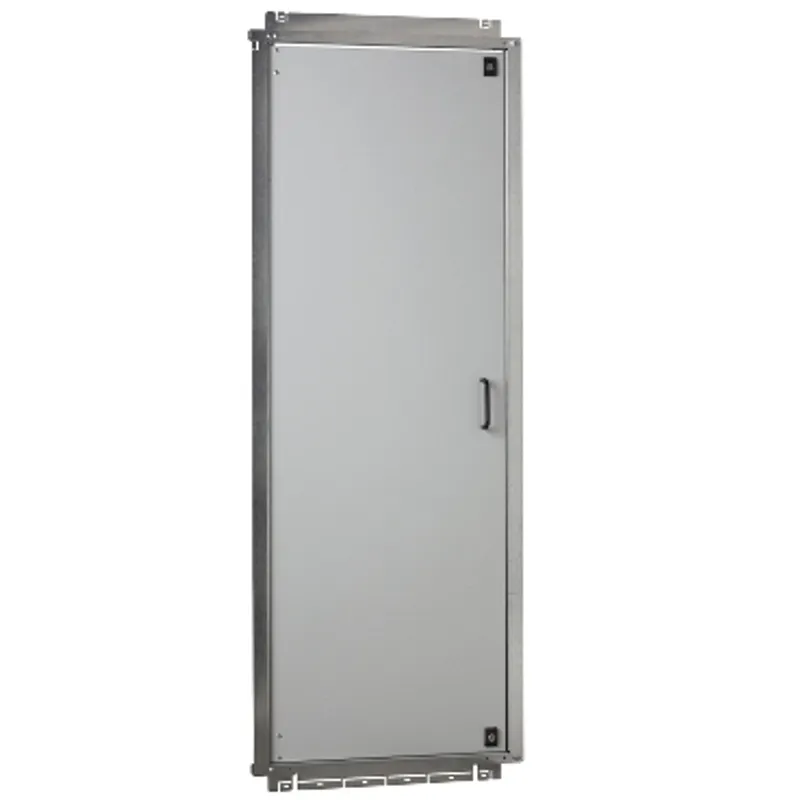

Schneider Electric NSYID168
Inner door, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure H1600 W800mm
- MPN
- NSYID168
- EAN
- 3606485127002
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYID168?
This is an internal door for additional protection suitable with PanelSeT SFN, PanelSeT SF, PanelSeT SM, PanelSeT SFX and PanelSeT SMX electrical enclosures. It is made of steel. Anti-corrosion protection is ensured by an epoxy-polyester zinc coated coating. The color is grey RAL7035. It can be opened to right or left, with two locks, 3-mm double-bar, with central handle. The nominal width and height are 800mm and 1600mm respectively. The real width and height are 700mm and 1465mm respectively. The depth measures 19,5mm. The maximun acceptable load is 15 Kg. The maximun acceptable load is 15 Kg.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Door |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - |
| Mounting location | Front |
| Range compatibility | PanelSeT SMX, PanelSeT SF, PanelSeT SM |
| Device composition | 1 door, 2 lock with 3 mm double bar insert, 1 handle, fixing elements |
| Quantity per set | Set of 1 |
| Material | Sheet steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Lock type | Lock 3 mm double bar |
| Number of locks | 2 |
| Adjustment | Adjustable in depth every 25 mm |
| Door type | Internal plain |
| Door opening side | Reversible |
| Maximum load | 15 kg/m² |
| Height | Nominal: 1600 mm, Real: 1465 mm |
| Width | Nominal: 800 mm, Real: 700 mm |
| Depth | 19.5 mm |
Packaging
| Package 1 | 1 PCE, 156.000 cm × 80.500 cm × 5.000 cm (L × W × H), 22.000 kg |
| Package 2 | 15 P2M, 200.000 cm × 120.000 cm × 80.000 cm (L × W × H), 362.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYID168: frequently asked questions
When can NSYID168 be shipped?
NSYID168 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYID168 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYID168 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYID168, subject to availability and destination.
