Schneider Electric NSYECVT3V440

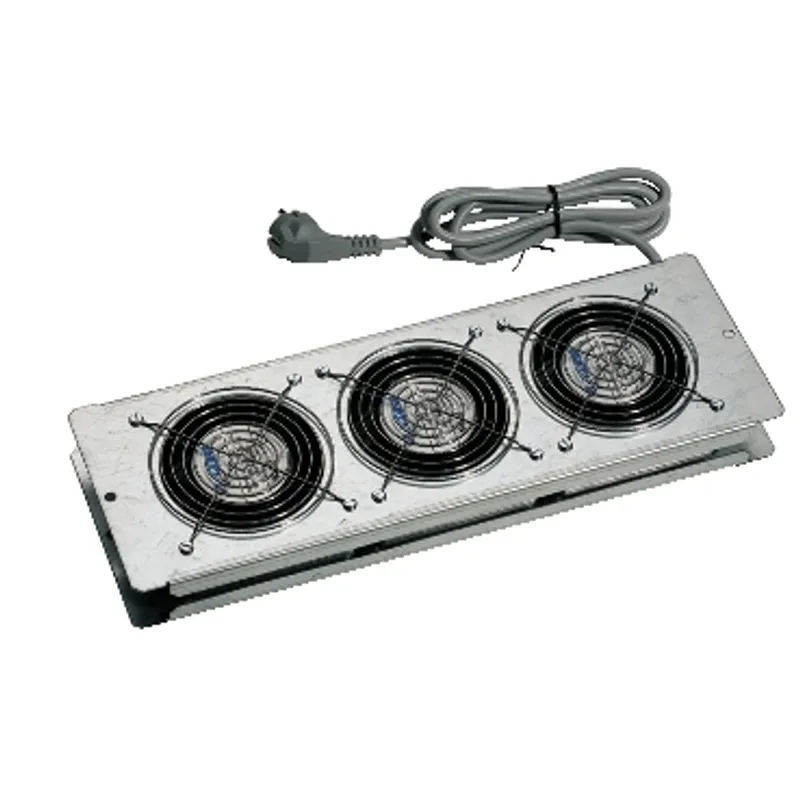

Actassi - ventilation plate with 3 cut-outs with fan
- MPN
- NSYECVT3V440
- EAN
- 3606480148972
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYECVT3V440?
This product is a blanking plate with fans to be fixed on the the internal surface of the base or roof or on a 6U knock-out panel of the reduced rear door. Equipped with 3 fans, free flow of 170 m3/h each, 220 V-50/60 Hz, installed wired with terminal board. A 3-m power cord is supplied.
Specifications
Specifications
| Range | Actassi |
| Product or component type | Fan |
| Device application | Electronic application |
| Accessory / separate part type | Ventilation plate |
| Cable gland type | With 3 fans, Ventilated |
| Noise level | 34 dB |
| Quantity per set | Set of 1 |
| Range compatibility | Actassi VDA, Actassi VDS |
| Product compatibility | SF roof for Actassi plates |
| Air flow | 170 m3/h |
| Device composition | Fixing elements, 1 plate, 1 2 m power cord |
| Material | Plate: galvanised steel |
| Mounting location | On outside of the roof |
| Fixing mode | By screws |
| Width | Fixing centers: 420 mm |
Packaging
| Package 1 | 1 PCE, 46.500 cm × 30.000 cm × 8.000 cm (L × W × H), 3.780 kg |
| Package 2 | 50 P12, 120.000 cm × 80.000 cm × 93.000 cm (L × W × H), 209.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYECVT3V440: frequently asked questions
When can NSYECVT3V440 be shipped?
NSYECVT3V440 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYECVT3V440 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYECVT3V440 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYECVT3V440, subject to availability and destination.
