Schneider Electric NSYECVT2V440
Actassi - ventilation plate with 2 cut-outs with fan
- MPN
- NSYECVT2V440
- EAN
- 3606480146305
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYECVT2V440?

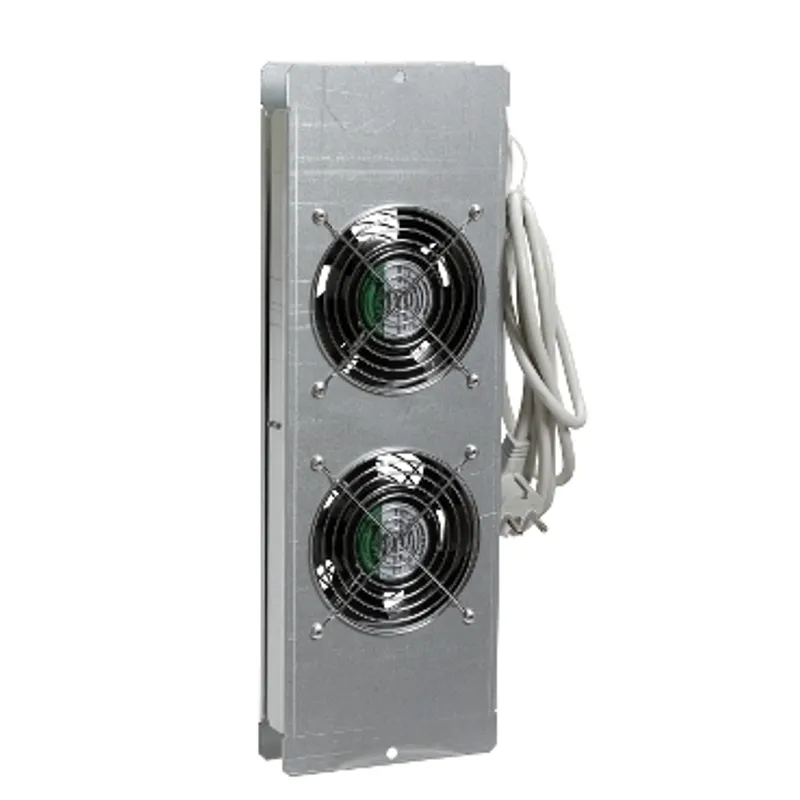

This product is a blanking plate with fans to be fixed on the the internal surface of the base or roof or on a 6U knock-out panel of the reduced rear door. Equipped with 2 fans, free flow of 170 m3/h each, 220 V-50/60 Hz, installed wired with terminal board. A 3-m power cord is supplied.
Specifications
Specifications
| Range | Actassi |
| Product or component type | Fan |
| Device application | Electronic application |
| Accessory / separate part type | Ventilation plate |
| Cable gland type | Ventilated, With 2 fans |
| Noise level | 34 dB |
| Quantity per set | Set of 1 |
| Range compatibility | Actassi VDA, Actassi VDS |
| Product compatibility | SF roof for Actassi plates |
| Air flow | 170 m3/h |
| Device composition | Fixing elements, 1 plate, 1 2 m power cord |
| Material | Plate: galvanised steel |
| Mounting location | On outside of the roof |
| Fixing mode | By screws |
| Width | Fixing centers: 420 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 47.000 cm × 30.000 cm × 8.000 cm (L × W × H), 3.348 kg |
| Package 2 | 50 P12, 120.000 cm × 80.000 cm × 92.000 cm (L × W × H), 180.000 kg |
