Schneider Electric NSYECVT300
Actassi - blanking plate with 2 fans
- MPN
- NSYECVT300
- EAN
- 3606480170348
- Category
- Actassi OPB
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYECVT300?

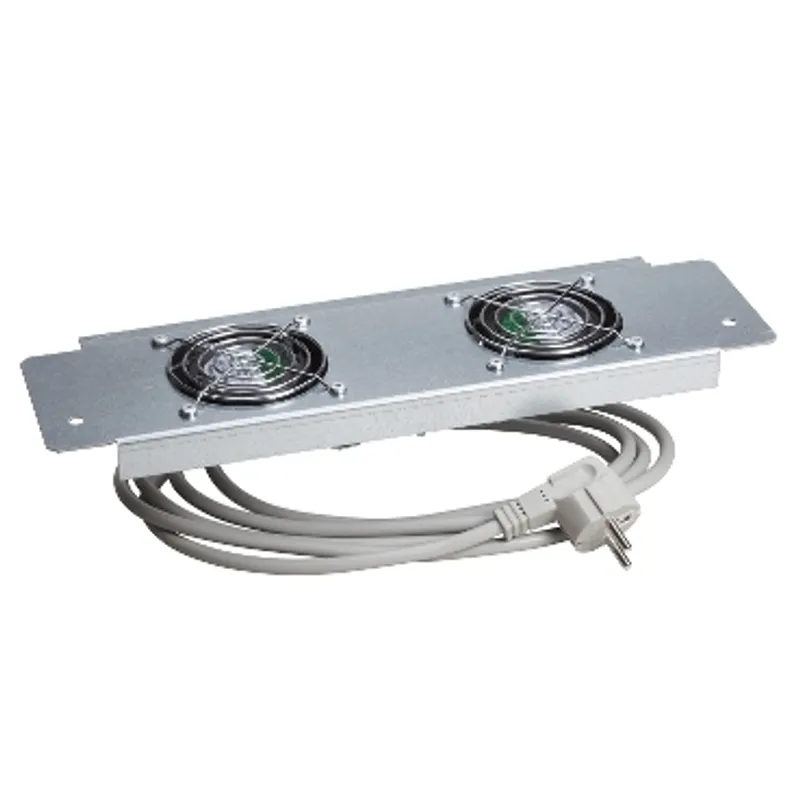

Blanking plate with 2 fans for using in Actassi enclosures The product is made from zinc coated sheet steel Each fun ensures free air flow of 35 m3/h Fans are installed and wired to on the terminal block, including a protection grille Mounted on top or bottom of the enclosure The kit includes fixing elements, 1 plate and 2 m power cord Noice level is 35 dB Cannot be used directly with UK PDU
Specifications
Specifications
| Range | Actassi |
| Product or component type | Blanking plate |
| Accessory / separate part category | Mounting accessory |
| Cable gland type | Ventilated, With 2 fans |
| Noise level | 35 dB |
| Range compatibility | Actassi OPB, Actassi VDC |
| Air flow | 35 m3/h |
| Device composition | Fixing elements, 1 plate, 1 2 m power cord |
| Material | Sheet steel |
| Surface finish | Zinc coated |
| Mounting location | Top or bottom of the enclosure |
| Fixing mode | By screw |
Packaging
| Package 1 | 1 PCE, 47.000 cm × 30.000 cm × 8.000 cm (L × W × H), 1.622 kg |
| Package 2 | 50 P12, 120.000 cm × 80.000 cm × 63.000 cm (L × W × H), 94.000 kg |
