Schneider Electric NSYDCSH2012

Double-chassis coupling set, PanelSeT SFN, PanelSeT SF and SM, for electrical enclosure H2000 W600mm, 576 modules

MPN
NSYDCSH2012
EAN
3606480063954
Category
PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYDCSH2012?

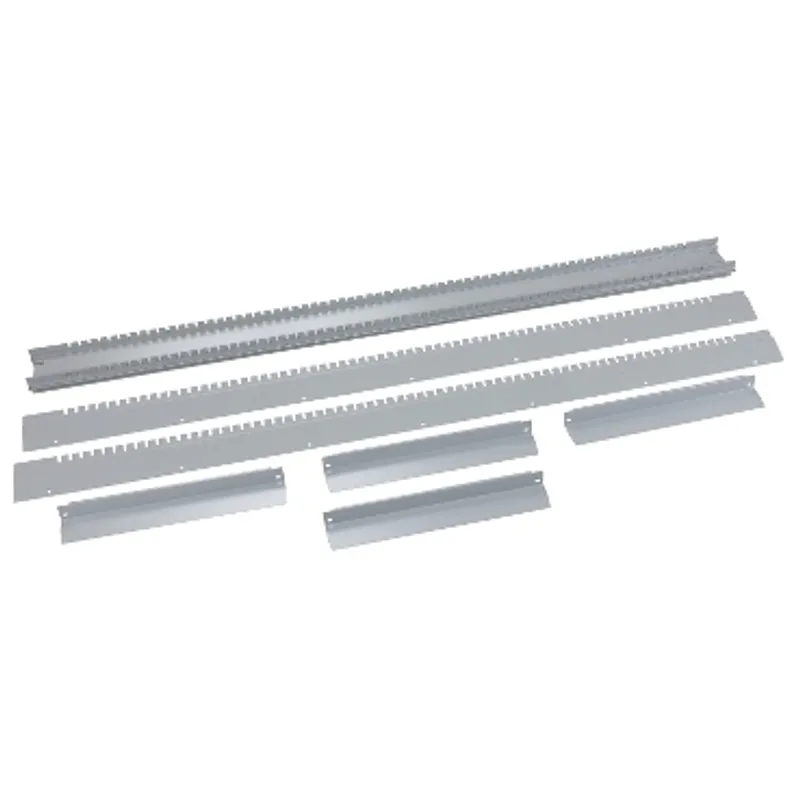

This is a double-chassis coupling set suitable for PanelSeT SFN, PanelSeT SF and PanelSeT SM electrical enclosures. It is designed to be mounted on enclosure´s widths of 1200 and 1600mm. It is made of steel. The color is grey RAL7035. Anti-corrosion protection is ensured by an epoxy-polyester zinc coated coating. The nominal width and height are 1200mm and 2000mm respectively. The real width, height and depth are 1102mm, 1905mm and 100mm respectively. The maximun number of 18mm modules is 576. The kit contains 2 single-chassis coupling sets, 1 intermediate central upright and fixing elements.

Specifications

Specifications

RangePanelSeT
Accessory / separate part categoryMounting accessory
ApplicationMulti-purpose
Product or component typeCoupling kit
For enclosure nominal dimensions-
Mounting locationFront of enclosure
Range compatibilityPanelSeT PanelSeT SM, PanelSeT PanelSeT SF
Device compositionFixing elements, 1 intermediate central upright, 2 single chassis
Quantity per setSet of 1
MaterialSteel
ColourGrey (RAL 7035)
Surface finishEpoxy-polyester powder
Fixing modeBy fixing element
Total number of 18 mm modules576
HeightReal: 1905 mm, Nominal: 2000 mm
WidthReal: 1102 mm, Nominal: 1200 mm
DepthReal : 100 mm
CoverageCore product

Packaging

Package 11 PCE, 197.000 cm × 16.000 cm × 10.000 cm (L × W × H), 18.000 kg
Package 235 P2M, 200.000 cm × 120.000 cm × 67.000 cm (L × W × H), 662.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYDCSH2012: frequently asked questions

When can NSYDCSH2012 be shipped?

NSYDCSH2012 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYDCSH2012 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYDCSH2012 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYDCSH2012, subject to availability and destination.

More Schneider Electric parts

Schneider Electric NSYDCRN88 – Plain door PanelSeT CRN H800xW800 RAL 7035, with lock
Schneider Electric
NSYDCRN88

Plain door PanelSeT CRN H800xW800 RAL 7035, with lock

Schneider Electric NSYDCRNG106 – Plain door PanelSeT CRNG H1000xW600 RAL 7035, with lock
Schneider Electric
NSYDCRNG106

Plain door PanelSeT CRNG H1000xW600 RAL 7035, with lock

Schneider Electric NSYDCRNG108 – Plain door PanelSeT CRNG H1000xW800 RAL 7035, with lock
Schneider Electric
NSYDCRNG108

Plain door PanelSeT CRNG H1000xW800 RAL 7035, with lock

Schneider Electric NSYDCRNG86 – Plain door PanelSeT CRNG H800xW600 RAL 7035, with lock
Schneider Electric
NSYDCRNG86

Plain door PanelSeT CRNG H800xW600 RAL 7035, with lock

Schneider Electric NSYDHLT8080 – Ventilated shelf for heavy load kit, PanelSeT SFN, PanelSeT SF, for electrical enclosure W800 D800mm, steel
Schneider Electric
NSYDHLT8080

Ventilated shelf for heavy load kit, PanelSeT SFN, PanelSeT SF, for electrical enclosure W800 D800mm, steel

Schneider Electric NSYDHSF – PanelSeT SM and SFN, Spacial SF hinges & fixing elements
Schneider Electric
NSYDHSF

PanelSeT SM and SFN, Spacial SF hinges & fixing elements

Schneider Electric NSYDLA112G – Modular distribution chassis 112 modules for NSYPLM86,NSYS3D86,NSYCRN86,NSYS3X86
Schneider Electric
NSYDLA112G

Modular distribution chassis 112 modules for NSYPLM86,NSYS3D86,NSYCRN86,NSYS3X86

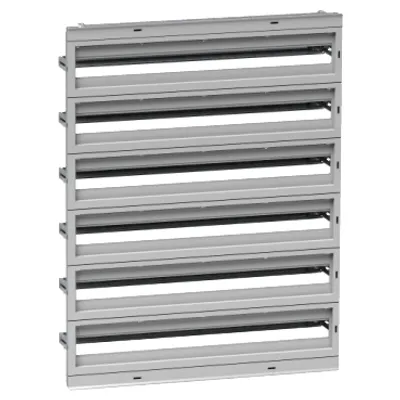

Schneider Electric NSYDLA234G – Modular distribution chassis 234 mod. f/ NSYPLM108,NSYS3D108,NSYCRN108,NSYS3X108
