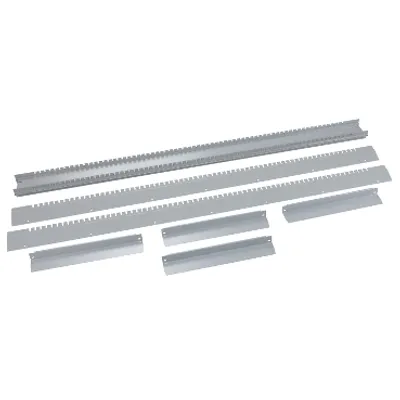

NSYDCSH2012Double-chassis coupling set, PanelSeT SFN, PanelSeT SF and SM, for electrical enclosure H2000 W600mm, 576 modules
Schneider Electric NSYDLA234G
Modular distribution chassis 234 mod. f/ NSYPLM108,NSYS3D108,NSYCRN108,NSYS3X108
- MPN
- NSYDLA234G
- EAN
- 3606480773815
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

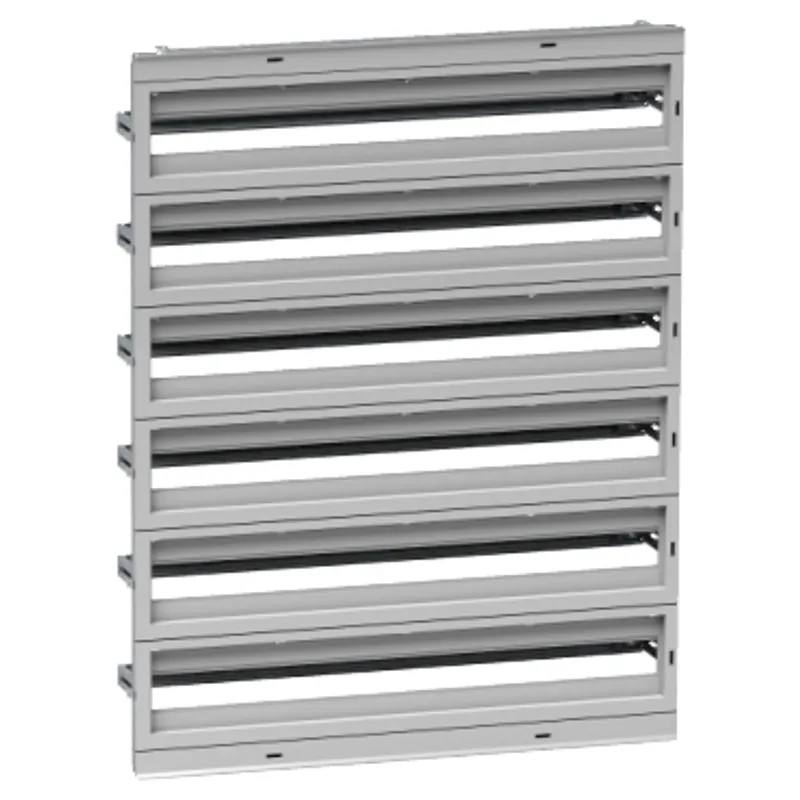

What is the Schneider Electric NSYDLA234G?
DLA chassis for PanelSeT S3D, PanelSeT CRN, PanelSeT S3X and PanelSeT PLM enclosures The chassis is to be fixed on front of enclosure by fixing elements with supports location The width is 760mm The height is 980mm Number of 18mm modules is 234 (1 module = 2 steps = 18 mm) Number of horizontal rows is 6 The depth of the chassis can be adjusted in height from 40 to 85mm for DIN rail The front panel is made from self-extinguishing insulating and chassis structure and rails are made from steel The front has a grey (RAL 7035) color Number of cut-outs is 6 The kit is made up of 1 chassis structure, 2 finish covers, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm² and 6 front panels with 35mm DIN rails
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Application | Multi-purpose, Modular distribution application |
| Product or component type | Chassis |
| Device short name | DLA |
| For enclosure nominal dimensions | - |
| Mounting location | Front of enclosure |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Device composition | 1 chassis structure, 2 finish cover, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 6 front panels with 35 mm DIN rail |
| Quantity per set | Set of 1 |
| Material | Front panel: self-extinguishing insulating, Chassis structure and rails: steel |
| Colour | Front panel: grey (RAL 7035) |
| Fixing mode | By fixing element - on front with supports location |
| Adjustment | In height from 40 to 85 mm for DIN rail |
| Number of horizontal rows | 6 |
| Total number of 18 mm modules | 234 |
| Type of front plate | Plain and cut-out plates |
| Number of cut-out | 6 cut-outs |
| Height | 980 mm |
| Width | 760 mm |
Packaging
| Package 1 | 1 PCE, 99.000 cm × 77.500 cm × 15.000 cm (L × W × H), 12.200 kg |
| Package 2 | 8 PAM, 120.000 cm × 100.000 cm × 125.000 cm (L × W × H), 115.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYDLA234G: frequently asked questions
When can NSYDLA234G be shipped?
NSYDLA234G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYDLA234G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYDLA234G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYDLA234G, subject to availability and destination.
More Schneider Electric parts
Schneider Electric

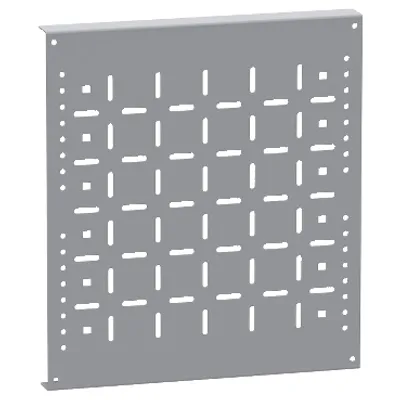

NSYDHLT8080Ventilated shelf for heavy load kit, PanelSeT SFN, PanelSeT SF, for electrical enclosure W800 D800mm, steel
Schneider Electric

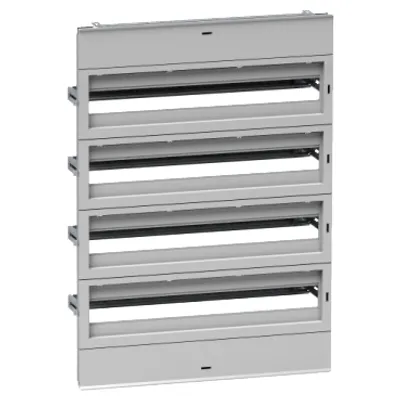

NSYDLA112GModular distribution chassis 112 modules for NSYPLM86,NSYS3D86,NSYCRN86,NSYS3X86
Schneider Electric

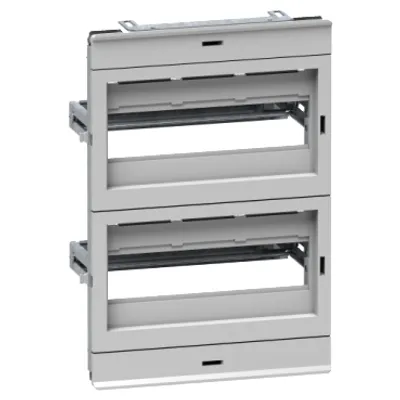

NSYDLA24GModular distribution chassis 24 modules for NSYPLM43,NSYS3D43,NSYCRN43,NSYS3X43
Schneider Electric

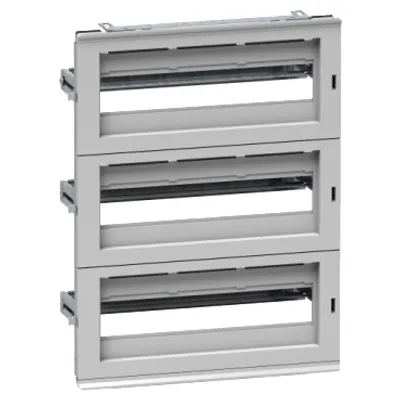

NSYDLA48GModular distribution chassis 48 modules for NSYPLM54,NSYS3D54,NSYCRN54,NSYS3X54
Schneider Electric

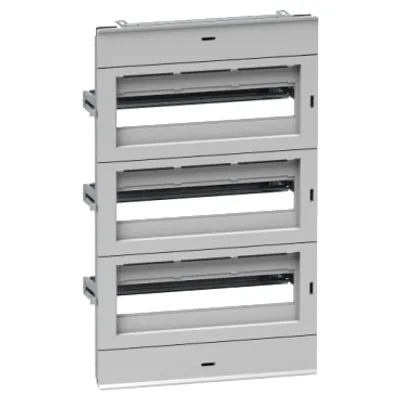

NSYDLA48PGModular distribution chassis 48 modules for NSYPLM64,NSYS3D64,NSYCRN64,NSYS3X64
Schneider Electric

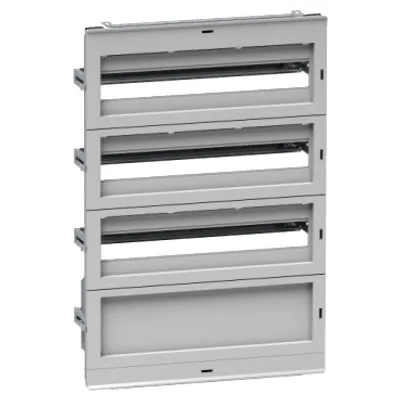

NSYDLA66GModular distribution chassis 66 modules for NSYPLM75,NSYS3D75,NSYCRN75,NSYS3X75
