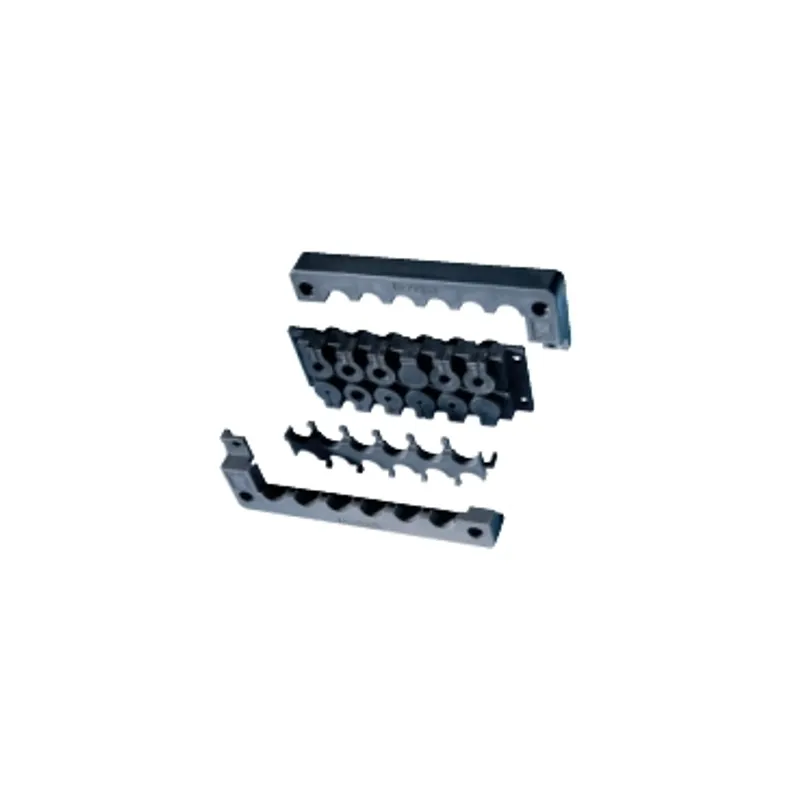

Cable entry system type Multi-CS dimensions 112 x 36 mm and 9 openings
MPN: NSYDCD249 · Brand: Schneider Electric
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT CRN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.21 kg |
Shipping & availability
When can NSYDCD249 be shipped?
NSYDCD249 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYDCD249 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYDCD249 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYDCD249, subject to availability and destination.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable entry |
| Accessory / separate part category | Cable management accessory |
| Application | Multi-purpose |
| Mounting location | Enclosure bottom |
| Cable entry | 8 grommets 2…12 mm, 1 grommet 12…24 mm |
| Quantity per set | Set of 1 |
| Material | Polypropylene |
| Height | 148 mm |
| Width | 58 mm |
| Depth | 15 mm |
| Net weight | 0.209 kg |
| Cut-out dimensions | 112 x 36 mm |
| resistance to chemical agents | Good resistance to fuels, Good resistant to alcohols, Good resistance to weak acids and bases, Good resistance to mineral oils and greases |
| Flame retardance | V0 conforming to UL 94 |
| Ambient air temperature for operation | -30…100 °C |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.000 cm |
| Package 1 Width | 6.000 cm |
| Package 1 Length | 20.500 cm |
| Package 1 Weight | 196.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 20.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.278 kg |
| Unit Type of Package 3 | PAM |
| Number of Units in Package 3 | 300 |
| Package 3 Height | 85.000 cm |
| Package 3 Width | 100.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 81.900 kg |
| Warranty | 18 months |
