Schneider Electric NSYDCD248

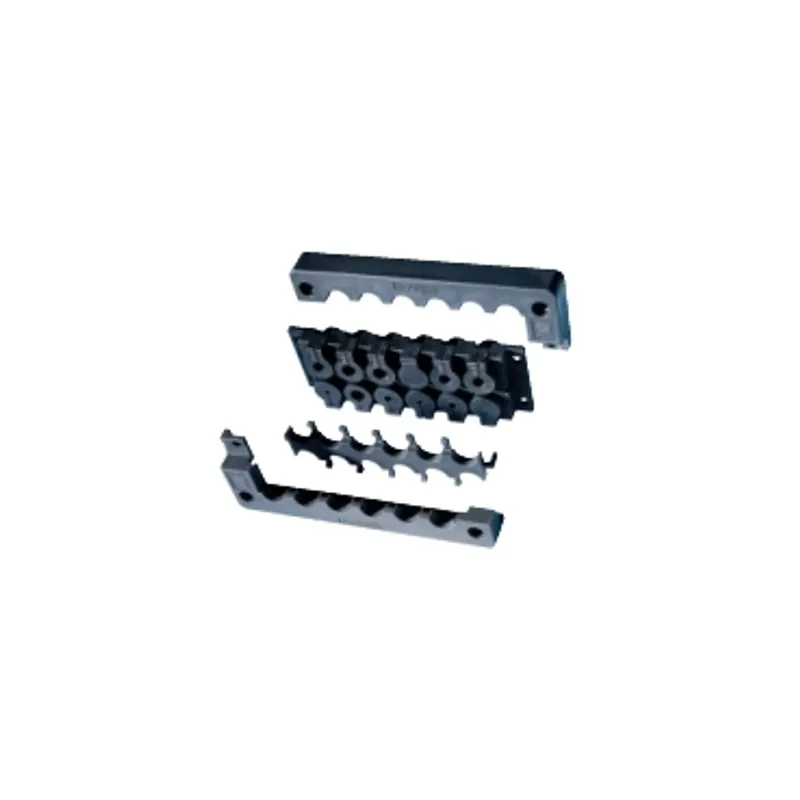

Cable entry system type Multi-CS dimensions 112 x 36 mm and 8 openings

MPN: NSYDCD248
Category: PanelSeT CRN

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYDCD248?

Multi-purpose cable entry for enclosures. The product is made of polypropylene. The width is 58mm. The height is 148mm. The depth is 15mm. The cable entry is to be mounted on enclosure bottom. Ingress protection rating is IP65, ensuring the level of cable protection when using in harsh environments. Flame resistance V0 conforming to UL 94. Flame resistance V0 conforming to UL 94.

Specifications

Range	PanelSeT
Product or component type	Cable entry
Accessory / separate part category	Cable management accessory
Application	Multi-purpose
Mounting location	Enclosure bottom
Cable entry	6 grommets 2…12 mm, 2 grommets 12…24 mm
Quantity per set	Set of 1
Material	Polypropylene
Height	148 mm
Width	58 mm
Depth	15 mm
Net weight	0.21 kg
Cut-out dimensions	112 x 36 mm
resistance to chemical agents	Good resistance to weak acids and bases, Good resistance to mineral oils and greases, Good resistant to alcohols, Good resistance to fuels
Flame retardance	V0 conforming to UL 94
Ambient air temperature for operation	-30…100 °C
IP degree of protection	IP65 conforming to IEC 60529

Packaging

Package 1	1 PCE, 20.500 cm × 6.000 cm × 12.000 cm (L × W × H), 196.000 g
Package 2	10 CAR, 40.000 cm × 30.000 cm × 20.000 cm (L × W × H), 2.278 kg
Package 3	300 PAM, 120.000 cm × 100.000 cm × 85.000 cm (L × W × H), 81.900 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYDCD248PDF
