Schneider Electric NSYDCD2412

Cable entry system type Multi-CS dimensions 112 x 36 mm and 12 openings

MPN: NSYDCD2412
Category: PanelSeT CRN

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYDCD2412?

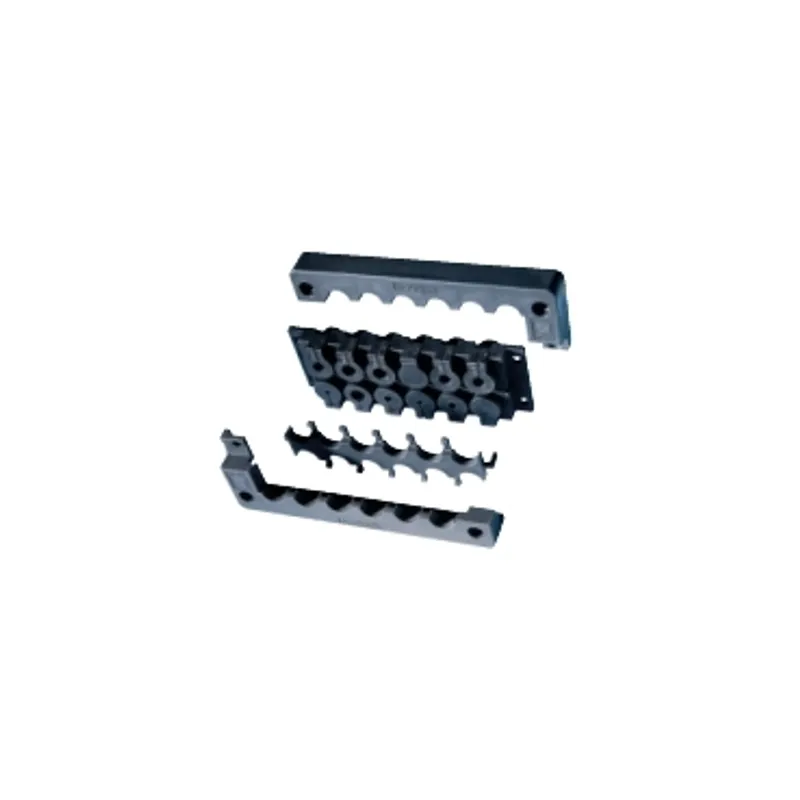

Multi-purpose cable entry for enclosures. The product is made of polypropylene. The width is 58mm. The height is 148mm. The depth is 18mm. The cable entry is to be mounted on enclosure bottom. Ingress protection rating is IP65, ensuring the level of cable protection when using in harsh environments. Flame resistance V0 conforming to UL 94. Flame resistance V0 conforming to UL 94.

Specifications

Range	PanelSeT
Product or component type	Cable entry
Accessory / separate part category	Cable management accessory
Application	Multi-purpose
Mounting location	Enclosure bottom
Cable entry	12 grommets 2…12 mm
Quantity per set	Set of 1
Material	Polypropylene
Height	148 mm
Width	58 mm
Depth	18 mm
Net weight	0.205 kg
Cut-out dimensions	112 x 36 mm
resistance to chemical agents	Good resistant to alcohols, Good resistance to mineral oils and greases, Good resistance to weak acids and bases, Good resistance to fuels
Flame retardance	V0 conforming to UL 94
Ambient air temperature for operation	-30…100 °C
IP degree of protection	IP65 conforming to IEC 60529

Packaging

Package 1	1 PCE, 20.500 cm × 6.000 cm × 12.000 cm (L × W × H), 192.000 g
Package 2	10 CAR, 40.000 cm × 30.000 cm × 20.000 cm (L × W × H), 2.228 kg
Package 3	300 PAM, 120.000 cm × 100.000 cm × 85.000 cm (L × W × H), 78.840 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYDCD2412PDF

NSYDCD2412: frequently asked questions

When can NSYDCD2412 be shipped?

NSYDCD2412 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYDCD2412 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYDCD2412 and we'll include express shipping options in our reply.
