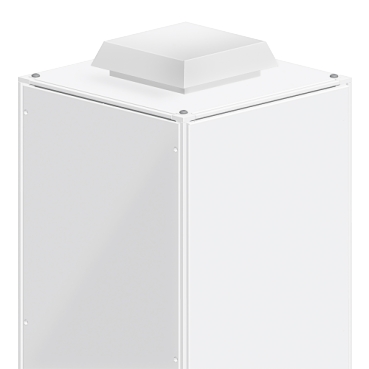

ClimaSys forced vent. roof, 575m3/h, 230V, with roof outlet grille and filter G2, white (RAL 9003)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ClimaSys CV |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 6.01 kg |
Shipping & availability
When can NSYCVF575M230MB be shipped?
NSYCVF575M230MB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCVF575M230MB in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCVF575M230MB and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCVF575M230MB, subject to availability and destination.
Schneider Electric ClimaSys forced vent. roof, 575m3/h, 230V, with roof outlet grille and filter G2, white (RAL 9003), manufacturer part number NSYCVF575M230MB. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | Top hood with fan |
| Range compatibility | Prisma Prisma P, Prisma Prisma PH, Prisma Prisma iPM M |
| Type of filter | G2 |
| Flow rate | Free flow rate: 575 m3/h at 50 Hz |
| Input voltage | 230 V 50/60 Hz |
| Absorbed power | 85 W |
| Noise level < at | 64 dB |
| Height | External: 96 mm |
| Width | External: 340 mm |
| Depth | External : 340 mm |
| Cut-out dimensions | 228 x 228 mm |
| Material | Hood: steel |
| Colour | Hood: signal white (RAL 9003) |
| IP degree of protection | IP54 |
| Device composition | 1 hood: top of enclosure, 1 fan, 1 fixing elements |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.000 cm |
| Package 1 Width | 35.000 cm |
| Package 1 Length | 35.000 cm |
| Package 1 Weight | 6.012 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 125.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 374.000 kg |
| Warranty (in months) | 18 |
