Schneider Electric NSYCSHB2012

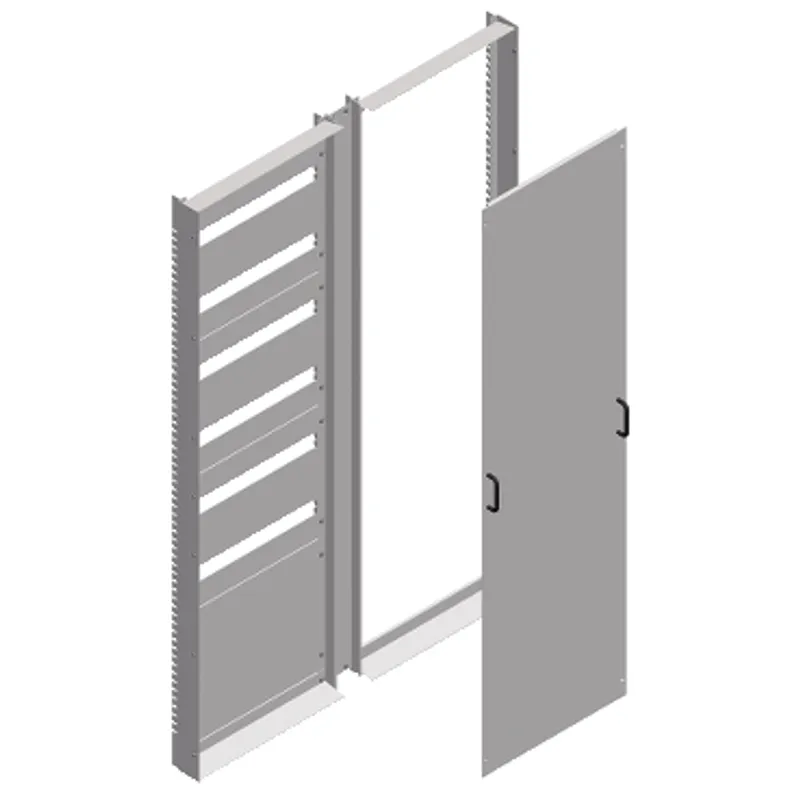

Chassis-coupling set with busbars zone, PanelSeT SFN, PanelSeT SF and SM, for electrical enclosure H2000 W1200mm
- MPN
- NSYCSHB2012
- EAN
- 3606480063909
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSYCSHB2012 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCSHB2012?
Coupling kit for Spacial SM and Spacial SF enclosures The coupling kit is to be fixed on front of enclosure by fixing elements The real width is 1102mm and nominal width is 1200mm The real height is 1905mm and nominal height is 2000mm The real depth is 100mm Number of 18mm modules is 432 (1 module = 2 steps = 18 mm) The product is made from grey steel (RAL 7035)
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Application | Multi-purpose |
| Product or component type | Coupling kit |
| For enclosure nominal dimensions | - |
| Mounting location | Front of enclosure |
| Range compatibility | PanelSeT PanelSeT SM, PanelSeT PanelSeT SF |
| Device composition | Fixing elements, 1 busbar blanking cover plate, 1 intermediate central upright, 1 single chassis |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By fixing element |
| Total number of 18 mm modules | 432 |
| Height | Real: 1905 mm, Nominal: 2000 mm |
| Width | Real: 1102 mm, Nominal: 1200 mm |
| Depth | Real : 100 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 197.000 cm × 17.000 cm × 10.000 cm (L × W × H), 29.000 kg |
| Package 2 | 10 P2M, 120.000 cm × 200.000 cm × 67.000 cm (L × W × H), 312.000 kg |
