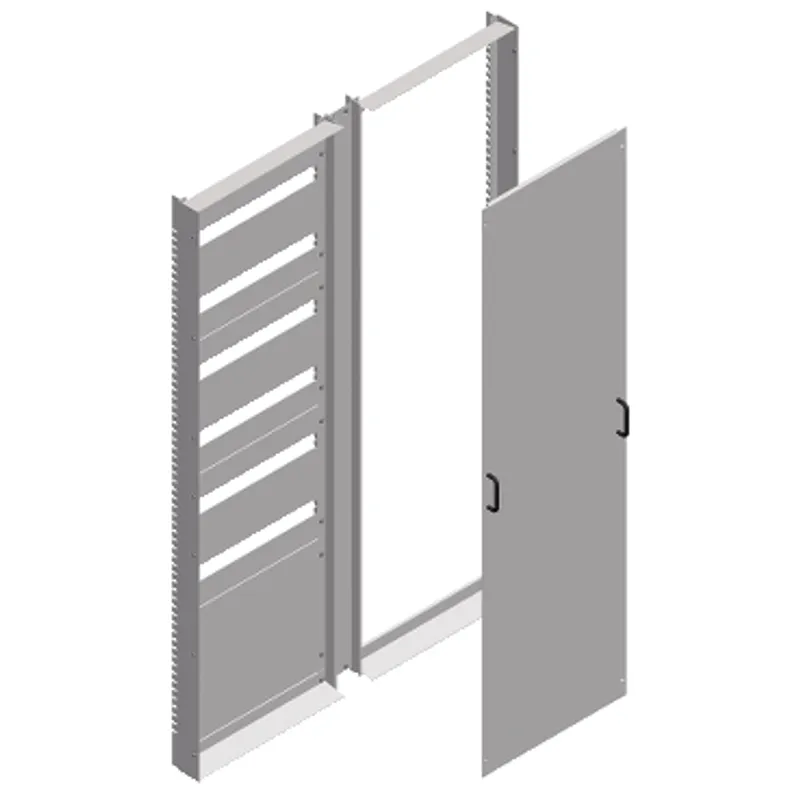

Schneider Electric NSYCSHB2010
Chassis-coupling set with busbars zone, PanelSeT SFN, PanelSeT SF and SM, for electrical enclosure H2000 W1000mm
- MPN
- NSYCSHB2010
- EAN
- 3606480063893
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSYCSHB2010 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCSHB2010?
Coupling kit for Spacial SM and Spacial SF enclosures The coupling kit is to be fixed on front of enclosure by fixing elements The real width is 902mm and nominal width is 1000mm The real height is 1905mm and nominal height is 2000mm The real depth is 100mm Number of 18mm modules is 288 (1 module = 2 steps = 18 mm) The product is made from grey steel (RAL 7035)
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Application | Multi-purpose |
| Product or component type | Coupling kit |
| For enclosure nominal dimensions | - |
| Mounting location | Front of enclosure |
| Range compatibility | PanelSeT PanelSeT SM, PanelSeT PanelSeT SF |
| Device composition | Fixing elements, 1 busbar blanking cover plate, 1 intermediate central upright, 1 single chassis |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By fixing element |
| Total number of 18 mm modules | 288 |
| Height | Real: 1905 mm, Nominal: 2000 mm |
| Width | Real: 902 mm, Nominal: 1000 mm |
| Depth | Real : 100 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 198.000 cm × 31.000 cm × 8.000 cm (L × W × H), 25.400 kg |
| Package 2 | 24 P2M, 200.000 cm × 120.000 cm × 57.000 cm (L × W × H), 609.600 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCSHB2010: frequently asked questions
Can I still buy the NSYCSHB2010 now that it is discontinued?
Yes. Schneider Electric has discontinued the NSYCSHB2010, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can NSYCSHB2010 be shipped?
NSYCSHB2010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCSHB2010 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCSHB2010 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCSHB2010, subject to availability and destination.
