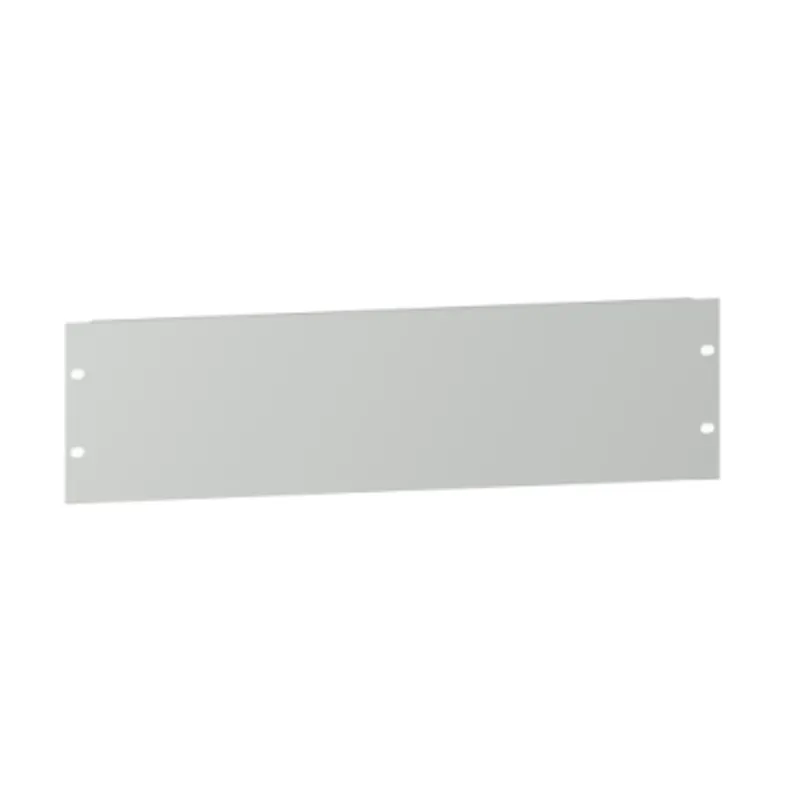

Actassi - 19" plain plate - 3U - steel - RAL7035 - 15/10mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT CRN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 676 kg |
Shipping & availability
When can NSYCRTM3U be shipped?
NSYCRTM3U is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCRTM3U in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCRTM3U and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRTM3U, subject to availability and destination.
Front panel fixed to the 19-inch uprights for cable management. Cover made of sheet steel 15/10 mm thick, steel front panel, RAL7035, light grey. 3U high panel.
Specifications
Specifications
| Range of product | Actassi |
| Product or component type | 19" front panel |
| Device application | Electronic application, Multi-purpose |
| Colour | Grey (RAL 7035) |
| Mounting location | On vertical uprights |
| Number of rack unit | 3U |
| Mounting support | 19" rack, front or rear |
| Product compatibility | Actassi enclosure, PanelSeT SF-S, PanelSeT SF-E, PanelSeT VDM, PanelSeT PLA |
| Material | Sheet steel |
| Surface finish | Epoxy-polyester powder |
| thickness | 1.5 mm |
| Fixing mode | By 19" fixing element: 19" uprights of rack |
| Number of units 19" | 3 |
| Height | 133.35 mm |
| Width | 465 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 14.000 cm |
| Package 1 Length | 50.000 cm |
| Package 1 Weight | 676.000 g |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 200 |
| Package 2 Height | 43.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 150.000 kg |
| Warranty | 18 months |
More Schneider Electric parts
Available on requestActassi - 19" front panel 1U with steel cable guides 4H - RAL7035

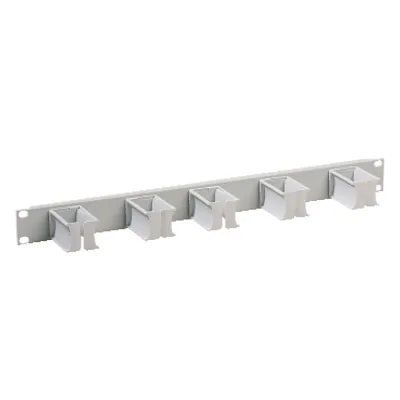

Available on requestActassi - 19" front panel 1U with 5 insulating cable guides - RAL7035
Available on requestActassi - 19" plain plate - 2U - steel - RAL7035 - 15/10mm

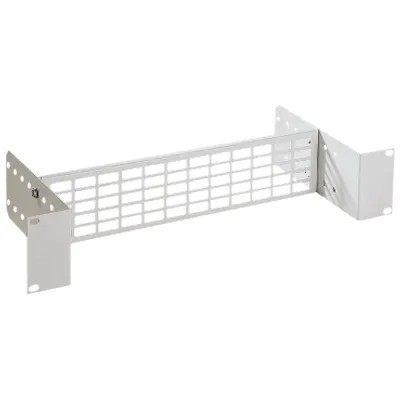

Available on requestActassi - 19" support 2U adjustable in depth to fix non 19" equipment
