Schneider Electric NSYCRTM5U
Actassi - 19" plain plate - 5U - steel - RAL7035 - 15/10mm
- MPN
- NSYCRTM5U
- EAN
- 3606480173448
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCRTM5U?

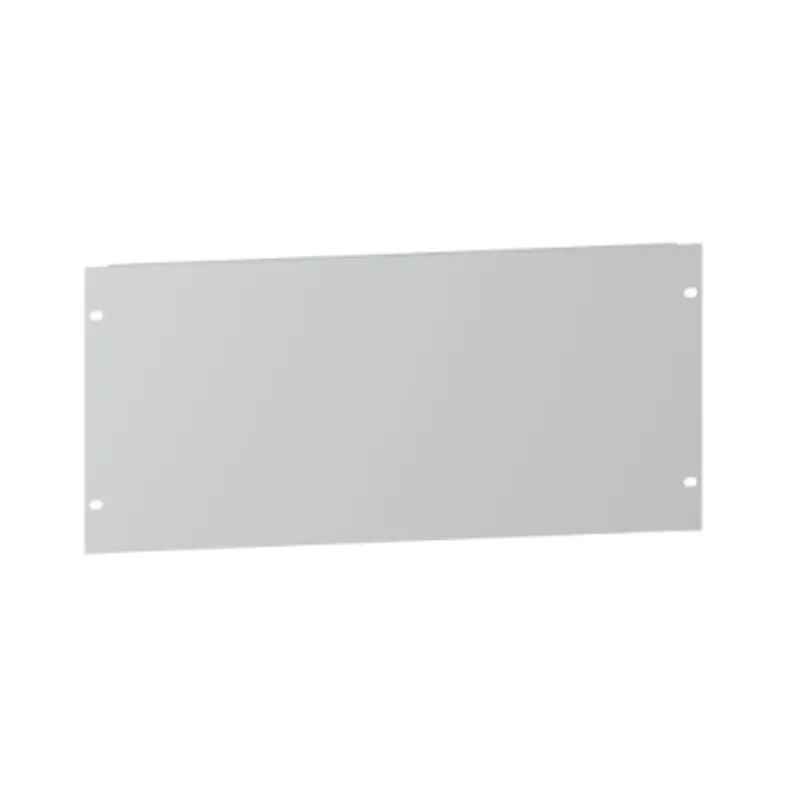

Front panel fixed to the 19-inch uprights for cable management. Cover made of sheet steel 15/10 mm thick, steel front panel, RAL7035, light grey. 5U high panel.
Specifications
Specifications
| Range of product | Actassi |
| Product or component type | 19" front panel |
| Device application | Electronic application, Multi-purpose |
| Colour | Grey (RAL 7035) |
| Mounting location | On vertical uprights |
| Number of rack unit | 5U |
| Mounting support | 19" rack, front or rear |
| Product compatibility | Actassi enclosure, PanelSeT SF-S, PanelSeT SF-E, PanelSeT VDM, PanelSeT PLA |
| Material | Sheet steel |
| Surface finish | Epoxy-polyester powder |
| thickness | 1.5 mm |
| Fixing mode | By 19" fixing element: 19" uprights of rack |
| Number of units 19" | 5 |
| Height | 222.25 mm |
| Width | 465 mm |
Packaging
| Package 1 | 1 PCE, 48.500 cm × 22.000 cm × 2.000 cm (L × W × H), 1.088 kg |
| Package 2 | 128 P12, 120.000 cm × 80.000 cm × 56.000 cm (L × W × H), 152.000 kg |
