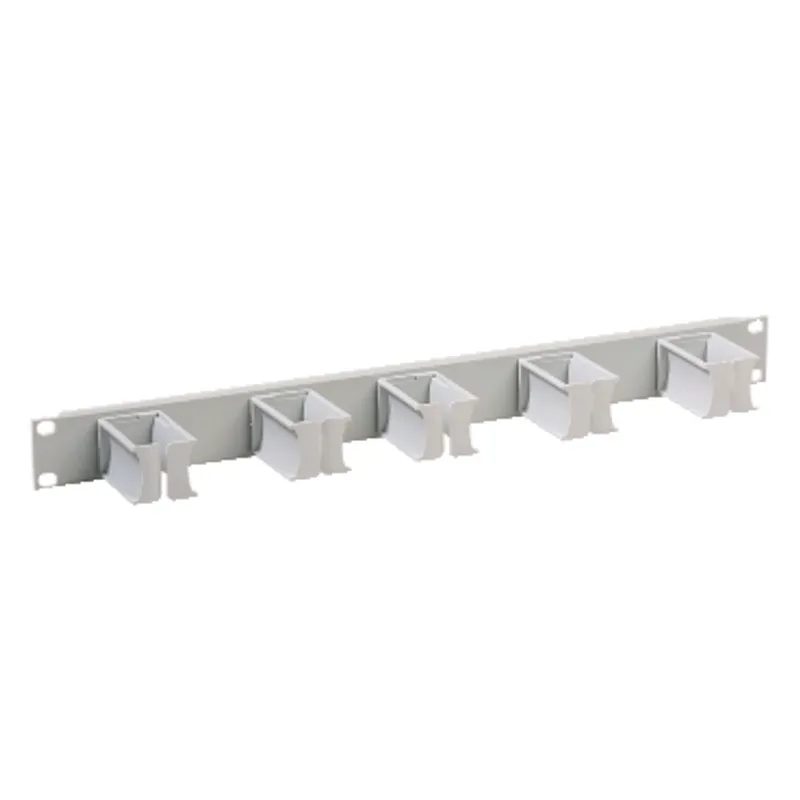

Actassi - 19" front panel 1U with 5 insulating cable guides - RAL7035
Front panel fixed to the 19-inch uprights with insulating guides for cable management. Sheet steel, RAL7035, light grey. Composed by 5 guides horizontally, 1U high panel.
| Range of product | Actassi |
| Product or component type | 19" front panel |
| Device application | Electronic application, Multi-purpose |
| Quantity per set | Set of 1 |
| Colour | Grey (RAL 7035) |
| Range compatibility | Actassi |
| Number of rack unit | 1U |
| Mounting support | 19" rack, front or rear |
| Product compatibility | Actassi enclosure, PanelSeT SF-S, PanelSeT SF-E, PanelSeT VDM, PanelSeT PLA |
| Device composition | 1 19" plate, 5 guide |
| Material | Plate: sheet steel, Guide: plastic |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By 19" fixing element: 19" uprights of rack |
| Adjustment | Horizontal, vertical and 45º positions |
| Number of units 19" | 1 |
| Height | 44.45 mm |
| Width | 465 mm |
| Package 1 | 1 PCE, 49.000 cm × 4.500 cm × 5.500 cm (L × W × H), 346.000 g |
