Schneider Electric NSYCRN22150

PanelSeT CRN plain door w/o mount.plate. H200xW200xD150 IP66 IK10 RAL7035..

MPN
NSYCRN22150
Category
PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCRN22150?

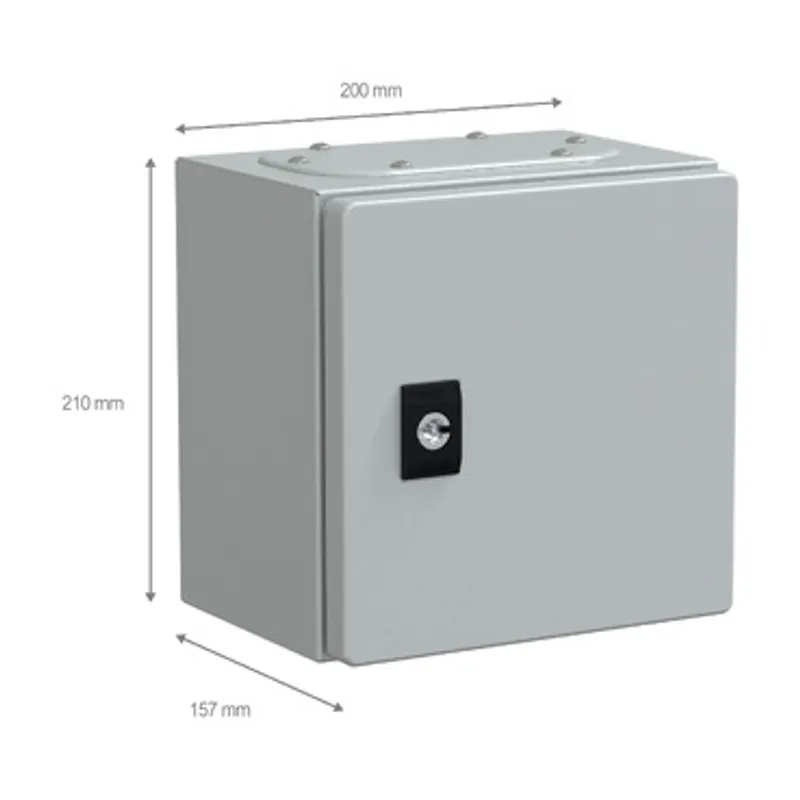

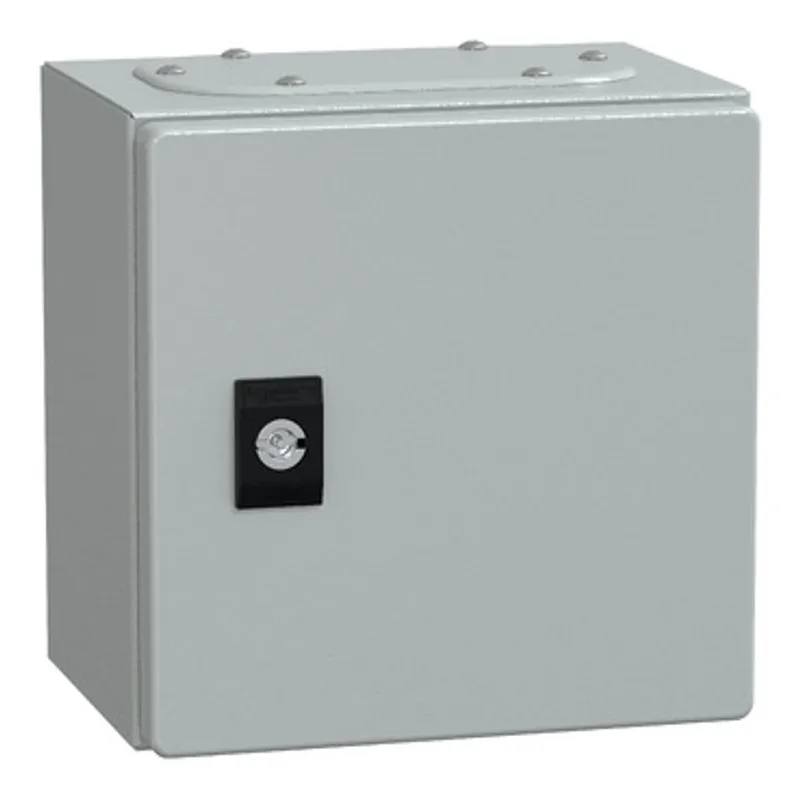

Spacial CRN steel wall-mounting enclosure is designed for multi-purpose applications It is certified by UL, cUL, and DNV-GL, and has an IK10 (IEC62262) rating and IP66 (IEC60529) rating, making it suitable for use in harsh environments This enclosure has a nominal height, width, and depth of 200mm, 200mm, and 150mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a plain door, a lock, and two cable gland plates (top and bottom) The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plates can be removed for maintenance purposes The net weight of the enclosure is 2,52kg

Specifications

Specifications

RangePanelSeT
Product namePanelSeT CRN
ApplicationMulti-purpose
CategoryCompact enclosure
Enclosure nominal height200 mm
Enclosure nominal width200 mm
Enclosure nominal depth150 mm
Installation accessory typeWall-mounting
Device composition1 body, 1 door, 1 lock, 2 cable gland plate: top and bottom
Door typePlain
Mounting plate descriptionWithout mounting plate
body typeSides made from a single folded section, Back welded with double profile forming a protected sealed area
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 mm double-bar lock
Type of gland plateStandard
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws
MaterialBody: steel
Surface finishEpoxy-polyester powder
ColourGrey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationsUL, cUL, DNV-GL
Net weight2.52 kg
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK10 conforming to IEC 62262
CoverageCore product

Packaging

Package 11 PCE, 21.500 cm × 21.500 cm × 16.500 cm (L × W × H), 2.520 kg
Package 220 PAM, 120.000 cm × 100.000 cm × 38.000 cm (L × W × H), 65.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYCRN22150: frequently asked questions

When can NSYCRN22150 be shipped?

NSYCRN22150 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYCRN22150 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYCRN22150 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRN22150, subject to availability and destination.

More Schneider Electric parts

Schneider Electric NSYCRN128300T – Glazed steel door, PanelSeT CRN, without mounting plate, 1200x800x300mm, IP66, IK08, RAL7035
Schneider Electric
NSYCRN128300T

Glazed steel door, PanelSeT CRN, without mounting plate, 1200x800x300mm, IP66, IK08, RAL7035

Schneider Electric NSYCRN128400 – Plain steel door, PanelSeT CRN, without mounting plate, 1200x800x400mm, IP66, IK10, RAL7035
Schneider Electric
NSYCRN128400

Plain steel door, PanelSeT CRN, without mounting plate, 1200x800x400mm, IP66, IK10, RAL7035

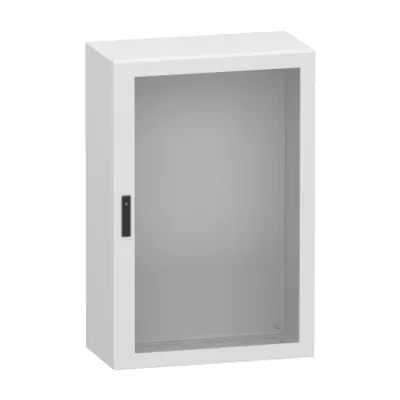

Schneider Electric NSYCRN128400T – Glazed steel door, PanelSeT CRN, without mounting plate, 1200x800x400mm, IP66, IK08, RAL7035
