Schneider Electric NSYCRN128400

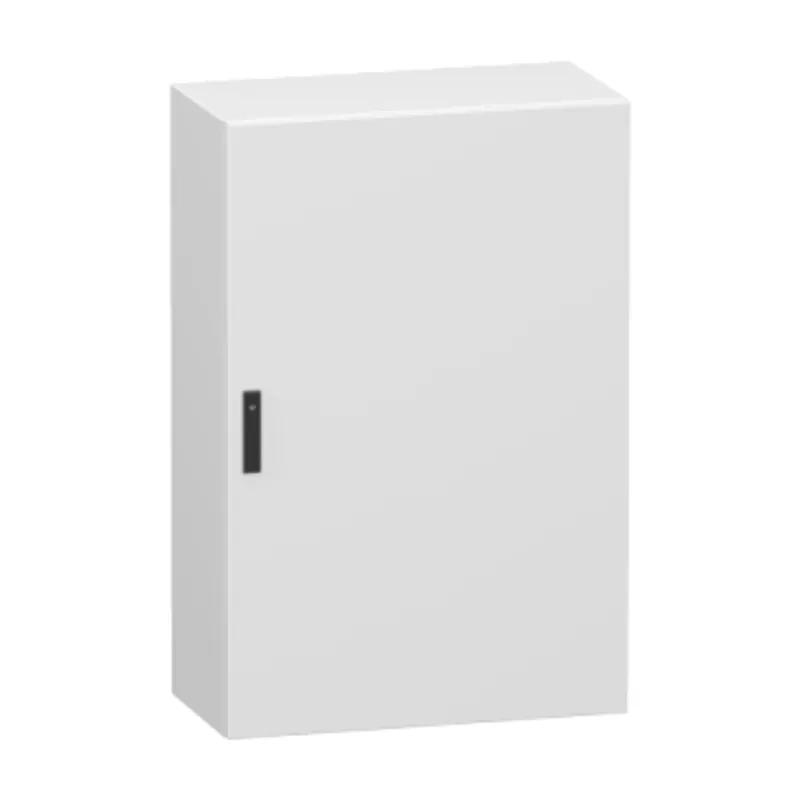

Plain steel door, PanelSeT CRN, without mounting plate, 1200x800x400mm, IP66, IK10, RAL7035

MPN
NSYCRN128400
Category
PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCRN128400?

This PanelSeT CRN is a wall-mounting enclosure that is suitable for multi-purpose applications. It has a nominal height, width, and depth of 1200 mm, 800 mm and 400 mm, respectively. The body of the enclosure are made of galvanized steel for durability. The door is made of steel sheets, has an aperture up to 120 degrees and is reversible, meaning it can be opened from either side. It has a 3-mm standard double-bar lock. An epoxy-polyester powder finish provides a smooth appearance. The enclosure has a grey (RAL 7035) color. The enclosure has IP66 and UL Types 1, 2, 3, 3R, 5, 12 and 13 rating, which makes it resistant to dust, water and oil ingress. The enclosure has IP66 and UL Types 1, 2, 3, 3R, 5, 12 and 13 rating, which makes it resistant to dust, water and oil ingress.

Specifications

Specifications

RangePanelSeT
Product namePanelSeT CRN
ApplicationMulti-purpose
CategoryCompact enclosure

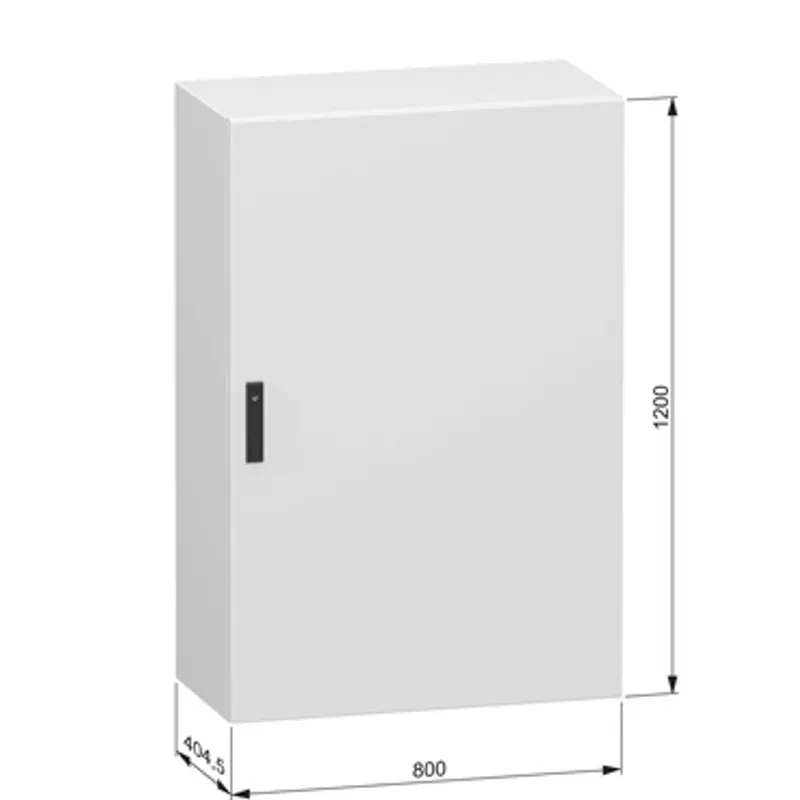

Enclosure nominal height1200 mm
Enclosure nominal width800 mm
Enclosure nominal depth400 mm
Installation accessory typeWall-mounting
Device composition1 body, 1 door, 1 lock, 2 cable gland plate: bottom
Door typePlain
Mounting plate descriptionWithout mounting plate
body typeSingle piece body
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 points lock, 5 mm double-bar
Type of gland plateStandard
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws
MaterialBody: steel
Surface finishEpoxy-polyester powder
ColourGrey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationscUL, UL
Net weight52.7 kg
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK10 conforming to IEC 62262
CoverageCore product

Packaging

Package 11 PCE, 49.000 cm × 84.500 cm × 135.000 cm (L × W × H), 51.500 kg
