Schneider Electric NSYCRN1410300D

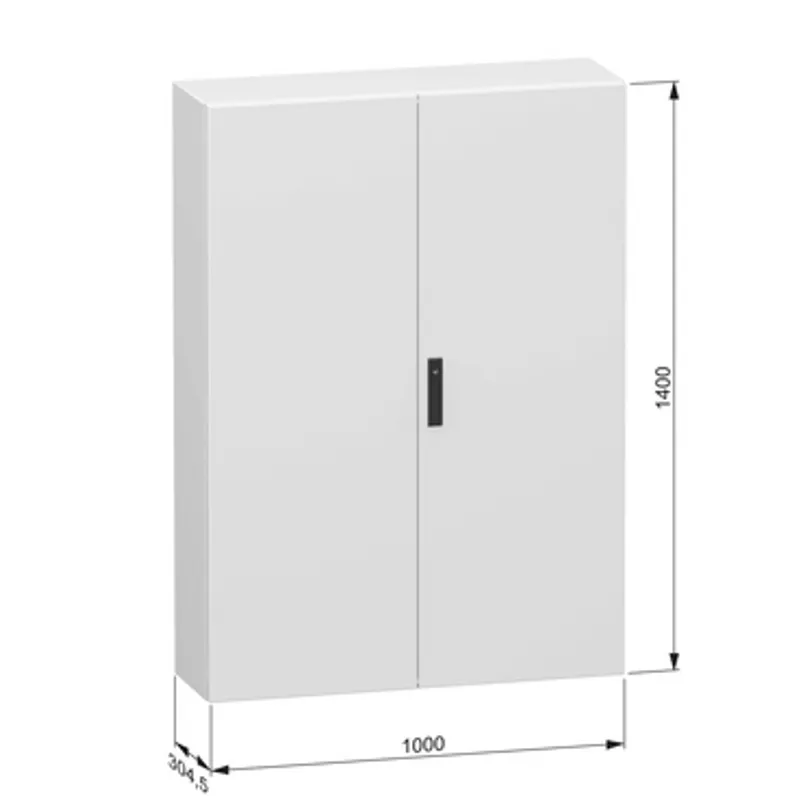

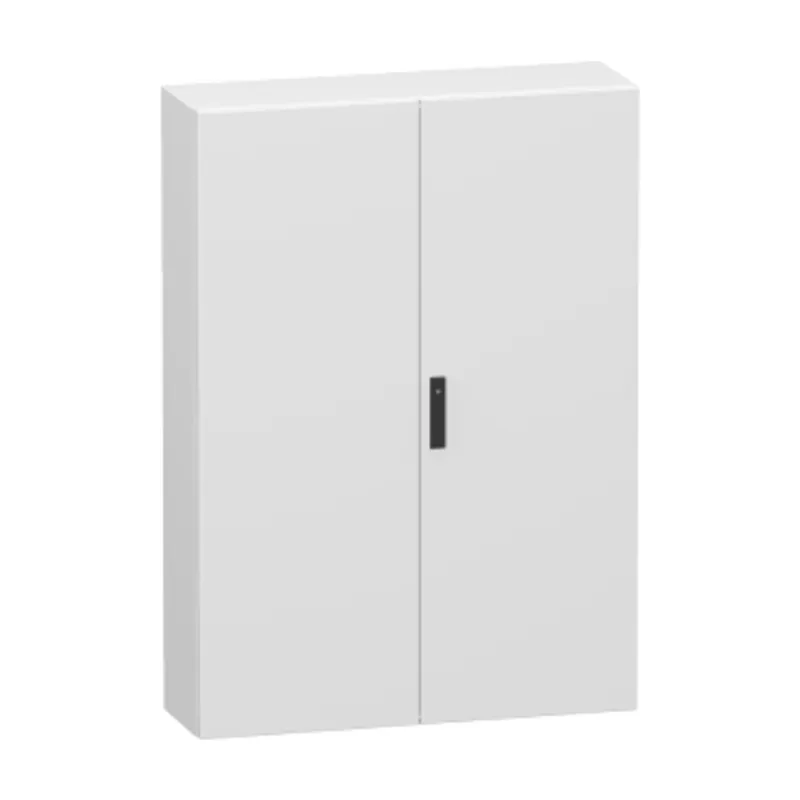

Double plain steel door, PanelSeT CRN, without mounting plate, 1400x1000x300mm, IP55, IK10, RAL7035

MPN
NSYCRN1410300D
Category
PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCRN1410300D?

This PanelSeT CRN is a double-door wall-mounting double-door enclosure that is suitable for multi-purpose applications. It has a nominal height, width, and depth of 1400 mm, 1000 mm and 300 mm, respectively. The body of the enclosure are made of galvanized steel for durability. The doors are made of steel sheets, have an aperture up to 120 degrees and are reversible, meaning they can be opened from either side. It has a 3-mm standard double-bar lock. An epoxy-polyester powder finish provides a smooth appearance. The enclosure has a grey (RAL 7035) color. The enclosure has IP55 and UL Types 1, 12 and 13 rating, which makes it resistant to dust, water and oil ingress. The enclosure has IP55 and UL Types 1, 12 and 13 rating, which makes it resistant to dust, water and oil ingress.

Specifications

Specifications

RangePanelSeT
Product namePanelSeT CRN
ApplicationMulti-purpose
CategoryCompact enclosure
Enclosure nominal height1400 mm
Enclosure nominal width1000 mm
Enclosure nominal depth300 mm
Installation accessory typeWall-mounting
Device composition1 body, 1 lock, 2 cable gland plate: bottom, 2 door
Door typePlain
Mounting plate descriptionWithout mounting plate
body typeSingle piece body
Number of doorsFront face: 2 door(s)
Door opening sideReversible (120 °)
Lock type3 points lock, 5 mm double-bar
Type of gland plateStandard
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws
MaterialBody: steel
Surface finishEpoxy-polyester powder
ColourGrey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationscUL, UL
Net weight89.5 kg
IP degree of protectionIP55 conforming to IEC 60529
IK degree of protectionIK10 conforming to IEC 62262
CoverageCore product

Packaging

Package 11 PCE, 39.000 cm × 105.000 cm × 153.000 cm (L × W × H), 66.800 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYCRN1410300D: frequently asked questions

When can NSYCRN1410300D be shipped?

NSYCRN1410300D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYCRN1410300D in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYCRN1410300D and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRN1410300D, subject to availability and destination.
