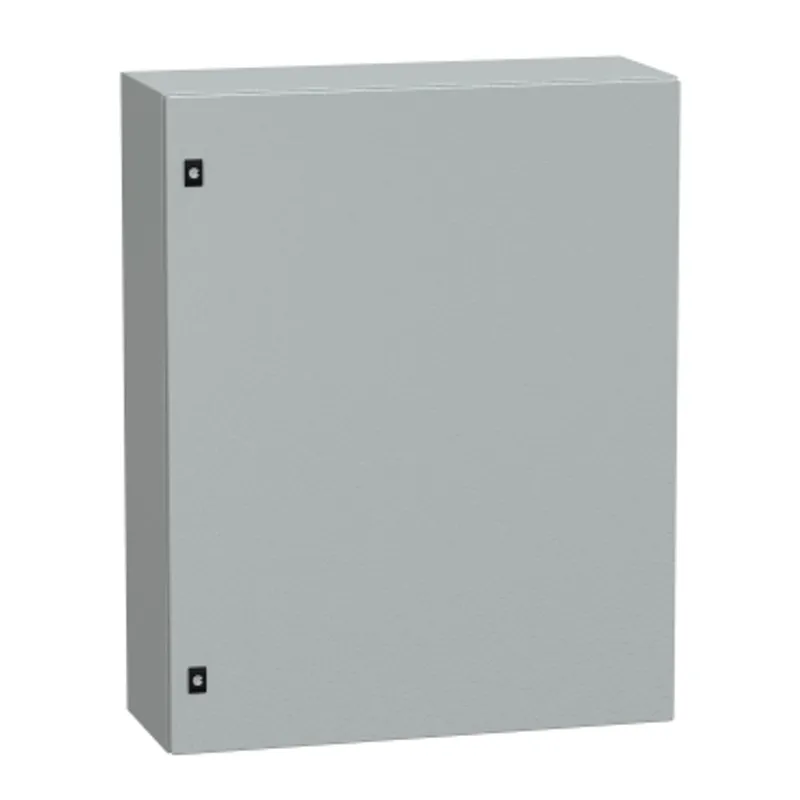

Schneider Electric NSYCRN108300P

PanelSeT CRN plain door with mount.plate. H1000xW800xD300 IP66 IK10 RAL7035..

MPN
NSYCRN108300P
Category
PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCRN108300P?

Spacial CRN steel wall-mounting enclosure is designed for multi-purpose applications in harsh environments It has a nominal height, width, and depth of 1000mm, 800mm, and 300mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish It consists of a body, a plain door with a 3mm double-bar lock, a mounting plate, and two cable gland plates (bottom) The door can be opened up to 120°, allowing easy access to the equipment inside The door, cable gland plates, and mounting plate can be removed for maintenance purposes The mounting plate is made from galvanised steel The net weight of the enclosure is 49kg It has an IK10 (IEC62262) rating and an IP66 rating (IEC60529) for high resistance to dust and water The variant particularity includes a back welded with double profile forming a protected sealed area and sides made from a single folded section This enclosure is certified by UL, cUL, and DNV-GL

Specifications

Specifications

RangePanelSeT
Product namePanelSeT CRN
ApplicationMulti-purpose
CategoryCompact enclosure
Enclosure nominal height1000 mm
Enclosure nominal width800 mm
Enclosure nominal depth300 mm
Installation accessory typeWall-mounting
Device composition1 body, 1 door with lock, 1 mounting plate, 2 cable gland plate: bottom
Door typePlain
Mounting plate descriptionPlain
body typeBack welded with double profile forming a protected sealed area, Sides made from a single folded section
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 mm double-bar lock
Type of gland plateStandard
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws, Mounting plate by fixing element
MaterialEnclosure: steel, Mounting plate: galvanised steel
Surface finishEnclosure: epoxy-polyester powder
ColourEnclosure: grey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationsUL, cUL, DNV-GL
Net weight49 kg
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK10 conforming to IEC 62262
CoverageCore product

Packaging

Package 11 PCE, 102.000 cm × 81.000 cm × 32.000 cm (L × W × H), 49.000 kg
Package 26 PAM, 120.000 cm × 100.000 cm × 174.000 cm (L × W × H), 312.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYCRN108300P: frequently asked questions

When can NSYCRN108300P be shipped?

NSYCRN108300P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYCRN108300P in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYCRN108300P and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRN108300P, subject to availability and destination.

More Schneider Electric parts

Schneider Electric NSYCRN108250 – PanelSeT CRN plain door w/o mount.plate. H1000xW800xD250 IP66 IK10 RAL7035..
Schneider Electric
NSYCRN108250

PanelSeT CRN plain door w/o mount.plate. H1000xW800xD250 IP66 IK10 RAL7035..

Schneider Electric NSYCRN108250P – PanelSeT CRN plain door with mount.plate. H1000xW800xD250 IP66 IK10 RAL7035..
Schneider Electric
NSYCRN108250P

PanelSeT CRN plain door with mount.plate. H1000xW800xD250 IP66 IK10 RAL7035..

Schneider Electric NSYCRN108250T – PanelSeT CRN tspt door w/o mount.plate. H1000xW800xD250 IP66 IK08 RAL7035..
Schneider Electric
NSYCRN108250T

PanelSeT CRN tspt door w/o mount.plate. H1000xW800xD250 IP66 IK08 RAL7035..

Schneider Electric NSYCRN108300 – PanelSeT CRN plain door w/o mount.plate. H1000xW800xD300 IP66 IK10 RAL7035..
Schneider Electric
NSYCRN108300

PanelSeT CRN plain door w/o mount.plate. H1000xW800xD300 IP66 IK10 RAL7035..

Schneider Electric NSYCRN108300T – PanelSeT CRN tspt door w/o mount.plate. H1000xW800xD300 IP66 IK08 RAL7035..
Schneider Electric
NSYCRN108300T

PanelSeT CRN tspt door w/o mount.plate. H1000xW800xD300 IP66 IK08 RAL7035..

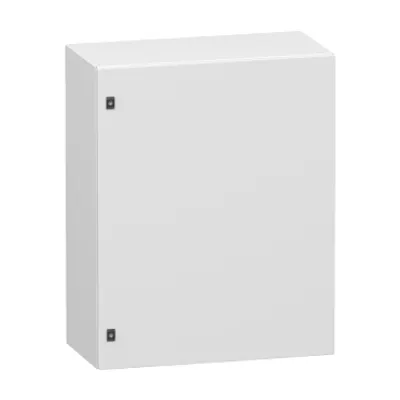

Schneider Electric NSYCRN108400 – Plain steel door, PanelSeT CRN, without mounting plate, 1000x800x400mm, IP66, IK10, RAL7035
Schneider Electric
NSYCRN108400

Plain steel door, PanelSeT CRN, without mounting plate, 1000x800x400mm, IP66, IK10, RAL7035

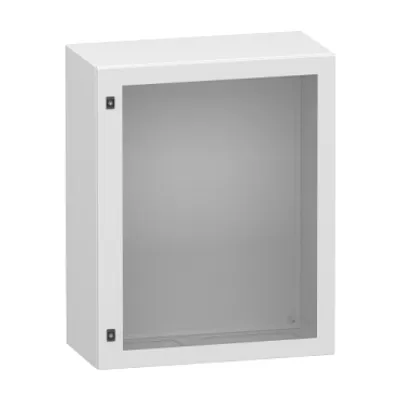

Schneider Electric NSYCRN108400T – Glazed steel door, PanelSeT CRN, without mounting plate, 1000x800x400mm, IP66, IK08, RAL7035
