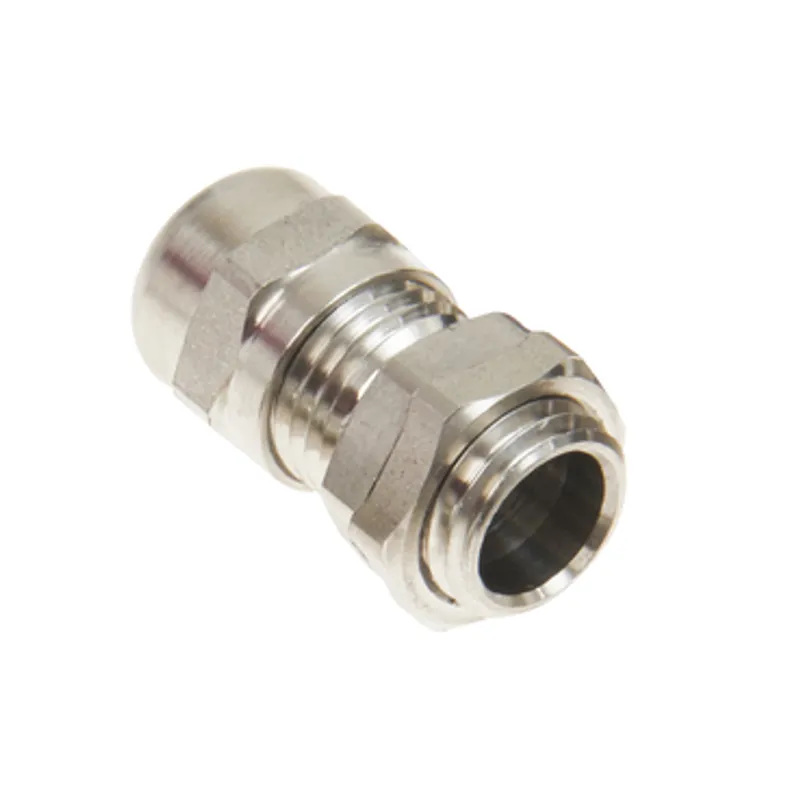

Schneider Electric NSYCGX32

Set of cable gland + nut stainless steel M32 AISI304L, IP68, UL approved

MPN
NSYCGX32
EAN
3606481360250
Category
PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCGX32?

Cable gland for PanelSeT CRN, PanelSeT S3D and PanelSeT S3X enclosures The product is made of CR (chloroprene) seal and stainless steel AISI 304L body The height is 41,5mm This gland has a thread size of M32 and allows you to mount a cable into a pre-drilled hole The set contains 1 cable gland, 1 lock nut and 1 seal The cable gland is to be mounted on enclosure top and enclosure bottom Ingress protection rating is IP68, ensuring the level of cable protection when using in harsh environments Flame resistance V2 conforming to UL 94 Ambient air temperature for operation -20-100 °C permanent and -40-150 °C intermittent Conforms with VDE certification

Specifications

Specifications

RangePanelSeT
Product or component typeCable gland
Accessory / separate part categoryCable management accessory
Range compatibilityPanelSeT CRN, PanelSeT S3D, PanelSeT S3X
Mounting locationEnclosure top, Enclosure bottom
Cable entryCable gland M32
Device composition1 cable gland, 1 lock nut, 1 seal
Quantity per setSet of 2
MaterialSeal: CR (chloroprene), Body: stainless steel AISI 304L
ColourGrey
Fixing modeScrewed, By nut
Height41.5 mm
Net weight0.078 kg
Product certificationsVDE
Flame retardanceV2 conforming to UL 94
Ambient air temperature for operation-20…100 °C permanent, -40…150 °C intermittent
IP degree of protectionIP68 conforming to IEC 60529 5 bar, 30 min

Packaging

Package 11 PCE, 4.000 cm × 3.700 cm × 3.700 cm (L × W × H), 90.000 g
Package 210 CAR, 40.000 cm × 28.500 cm × 11.000 cm (L × W × H), 1.288 kg
Package 3400 P12, 120.000 cm × 80.000 cm × 80.000 cm (L × W × H), 66.500 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYCGX32: frequently asked questions

When can NSYCGX32 be shipped?

NSYCGX32 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYCGX32 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYCGX32 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCGX32, subject to availability and destination.
